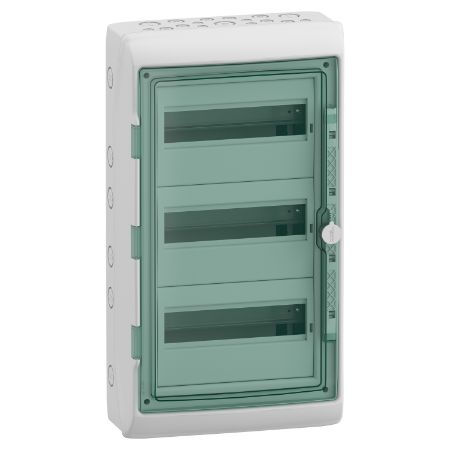

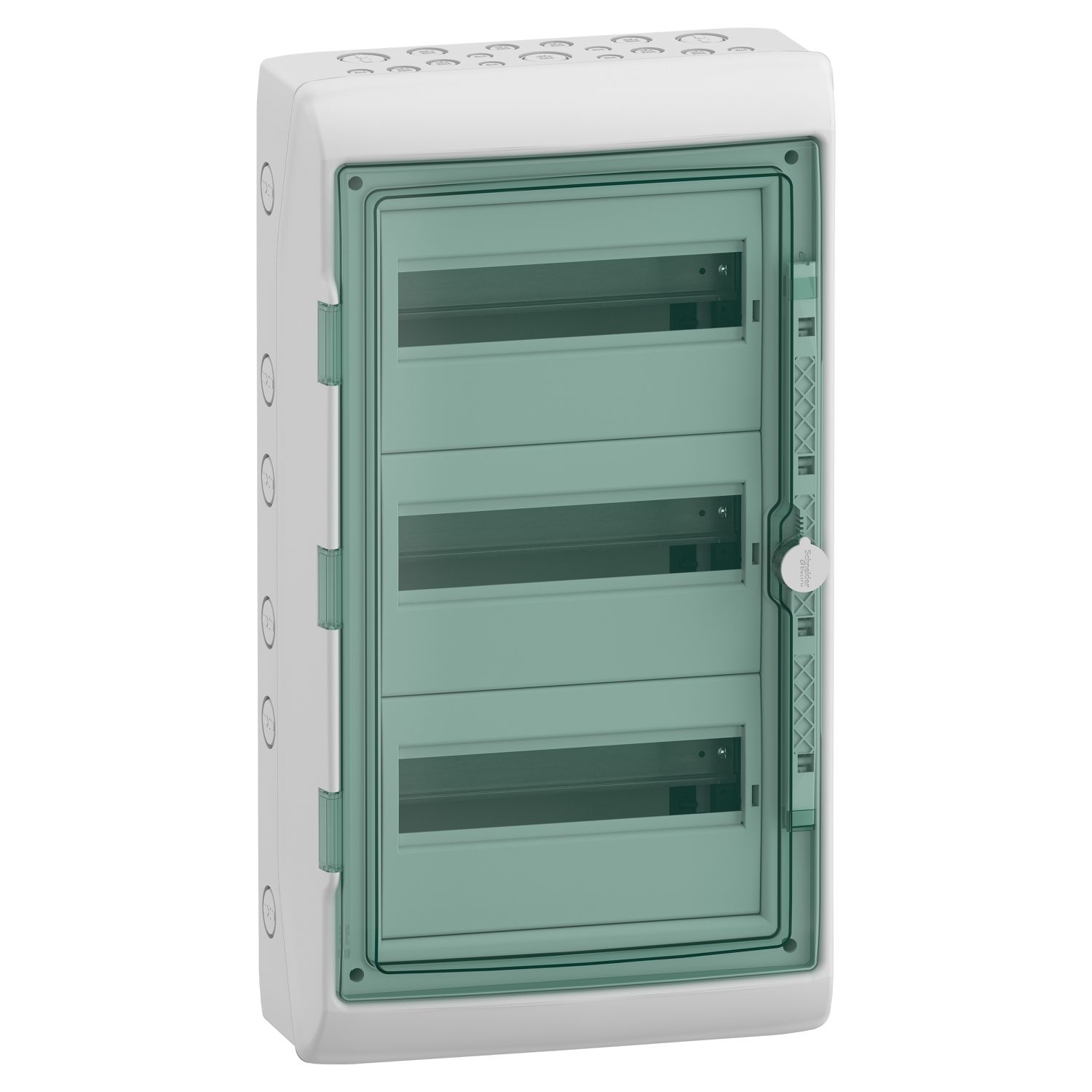

Picture of Enclosure for modular device, Mureva Enclosure, 3x12 modules, earth terminal block
SKU:

13985

Enclosure for modular device, Mureva Enclosure, 3x12 modules, earth terminal block

$322.78
Product Selector
Enclosure for modular device, Mureva Enclosure, 3x12 modules, earth terminal block
  • Ease and flexibility of installation
  • Indoor and outdoor use
  • High robustness
  • Scalability without constraint
  • Attractive design with modern rounded shape ensuring visibility and inspection of device
  • Green plastic material
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Technical illustration
Catalogue
Product environmental
Product Page Link
Product Data Sheet
This Kaedra weatherproof enclosure is a surface mounted enclosure for modular device. It is composed of 3 rows of 12 modules of 18mm. It can accomodate all types of modular switchgear. The IP degree of protection is IP65. This enclosure is dedicated to indoor or outdoor waterproof installation. It is provided with a transparent green door. The colour of the enclosure is light grey (RAL 7035). It is intended for installation in residential, small buildings and industry. The cables can enter by the top or the bottom of the enclosure via 17 pre-cutouts. It is equipped with a back plate and a front cover with notch. It is provided with DIN rail. It comes with 1 terminal block with 4 outgoers and 1 with 32 outgoers for a total of 36 outgoers (18x10mm² + 18x16mm²). A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 46W. The In rated current is up to 125A. This product complies with IEC 61439-3 standard. The dimensions are (W) 340mm x (H) 610mm x (D) 160mm. The material is a self-extinguishing polymer material. Its resistance to flames and to abnormal heat is 650°C as per IEC 60695-2-1. It is ultraviolet resistant. The IK degree of protection is IK09. The operating temperature is -25°C to 60°C.

Products specifications

Attribute nameAttribute value
Main
RangeMureva
Enclosure typeenclosure for modular device
Mounting plate descriptionslotted
Product nameMureva Enclosure
Product or component typeweatherproof enclosure
Complementary
Width340 mm
Enclosure mountingsurface
Depth160 mm
Locking options descriptionoptional keylock
Targeted countrySpain
Market segmentresidential, small commercial
Distribution block outgoers16 x 16 mm² + 16 x 10 mm²
Type of railDIN
Provided equipment1 terminal block support, 1 terminal block 32 holes, 3 wiring strap, 3 marking kit
9 mm pitches24
Number of horizontal rows3
Colourenclosure: light grey (RAL 7035), door: transparent green
Enclosure materialself-extinguishing polymer
Number of 18 mm modules per row12
Power dissipation in W46 W
Electrical insulation classclass II, double insulation
Type of front coverreversible, transparent
Internal depth88 mm
Height610 mm
Number of pre-cutouts PG ISO17
Total number of 18 mm modules36
[In] rated current125 A
Number of terminal blocks1 earth (screw connection) with 32 outgoers
Environment
Fire resistance650 °C conforming to IEC 60695-2-1
Overvoltage categoryII
Environmental characteristicultraviolet degradation test conforming to ISO 4892-2:2013, UV resistant: class 3 conforming to ISO 4582:2010
IP degree of protectionIP65 conforming to IEC 60529
Ambient air temperature for operation-25-60 °C
IK degree of protectionIK09 conforming to EN 50102
StandardsIEC 60670, EN 50262, IEC 60695-2-1, IEC 61439-3
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height16.800 cm
Package 1 Width35.500 cm
Package 1 Length62.000 cm
Package 1 Weight4.375 kg
Unit Type of Package 22
Number of Units in Package 222
Package 2 Height116.000 cm
Package 2 Width80.000 cm
Package 2 Length120.000 cm
Package 2 Weight108.250 kg

Related products

Picture of distribution terminal block - 80 A - 32 holes

distribution terminal block - 80 A - 32 holes

13579
$75.83
View Detail

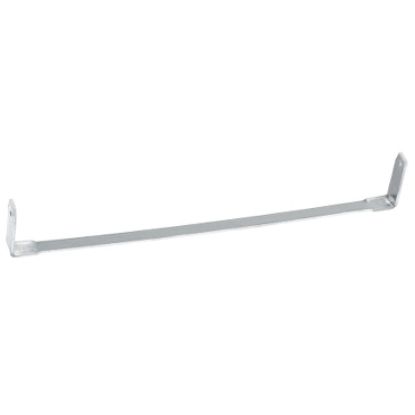

Picture of terminal block support - 12 modules - inclined

terminal block support - 12 modules - inclined

13597
$18.74
View Detail

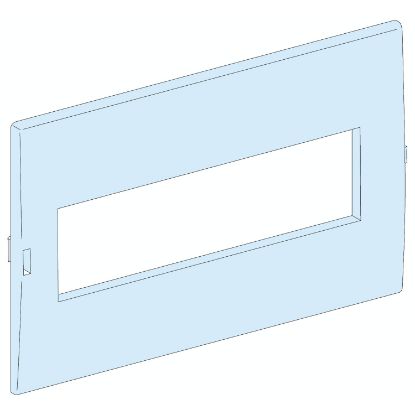

Picture of front plate - 12 modules - for Kaedra
