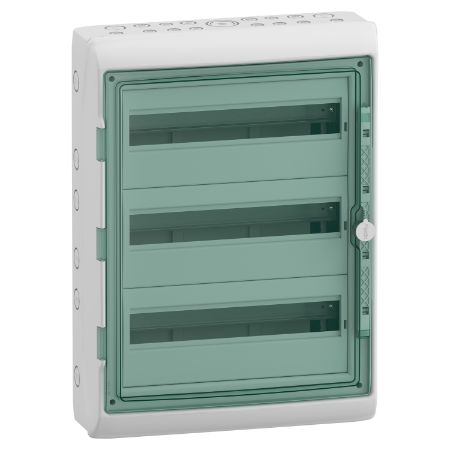

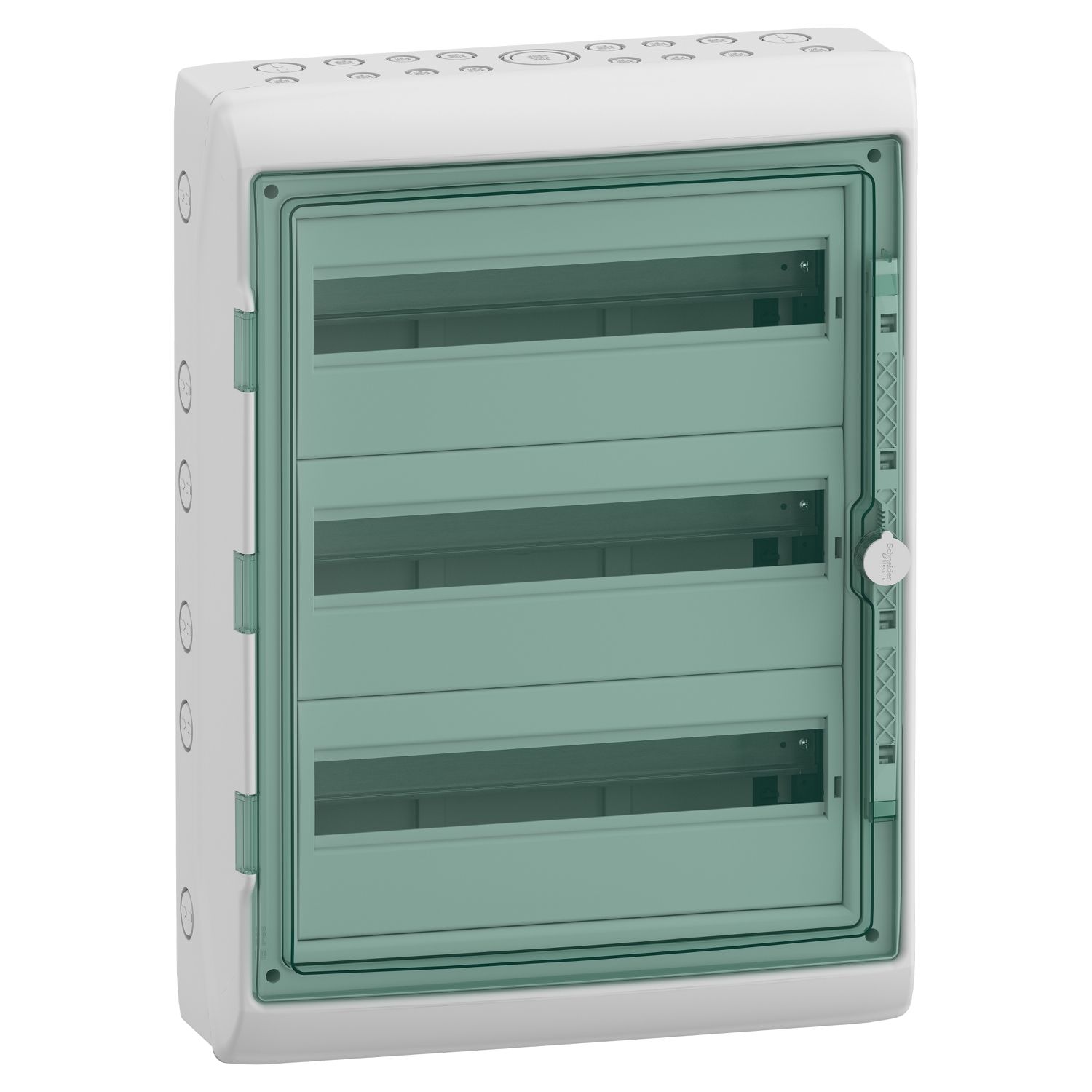

Picture of Enclosure for modular device, Mureva Enclosure, 3x18 modules, earth terminal blocks
SKU:

13986

Enclosure for modular device, Mureva Enclosure, 3x18 modules, earth terminal blocks

$460.13 INC GST
Available for Shipping : 11-Feb-2025
Product Selector
Enclosure for modular device, Mureva Enclosure, 3x18 modules, earth terminal blocks
  • Ease and flexibility of installation
  • Indoor and outdoor use
  • High robustness
  • Scalability without constraint
  • Attractive design with modern rounded shape ensuring visibility and inspection of device
  • Green plastic material
Be the first to review this product
Manufacturer: Schneider Electric
Technical illustration
Catalogue
Product environmental
Product Page Link
Product Data Sheet
This Kaedra weatherproof enclosure is a surface mounted enclosure for modular device. It is composed of 3 rows of 18 modules of 18mm. It can accomodate all types of modular switchgear. The IP degree of protection is IP65. This enclosure is dedicated to indoor or outdoor waterproof installation. It is provided with a transparent green door. The colour of the enclosure is light grey (RAL 7035). It is intended for installation in residential, small buildings and industry. The cables can enter by the top or the bottom of the enclosure via 17 pre-cutouts. It is equipped with a back plate and a front cover with notch. It is provided with DIN rail. It comes with 1 terminal block with 4 outgoers and 2 with 11 outgoers for a total of 36 outgoers (13x10mm² + 13x16mm²). A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 65W. The In rated current is up to 125A. This product complies with IEC 61439-3 standard. The dimensions are (W) 448mm x (H) 610mm x (D) 160mm. The material is a self-extinguishing polymer material. Its resistance to flames and to abnormal heat is 650°C as per IEC 60695-2-1. It is ultraviolet resistant. The IK degree of protection is IK09. The operating temperature is -25°C to 60°C.

Products specifications

Attribute name Attribute value
Main
Range Mureva
Enclosure type enclosure for modular device
Mounting plate description slotted
Product name Mureva Enclosure
Product or component type weatherproof enclosure
Complementary
Width 448 mm
Enclosure mounting surface
Depth 160 mm
Locking options description optional keylock
Targeted country Spain
Market segment small commercial, residential
Distribution block outgoers 8 x 16 mm² + 8 x 10 mm², 16 x 16 mm² + 16 x 10 mm²
Type of rail DIN
Provided equipment 2 terminal block support, 1 terminal block 32 holes, 1 terminal block 16 holes, 3 wiring strap, 3 marking kit
9 mm pitches 36
Number of horizontal rows 3
Colour enclosure: light grey (RAL 7035), door: transparent green
Enclosure material self-extinguishing polymer
Number of 18 mm modules per row 18
Power dissipation in W 65 W
Electrical insulation class class II, double insulation
Type of front cover transparent, reversible
Internal depth 88 mm
Height 610 mm
Number of pre-cutouts PG ISO 17
Total number of 18 mm modules 54
[In] rated current 125 A
Number of terminal blocks 1 earth (screw connection) with 32 outgoers, 1 earth (screw connection) with 16 outgoers
Environment
Fire resistance 650 °C conforming to IEC 60695-2-1
Overvoltage category II
Environmental characteristic ultraviolet degradation test conforming to ISO 4892-2:2013, UV resistant: class 3 conforming to ISO 4582:2010
IP degree of protection IP65 conforming to IEC 60529
Ambient air temperature for operation -25-60 °C
IK degree of protection IK09 conforming to EN 50102
Standards IEC 61439-3, IEC 60695-2-1, EN 50262, IEC 60670
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.000 cm
Package 1 Width 46.500 cm
Package 1 Length 62.000 cm
Package 1 Weight 5.705 kg
Unit Type of Package 2 2
Number of Units in Package 2 19
Package 2 Height 80.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 120.395 kg
