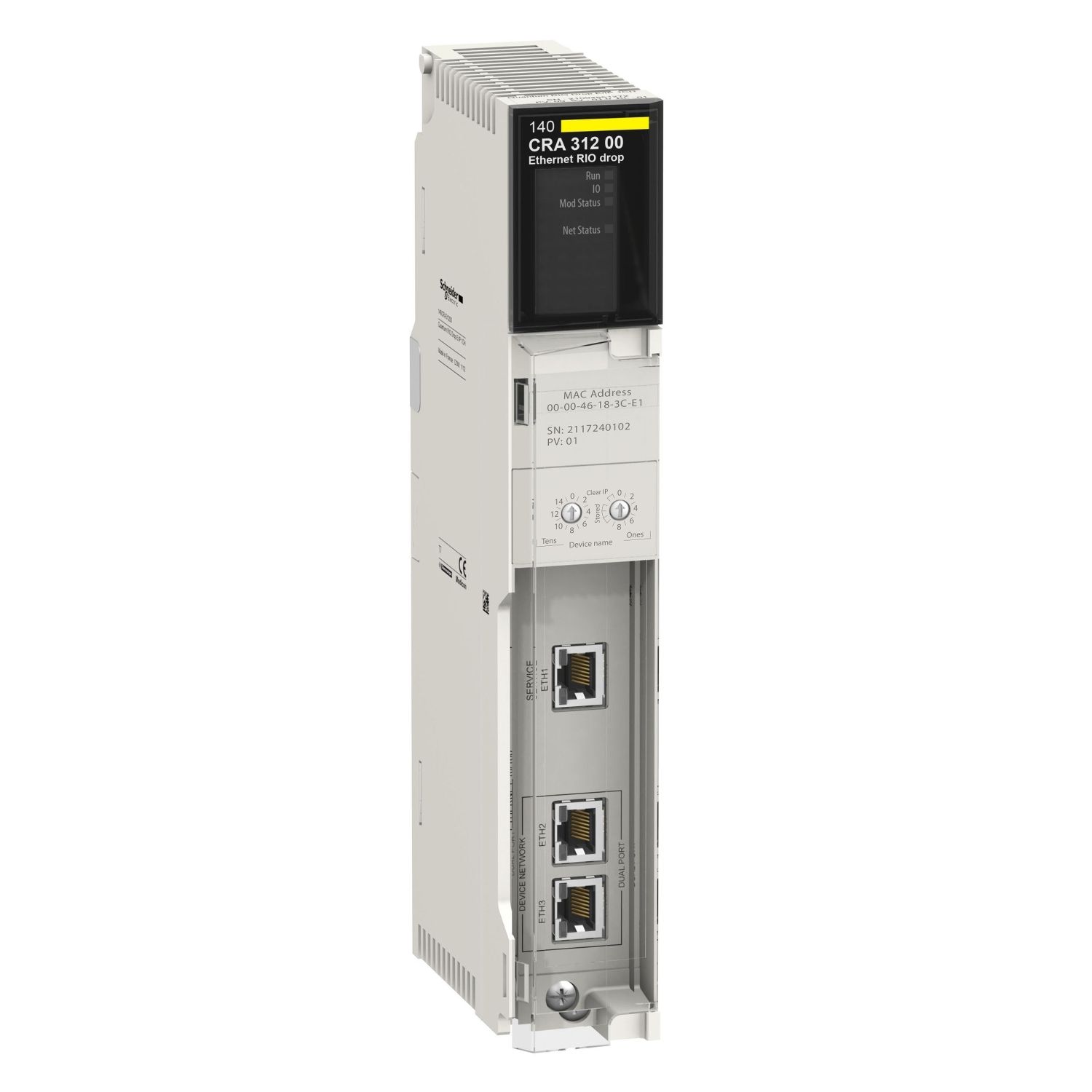

Picture of Quantum RIO Drop E/IP 1CH
SKU:

140CRA31200

Quantum RIO Drop E/IP 1CH

$6,370.94 INC GST
Availability: Please contact our sales team on 1300 724 622.
Quantum RIO Drop E/IP 1CH
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
User guide
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Number of port 3
Communication service output modules are updated with the data received from remote I/O head adaptor, the input data are collected and published to the remote I/O head adaptor
Range of product Modicon Quantum
Integrated connection type Ethernet IP/Modbus TCP for device network, Ethernet IP/Modbus TCP for service port
Communication port protocol Ethernet IP/Modbus TCP
Product or component type Ethernet RIO drop adaptor
Complementary
Product compatibility 140CRP31200
Topology daisy chain loop
Height 50 mm
Width 167 mm
Local signalling 1 LED (red) for I/O, 1 LED (green) for RUN, 1 LED (green/red) for network communication status (Net Status), 1 LED (green/red) for module status (Mod Status)
Net weight 0.554 kg
Environmental characteristic hazardous location class I division 2 conforming to EN/IEC 61131-1, standard environment
Environment
Relative humidity 93-93 % conforming to IEC 60068
Ambient air temperature for storage -40-85 °C conforming to IEC 60068-2-2, -40-85 °C conforming to IEC 60068-2-1
IP degree of protection IP20 conforming to IEC 60527, IP20 conforming to IEC 61131-2
Ambient air temperature for operation 0-60 °C conforming to IEC 60068-2-2, 0-60 °C conforming to IEC 60068-2-1
Operating altitude 2000 m
Maximum altitude transport 3000 m
Overvoltage category class I conforming to IEC 61131-2
Vibration resistance 1 gn constant acceleration (f= 8.4-150 Hz) conforming to IEC 61131-2, 3.5 mm constant amplitude (f= 0.5-8.4 Hz) conforming to IEC 61131-2
Standards IEC 61000-4-16, CSA C22.2 No 142, IEC 55011
Product certifications C-Tick, UL 508, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.900 cm
Package 1 Width 16.400 cm
Package 1 Length 31.300 cm
Package 1 Weight 593.000 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.650 kg
