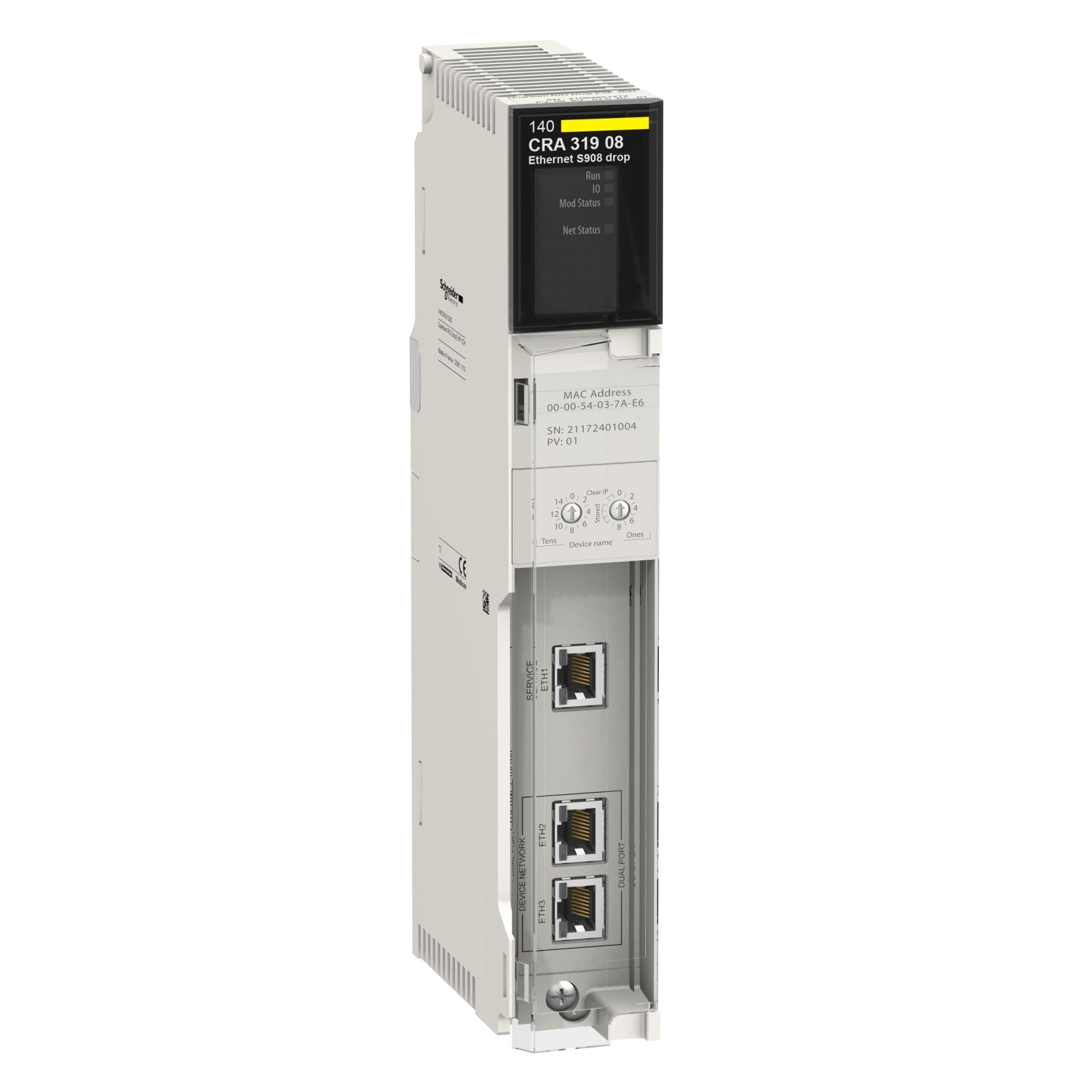

Picture of M580 Quantum S908 RIO Drop Adapter
SKU:

140CRA31908

M580 Quantum S908 RIO Drop Adapter

Please Contact Sales to buy this Product. click here
M580 Quantum S908 RIO Drop Adapter
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
User guide
Instruction sheet
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet

Products specifications

Attribute nameAttribute value
Main
Device applicationto provide the ability for a M580 system to control Modicon S908 coaxial bus
Number of port3
Communication serviceoutput modules are updated with the data received from remote I/O head adaptor, the input data are collected and published to the remote I/O head adaptor
Range of productModicon Quantum
Integrated connection typeEthernet IP/Modbus TCP for device network, Ethernet IP/Modbus TCP for service port
Communication port protocolEthernet IP/Modbus TCP
Product or component typeEthernet RIO drop adaptor
Product destinationModicon Quantum
Complementary
Product compatibilityBMEP584040, BMEH586040, BMEP585040, BMEH584040, BMEP586040
TopologyS908 bus, daisy chain loop
Height50 mm
Width167 mm
Local signalling1 LED (red) for I/O, 1 LED (green) for RUN, 1 LED (green/red) for network communication status (Net Status), 1 LED (green/red) for module status (Mod Status)
Net weight0.554 kg
Environmental characteristichazardous location class I division 2 conforming to EN/IEC 61131-1, standard environment
Environment
Relative humidity93-93 % conforming to IEC 60068
Ambient air temperature for storage-40-85 °C conforming to IEC 60068-2-2, -40-85 °C conforming to IEC 60068-2-1
IP degree of protectionIP20 conforming to IEC 60527, IP20 conforming to EN 61131-2
Ambient air temperature for operation0-60 °C conforming to IEC 60068-2-2, 0-60 °C conforming to IEC 60068-2-1
Operating altitude2000 m
Maximum altitude transport3000 m
Overvoltage categoryclass I conforming to EN 61131-2
Vibration resistance1 gn constant acceleration (f= 8.4-150 Hz) conforming to EN 61131-2, 3.5 mm constant amplitude (f= 0.5-8.4 Hz) conforming to EN 61131-2
StandardsEN 55011, CSA C22.2 No 142, IEC 61000-4-16
Product certificationsC-Tick, CE, UL 508
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.000 cm
Package 1 Width16.500 cm
Package 1 Length31.500 cm
Package 1 Weight592.000 g
Unit Type of Package 22
Number of Units in Package 27
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight4.590 kg
