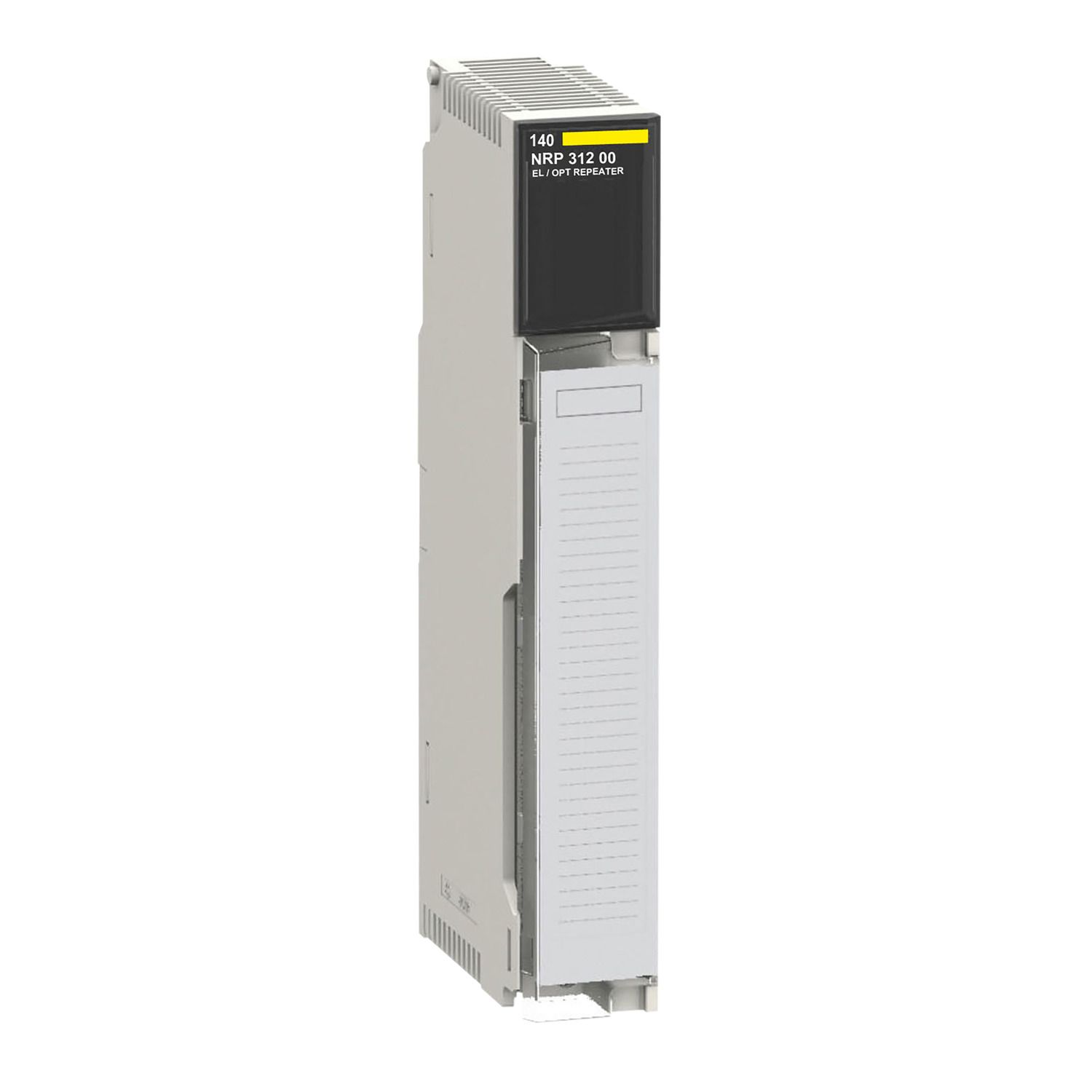

Picture of Ethernet fibre converter MM/LC 2CH - 100 MB
SKU:

140NRP31200

Ethernet fibre converter MM/LC 2CH - 100 MB

Please Contact Sales to buy this Product. click here
Ethernet fibre converter MM/LC 2CH - 100 MB
Be the first to review this product
Manufacturer: Schneider Electric
Availability: Please contact our sales team on 1300 724 622.
End of life manual
Declaration of conformity
Catalogue
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute nameAttribute value
Main
Optic fiber typemulti mode
Product or component typefibre converter
Range of productModicon Quantum automation platform
Complementary
Receiver sensitivity- 30 dBm
Number of port2 ETHERNET, connector type: RJ45, 2 fiber optic, connector type: LC
Inrush current1 A at 5 V DC
Depth103.85 mm
Width40.34 mm
Bus current requirement1000 mA
Detected silence-45 dBm
Power dissipation in W5 W
Wavelength1310 nm
Attenuation-20--14 dB (62.5/125 µm), -23.5--14 dB (50/125 µm)
Net weight0.554 kg
MaterialPC (polycarbonate)
Local signalling1 LED green with FX2 ACT marking for channel 2 communication status, 1 LED green with STS2 marking for channel 2 link status, 1 LED green with FX1 ACT marking for channel 1 communication status, 1 LED green with STS1 marking for channel 1 link status, 1 LED red with ERR marking for internal fault, module failure, 1 LED green with RDY marking for module status
MarkingCE
Rise/fall time3 ns
Optic distance between 2 transceivers3000 m (62.5/125 µm), optical power: -20--14 dBm, 2000 m (50/125 µm), optical power: -23.5--14 dBm
Height250 mm
Environment
Operating altitude0...2000 m
Ambient air temperature for storage-40-85 °C
Relative humidity0-95 %
StandardsUL 508, FM Class 1 Division 2, CSA C22.2 No 142
Ambient air temperature for operation0-60 °C
Product certificationsMerchant Navy, TÜV, C-Tick
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height16.3 cm
Package 1 Width4.5 cm
Package 1 Length31.2 cm
Package 1 Weight584.5 g
Unit Type of Package 22
Number of Units in Package 27
Package 2 Height30 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight4.592 kg
Unit Type of Package 33
Number of Units in Package 3168
Package 3 Height80 cm
Package 3 Width120 cm
Package 3 Length105 cm
Package 3 Weight119.208 kg
