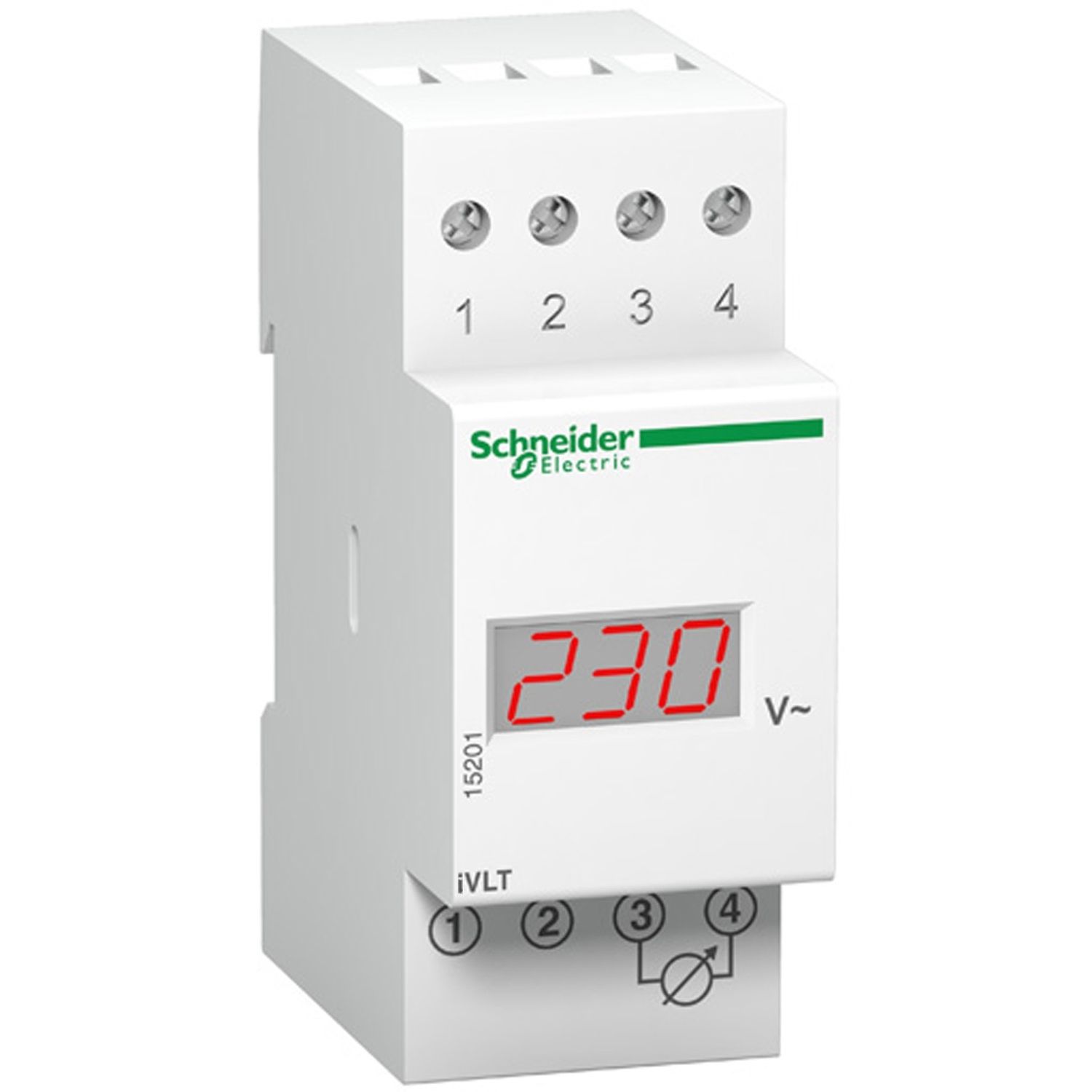

Picture of modular digital voltmeter iVLT - 230V - 0..600V
SKU:

15201

modular digital voltmeter iVLT - 230V - 0..600V

$690.11 INC GST
Available for Shipping : 17-Feb-2025
Product Selector
modular digital voltmeter iVLT - 230V - 0..600V
  • Direct reading of the voltage
  • Same design as the miniature circuit breaker for good integration in switchboard
  • Better readability thanks to red LED
  • To be installed by professional
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
This instrument is aimed to be installed in a panel board, on a DIN rail. Voltmeters measure the potential (voltage) difference of an electric circuit in volts. The LED display is composed by 3 digits and indicate voltage from 0 to 600V AC. 0.5% of measurement accuracy at full scale. Complient with standards IEC/EN 61010-1. The dimensions of the product are 36mm in width or 4 9mm modules, 87mm in heigh and 65mm in depth.

Products specifications

Attribute name Attribute value
Main
Device short name iVLT
Range Acti9
Product name Acti9 iVLT
Product or component type voltmeter
Network type AC 50/60 Hz
Range compatibility Prisma Prisma G door, Prisma Prisma P door
Mounting support DIN rail
Range of product Acti9
Scale 0-600 V
Complementary
[Us] rated supply voltage 230 AC at 50/60 Hz
Depth 65 mm
Market segment small commercial, residential
Width 36 mm
Compatibility code VLT
Power consumption in VA 0.3 VA
Connections - terminals tunnel type terminal 2 cable(s) 2.5-2.5 mm²
Type of measurement voltage
9 mm pitches 4
Height 87 mm
Environment
Standards IEC 61010-1, IEC 60051-1, IEC 61000-4
Ambient air temperature for operation -20-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.0 cm
Package 1 Width 8.0 cm
Package 1 Length 9.2 cm
Package 1 Weight 178.0 g
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.95 kg
