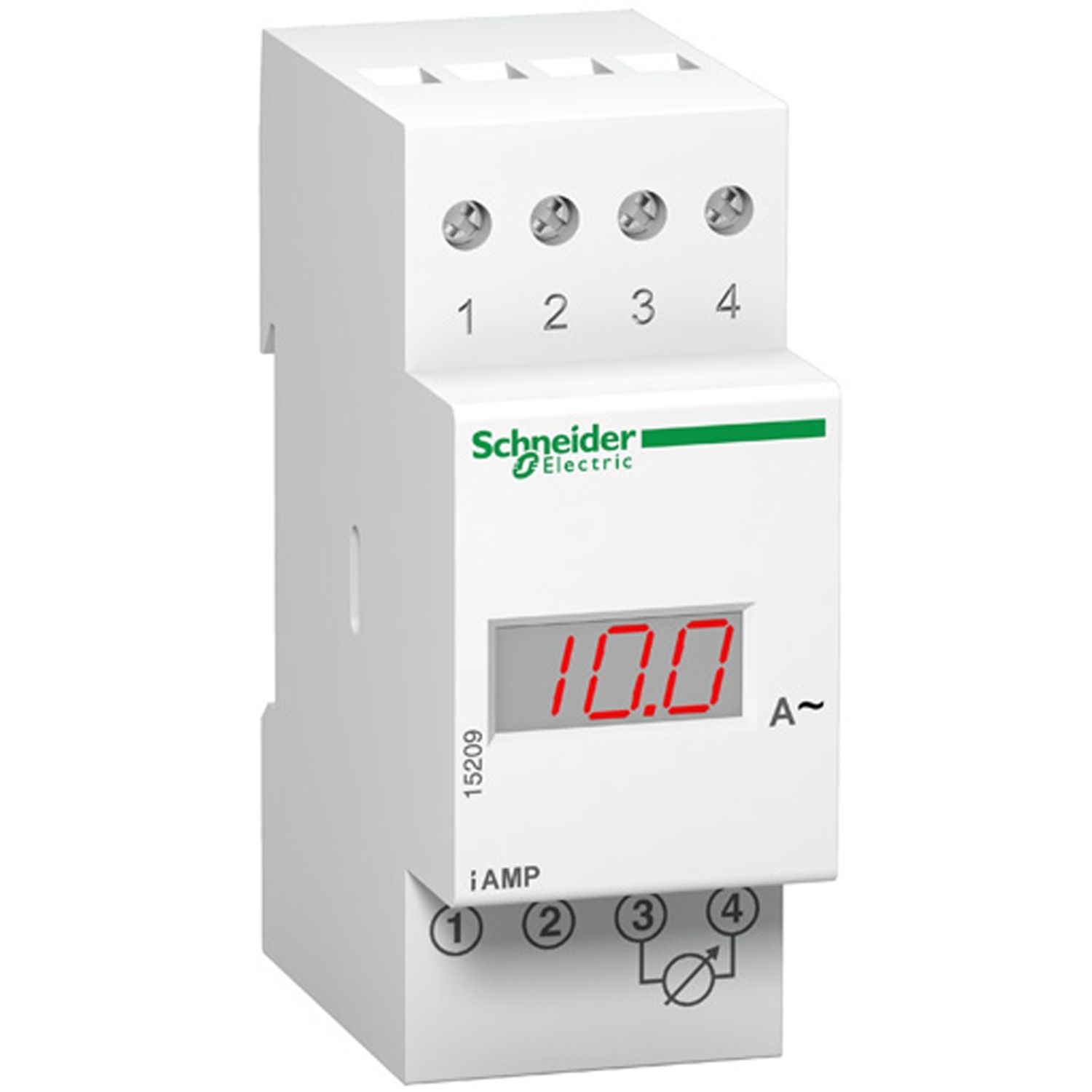

Picture of modular digital ammeter iAMP - 230V - 5..5000A
SKU:

15209

modular digital ammeter iAMP - 230V - 5..5000A

$596.15
Available for Shipping : 10-Dec-2024
Product Selector
modular digital ammeter iAMP - 230V - 5..5000A
  • CT rating configurable on the front face
  • Same design as the miniature circuit breaker for good integration in switchboard
  • Better readability thanks to red LED
  • To be installed by professional
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
This instrument is aimed to be installed in a panel board, on a DIN rail. Ammeters measure the current flowing through an electric circuit in amps. Current transformer rating can be configured on the front face of the ammeter. This digital device do not provide 5A current transformers, need to be ordered separately. The LED display is composed by 2 digits plus 1 digit for decimal, and indicate current from 5A to the transformer current rating, maximum 5,000A. 0.5% of measurement accuracy at full scale. Complient with standards IEC/EN 61010-1. The dimensions of the product are 36mm in width or 4 9mm modules, 87mm in heigh and 65mm in depth.

Products specifications

Attribute name Attribute value
Main
Device short name iAMP
Range Acti9
Product name Acti9 iAMP
Product or component type ammeter
Network type AC 50/60 Hz
Range compatibility Prisma Prisma G door, Prisma Prisma P door
Mounting support DIN rail
Range of product Acti9
Complementary
[Us] rated supply voltage 230 AC at 50/60 Hz
Depth 65 mm
Market segment residential, small commercial
Width 36 mm
Compatibility code AMP
Power consumption in VA 0.3 VA
Connections - terminals tunnel type terminal 2 cable(s) 2.5-2.5 mm²
Type of measurement current
9 mm pitches 4
Height 87 mm
Environment
Standards EN 50082-1, IEC 61010-1, EN 50081-1
Ambient air temperature for operation -20-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.0 cm
Package 1 Width 8.0 cm
Package 1 Length 9.2 cm
Package 1 Weight 180.0 g
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.836 kg
