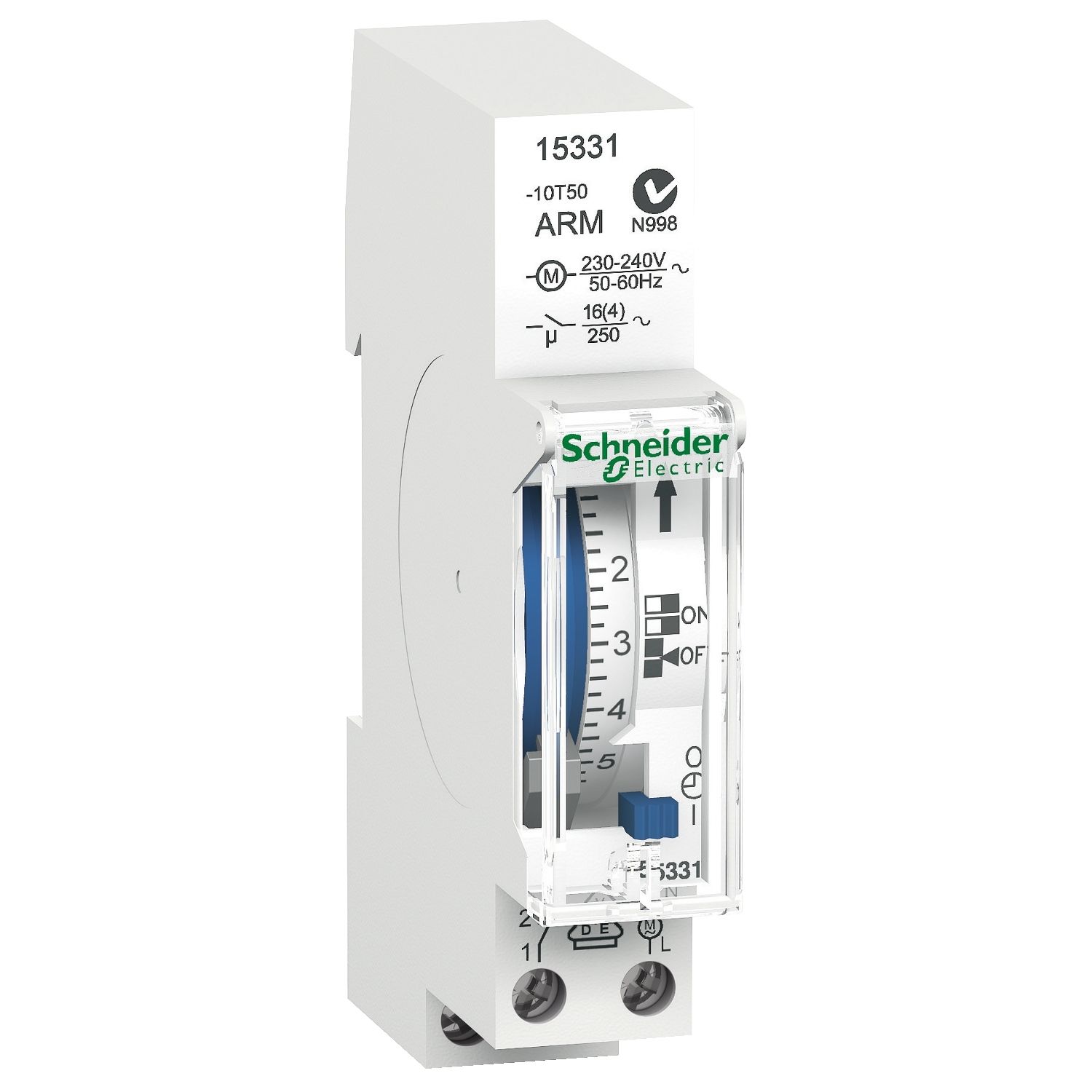

Picture of IH, Mechanical Time Switch, 7 Days, 100h Memory
SKU:

15331

IH, Mechanical Time Switch, 7 Days, 100h Memory

$171.50 INC GST
Available for Shipping : 20-May-2025
Product Selector
IH, Mechanical Time Switch, 7 Days, 100h Memory
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Brochure
Product environmental
User guide
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name IHH
Number of channels 1
Function available manual time changeover
Range Acti9
Range of product Acti9
Product name Acti9 IHH
Product or component type mechanical time switch
Complementary
Measurement accuracy +/- 1 s/day 20-20 °C
Device application building
Compatibility code IH
Battery life 10 year(s)
Maximum number of switchings 42 on - 42 off
Backup time 150 h time and program saving
Power consumption in W 0.5 W
Load type LED lamp > 2 W 300 W, LED lamp < 2 W 30 W, compact fluorescent lamp 150 W, fluocompact lamp 700 VA, 230 V AC incandescent lamp 1000 W, 230 V AC halogen lamp 1000 W, parallel-corrected fluorescent tube 2 x 100 W 18 µF, parallel-corrected fluorescent tube 7 x 40 W 7 µF, parallel-corrected fluorescent tube 5 x 58 W 4.7 µF
Maximum switching current 4 A - 250 V AC pf = 0.6 , 16 A - 250 V AC pf = 1
Height 90 mm
Minimum interval duration 2 h
Connections - terminals screw terminals
Depth 66 mm
Market segment residential, small commercial
Width 18 mm
Absence for holidays no
Updated by none
Function none
Net weight 0.101 kg
9 mm pitches 2
Time changeover manual
[Ue] rated operational voltage 230...240 V AC at 50...60 Hz
Mounting support DIN rail
Colour tint white (RAL 9003)
Cycle duration 7 days
Type of setting manual time changeover
Environment
IP degree of protection terminals: IP20 B
Ambient air temperature for operation -10-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.0 cm
Package 1 Width 7.0 cm
Package 1 Length 10.0 cm
Package 1 Weight 89.0 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.452 kg
