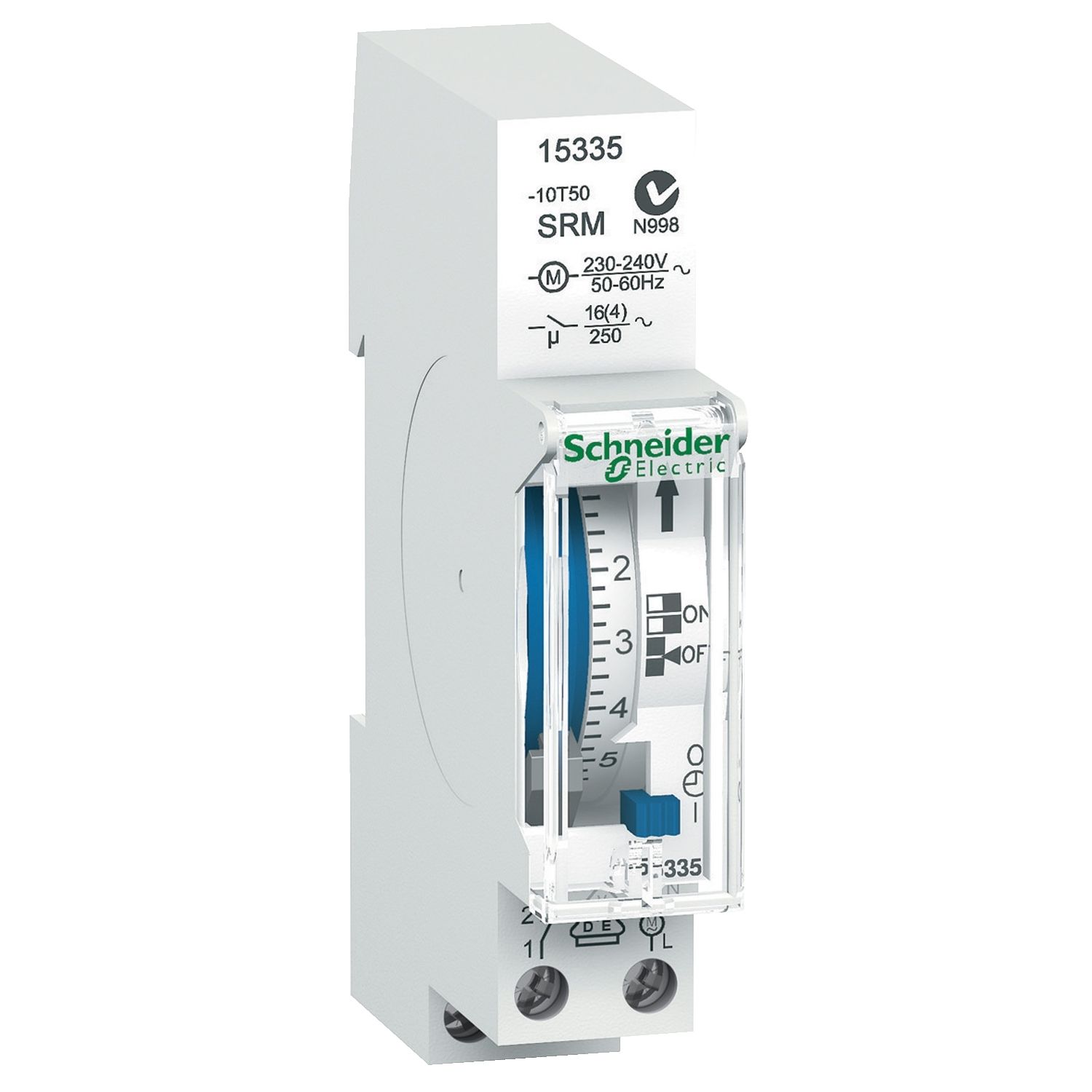

Picture of Acti9, IH, mechanical time switch, 24 h, without memory
SKU:

15335

Acti9, IH, mechanical time switch, 24 h, without memory

$104.62
Available for Shipping : 24-Nov-2024
Product Selector
Acti9, IH, mechanical time switch, 24 h, without memory
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Brochure
Product environmental
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
IH mechanical time switch Width of 18mm (2 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on daily level Swiching cycle is 24 h (daily) The minimum time between 2 switching operations is 15 minutes with the number of 48 On and 48 Off Manual override is possible 1 channel output

Products specifications

Attribute name Attribute value
Main
Device short name IH
Number of channels 1
Function available manual time changeover
Range Acti9
Range of product Acti9
Product name Acti9 IH
Product or component type mechanical time switch
Complementary
Measurement accuracy +/- 1 s/day 20-20 °C
Device application building
Compatibility code IH
Maximum number of switchings 48 on - 48 off
Power consumption in W 0.5 W
Load type LED lamp > 2 W 300 W, LED lamp < 2 W 30 W, compact fluorescent lamp 150 W, fluocompact lamp 700 VA, 230 V AC incandescent lamp 1000 W, 230 V AC halogen lamp 1000 W, parallel-corrected fluorescent tube 2 x 100 W 18 µF, parallel-corrected fluorescent tube 7 x 40 W 7 µF, parallel-corrected fluorescent tube 5 x 58 W 4.7 µF
Maximum switching current 4 A - 250 V AC pf = 0.6 , 16 A - 250 V AC pf = 1
Height 90 mm
Minimum interval duration 15 min
Connections - terminals screw terminals
Depth 66 mm
Market segment small commercial, residential
Width 18 mm
Absence for holidays no
Updated by none
Function none
Net weight 0.097 kg
9 mm pitches 2
Time changeover manual
[Ue] rated operational voltage 230 V AC at 50 Hz
Mounting support DIN rail
Colour tint white (RAL 9003)
Cycle duration 24 h
Type of setting manual time changeover
Environment
IP degree of protection terminals: IP20 B
Ambient air temperature for operation -25-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.100 cm
Package 1 Width 7.100 cm
Package 1 Length 9.900 cm
Package 1 Weight 82.0 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 8.695 kg
