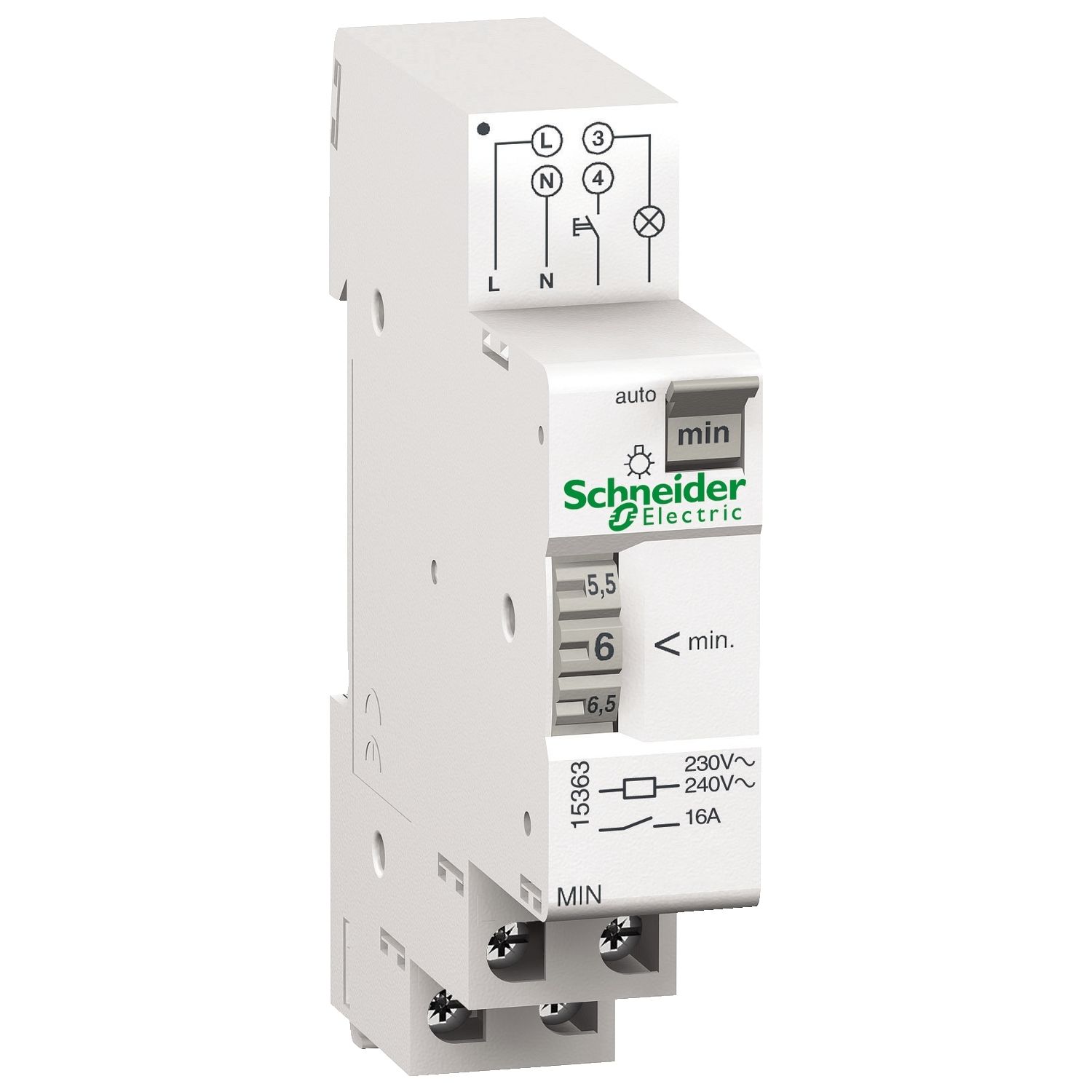

Picture of Acti9 - MIN - electromechanical timer - adjustable from 1 to 7 minutes
SKU:

15363

Acti9 - MIN - electromechanical timer - adjustable from 1 to 7 minutes

Old price: $563.20 INC GST
$332.79 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Acti9 - MIN - electromechanical timer - adjustable from 1 to 7 minutes
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Declaration of conformity
User guide
Product Page Link
Product Data Sheet
MIN electromechanical staircase timers Width of 18mm (2 modules of 9mm) Closing and then opening of a contact in a determined time Adjustable time delay 1 to 7 minutes Control circuit with connected standard, or luminous 230V push buttons Manual override is possible

Products specifications

Attribute name Attribute value
Main
Device short name MIN
Range Acti9
Range of product Acti9
Product name Acti9 MIN
Product or component type electromechanical timer
Colour tint white (RAL 9003)
Complementary
Device application building
Selection of the type of connection selector switch
Insulation shield no
Compatibility code MIN
Switch off warning no
Time delay adjustable from 1 to 7 minutes
Connections - terminals screw terminals - <= 6 mm²
Load type LED lamp > 2 W 300 W, LED lamp < 2 W 30 W, compact fluorescent lamp 7 x 20 W, compact fluorescent lamp 10 x 15 W, compact fluorescent lamp 13 x 11 W, compact fluorescent lamp 21 x 7 W, fluocompact lamp 2300 VA, 230 V AC incandescent lamp 2300 W, 230 V AC halogen lamp 2300 W, parallel-corrected fluorescent tube 3.0 x 100 W 18 µF, parallel-corrected fluorescent tube 10 x 58 W 7 µF, parallel-corrected fluorescent tube 14 x 40 W 4.7 µF
Maximum switching current 16 A - 230 V AC pf = 1
Height 83 mm
Depth 68 mm
Market segment small commercial
Width 18 mm
Power consumption in VA 1 VA
Additional function none
Net weight 84 g
9 mm pitches 2
[Ue] rated operational voltage 230 V AC at 50 Hz
Mounting support DIN rail
Environment
IP degree of protection IP20 B
Ambient air temperature for operation -10-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2 cm
Package 1 Width 7 cm
Package 1 Length 9.9 cm
Package 1 Weight 82 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 7.5 cm
Package 2 Width 10.5 cm
Package 2 Length 22 cm
Package 2 Weight 865 g
Unit Type of Package 3 3
Number of Units in Package 3 110
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 10.033 kg
Unit Type of Package 4 4
Number of Units in Package 4 880
Package 4 Height 45 cm
Package 4 Width 80 cm
Package 4 Length 120 cm
Package 4 Weight 88 kg
