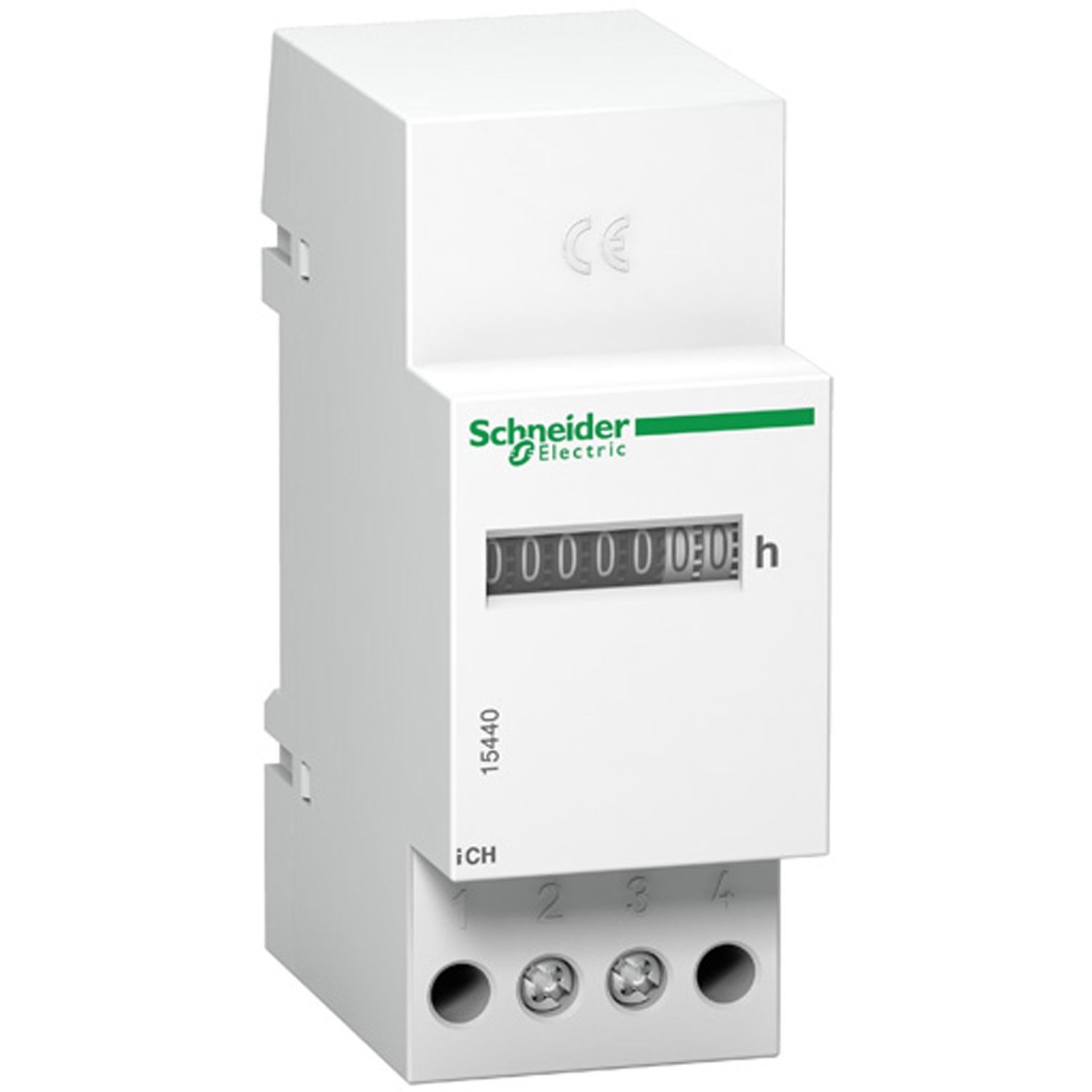

Picture of modular hour counter iCH - 230V
SKU:

15440

modular hour counter iCH - 230V

$247.96
Available for Shipping : 24-Nov-2024
Product Selector
modular hour counter iCH - 230V
  • Counter used to decide when to carry out maintenance
  • Count operating hours of a piece of electrical equipment
  • Give indication of operating machine time
  • Electromecanical display up to 100K hours
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet
This instrument is aimed to be installed in a panel board, on a DIN rail. The electromechanical counter that counts the operating hours of a machine or piece of electrical equipment. Giving a precise indication of operating time, the counter is used to decide when to carry out preventive maintenance. The electromechanical display is composed by 5 digits plus 2 for decimals, and indicate operating time up to 99,999.99 hours. This instrument do not have a reset button. The dimensions of the product are 36mm in width or 4 9mm modules, 87mm in heigh and 65mm in depth.

Products specifications

Attribute name Attribute value
Main
Device short name iCH
Range Acti9
Product name Acti9 iCH
Display type electromechanical 7 digit(s), number of decimal = 2
Product or component type hour counter
Type of measurement operating time
Range compatibility Prisma Prisma G door, Prisma Prisma P door
Maximum value measured 99999.99 h
Range of product Acti9
Complementary
[Us] rated supply voltage 230 V AC at 50 Hz
Full scale display 99999,99
Market segment residential, small commercial
Compatibility code CH
Mounting mode fixed
Power consumption in VA 0.15 VA
Mounting support DIN rail
Reset without
Display accuracy 0.0001
Environment
Depth 67 mm
Width 36 mm
IP degree of protection front face: IP65
9 mm pitches 4
Height 90 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.6 cm
Package 1 Width 4.0 cm
Package 1 Length 9.0 cm
Package 1 Weight 94.0 g
Unit Type of Package 2 2
Number of Units in Package 2 72
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 7.141 kg
