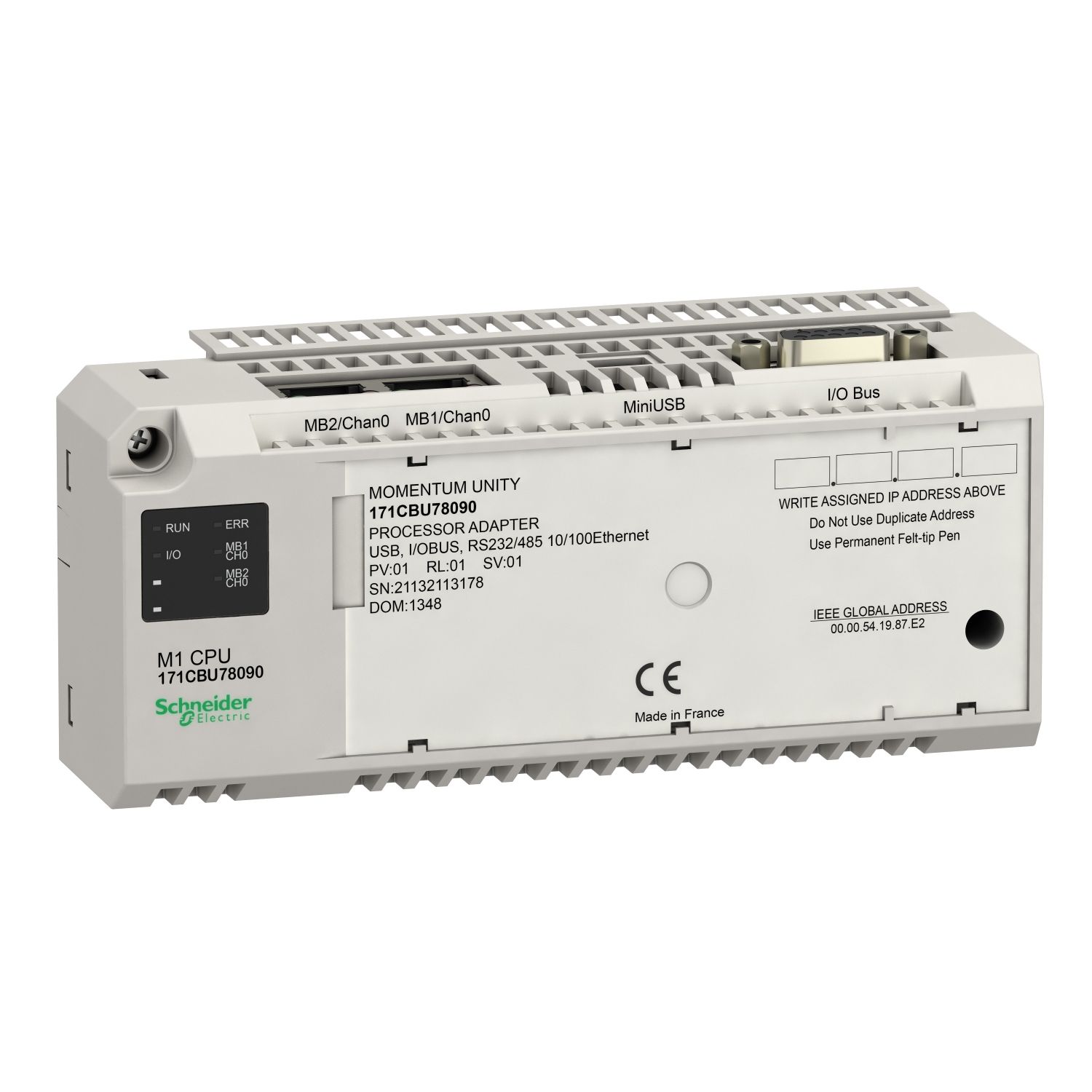

Unity M1 processor - RS232/485 - USB - I/O bus

$4,856.60 INC GST
Available for Shipping : 20-May-2025
Unity M1 processor - RS232/485 - USB - I/O bus
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Declaration of conformity
Catalogue
End of life manual
Product Page Link
Product Data Sheet
This processor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This Unity M1 processor is equipped with USB integrated connection port. The Spear 320s processor offers 125 words Modbus messaging and 200 I/O message per second. The processor is accessible through master/slave method. This processor provides web services like CPU status, home pages and properties. It is an IP20 rated product. Its dimensions are 144mm (width) x 53.47mm (depth) x 60.6mm (height). It weighs 0.159kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM, C-Tick. It meets UL 508, CSA C22.2 No 142 and EN/IEC 61131-2 standards. It supports 35mm symmetrical DIN rail mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon Momentum automation platform
Product or component type processor
Integrated connection type USB port
Complementary
Exact time for 1 Kinstruction 83 ns
Memory description program memory LL984 3584 kB, program memory IEC 3584 kB
Web services CPU status, properties, home pages
Module format standard
Product mounting 35 mm symmetrical DIN rail
Method of access master/slave
Addressing 1...247 Modbus
Number of devices 32 Modbus
Supply voltage limits 4.75-5.25 V
Processor name Spear 320s
Concept Transparent Ready class B
Control parameter CRC-16 for Modbus
Clock frequency 333 MHz
Marking CE
Communication port protocol Modbus RS485/RS232 - 1 RJ45 19200 bps - 2-wire
Topology multidrop Modbus
Height 60.6 mm
Word length 32 bit
Depth 53.47 mm
Width 144 mm
Register words 26048
Local signalling 1 LED (yellow) for channel 1 operating (CH1), 1 LED (yellow) for channel 0 operating (CH0), 1 LED (red) for I/O module fault (I/O), 1 LED (red) for processor or system fault (ERR), 1 LED (green) for processor running (RUN)
Fail state safe I/O mode
Software designation Unity Pro
Communication service Modbus messaging 100 words, 200 I/O message per second
Net weight 0.159 kg
Current consumption 500 mA at 5 V DC
I/O limit processor capacity 2048 inputs/2048 outputs
Environment
Resistance to electrostatic discharge 8 kV on air conforming to EN/IEC 61000-4-2, 6 kV contact conforming to IACS E10, 6 kV contact conforming to EN/IEC 61131-2 zone B
Ambient air temperature for storage -40-85 °C
Relative humidity 5-96 %
IP degree of protection IP20
Resistance to electromagnetic fields 15 V/m 80...2700 MHz conforming to EN/IEC 61000-4-3
Ambient air temperature for operation 0-60 °C
Dielectric strength 5000 V for 1 minute RS485, 0 V not isolated RS485/RS232
Operating altitude <= 2000 m
Material lexan
Shock resistance 15 gn during 11 ms sinusoidal vibrations
Standards UL 508, CSA C22.2 No 142, EN/IEC 61131-2
Product certifications FM, C-Tick
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.500 cm
Package 1 Width 11.100 cm
Package 1 Length 20.500 cm
Package 1 Weight 236.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.374 kg
