SKU:

171CBU98090

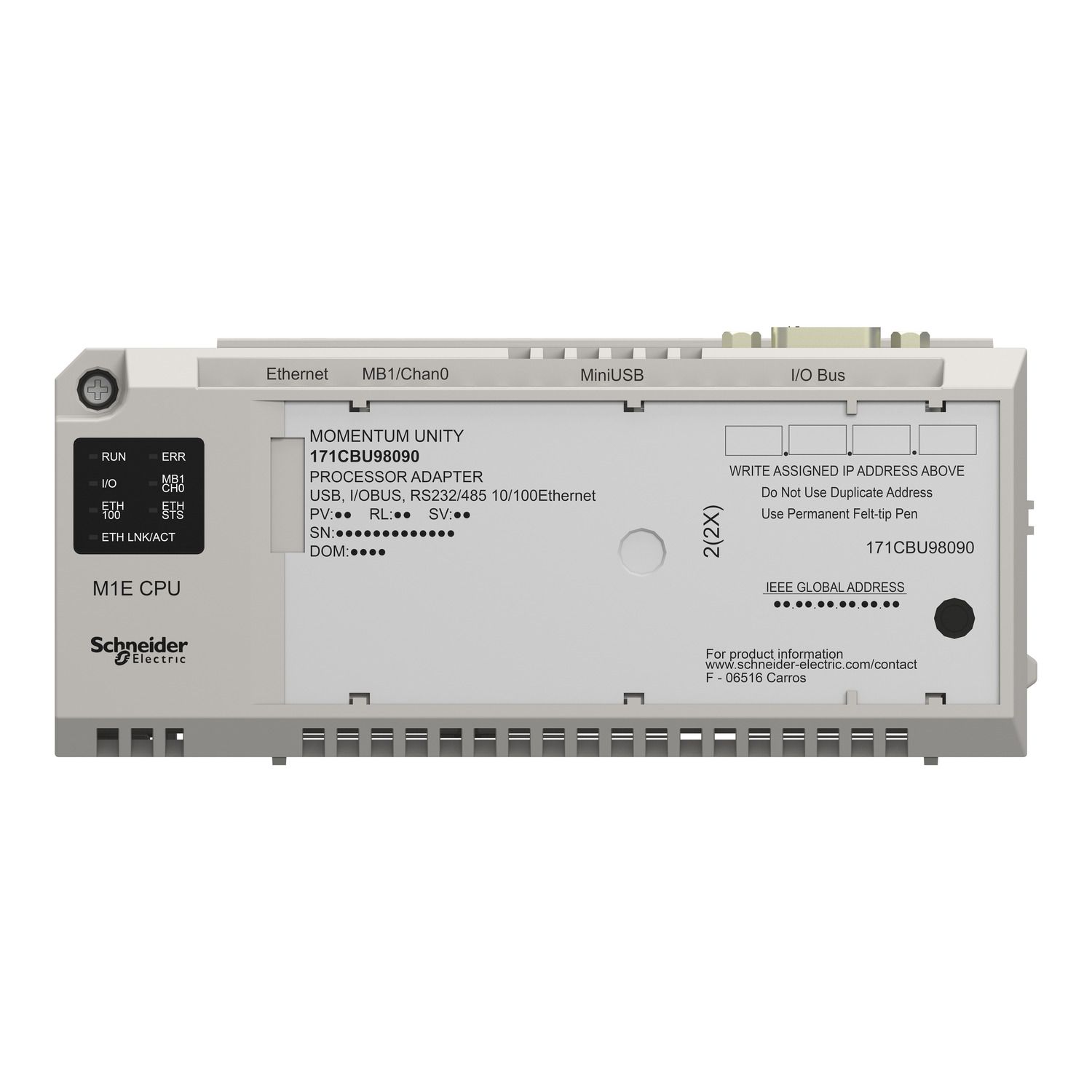

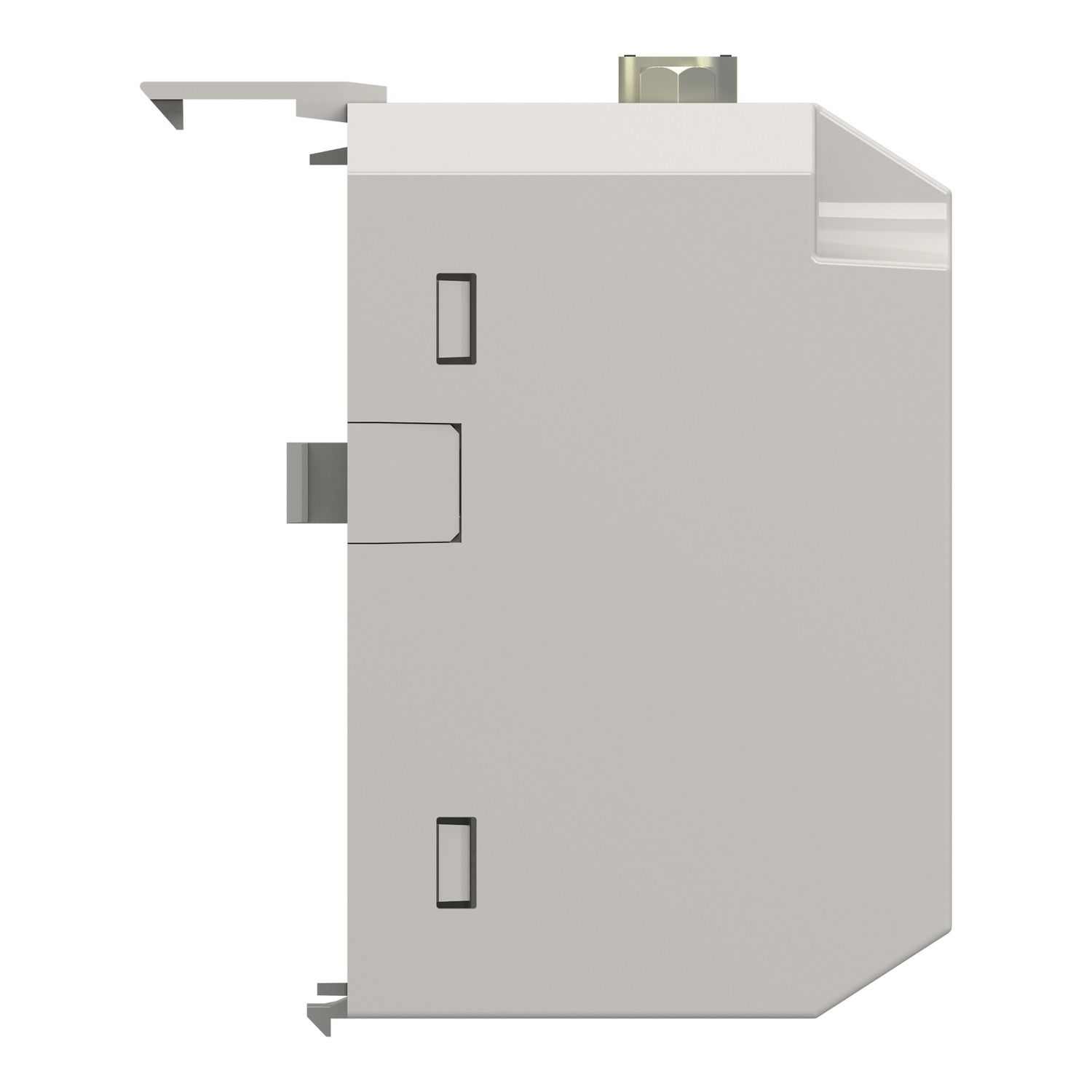

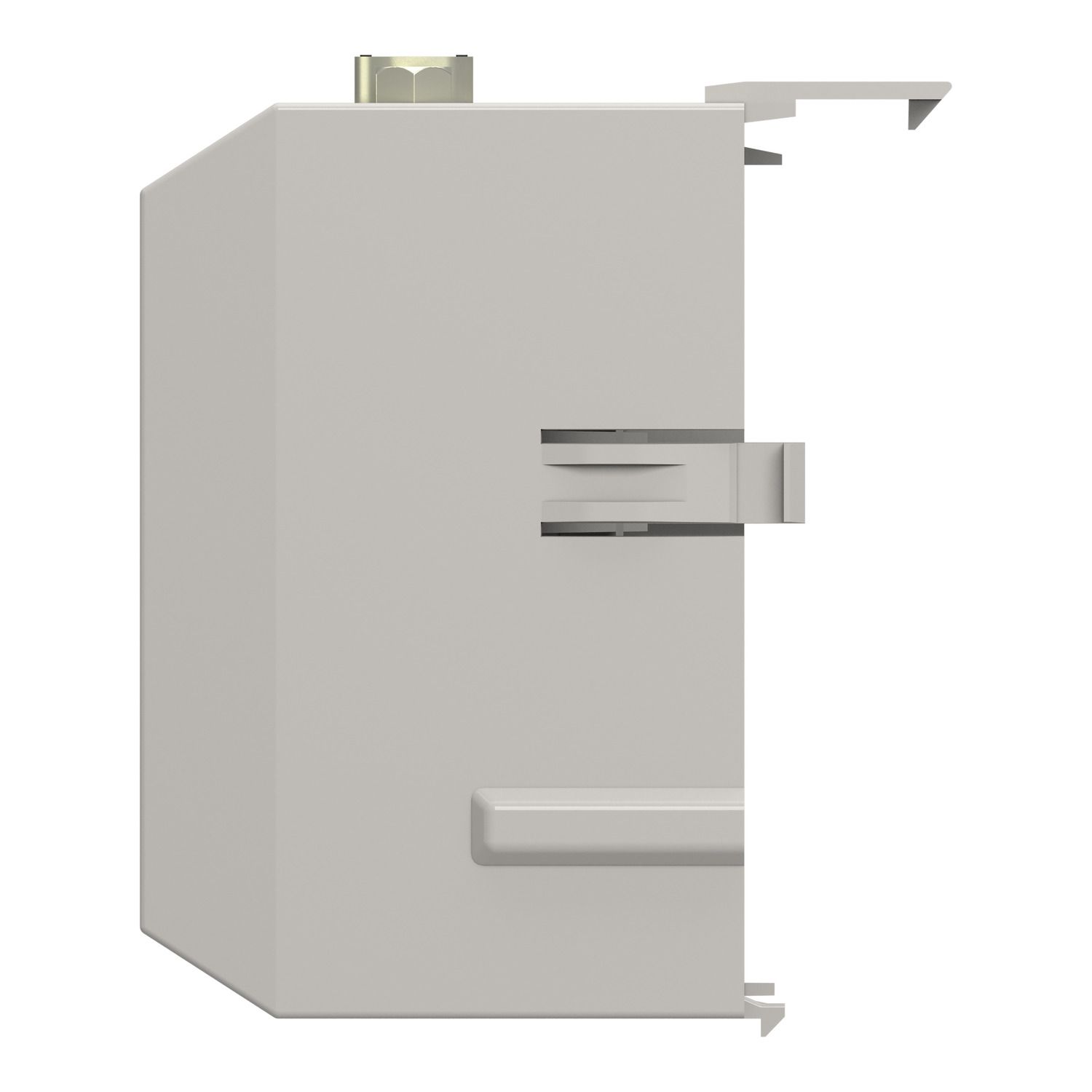

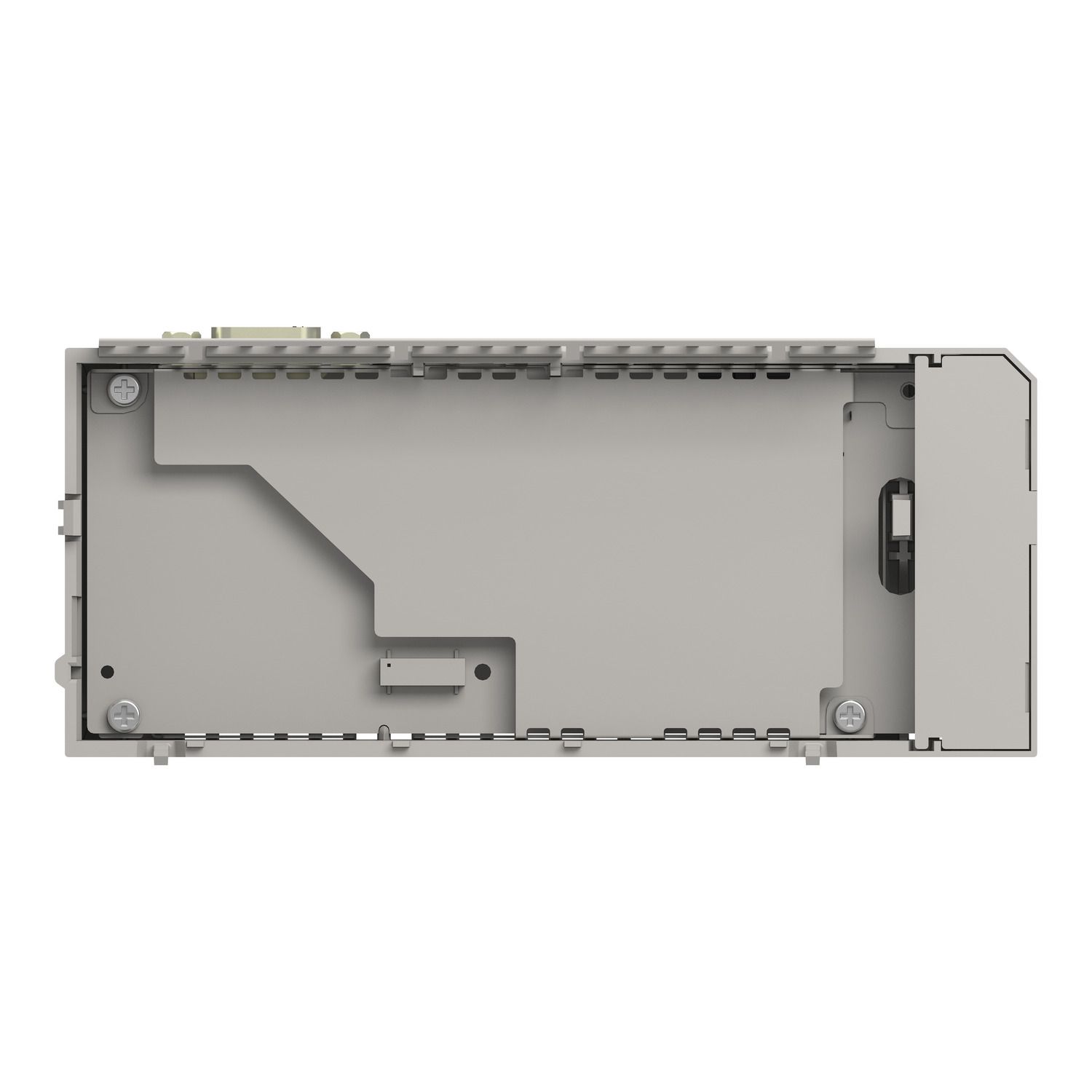

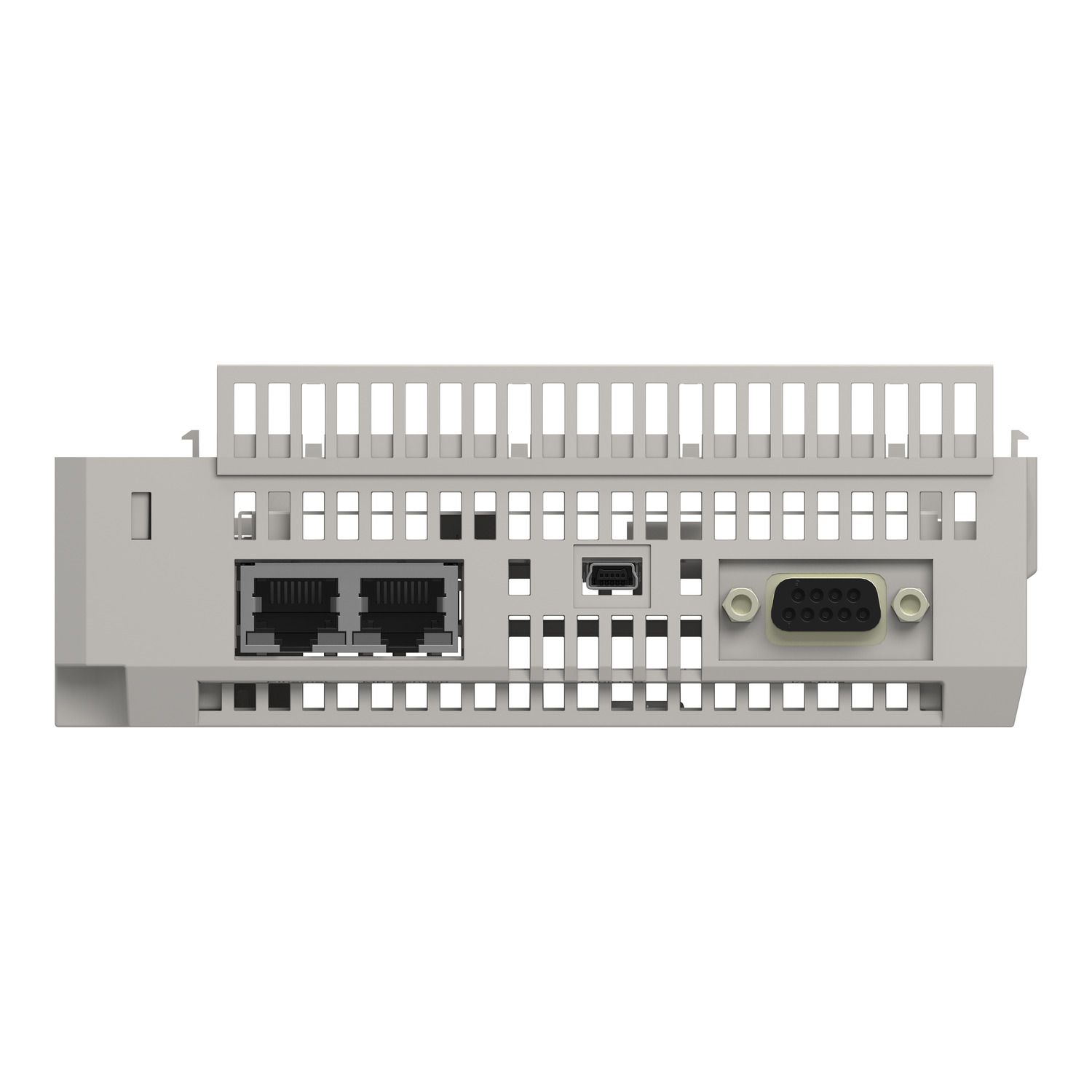

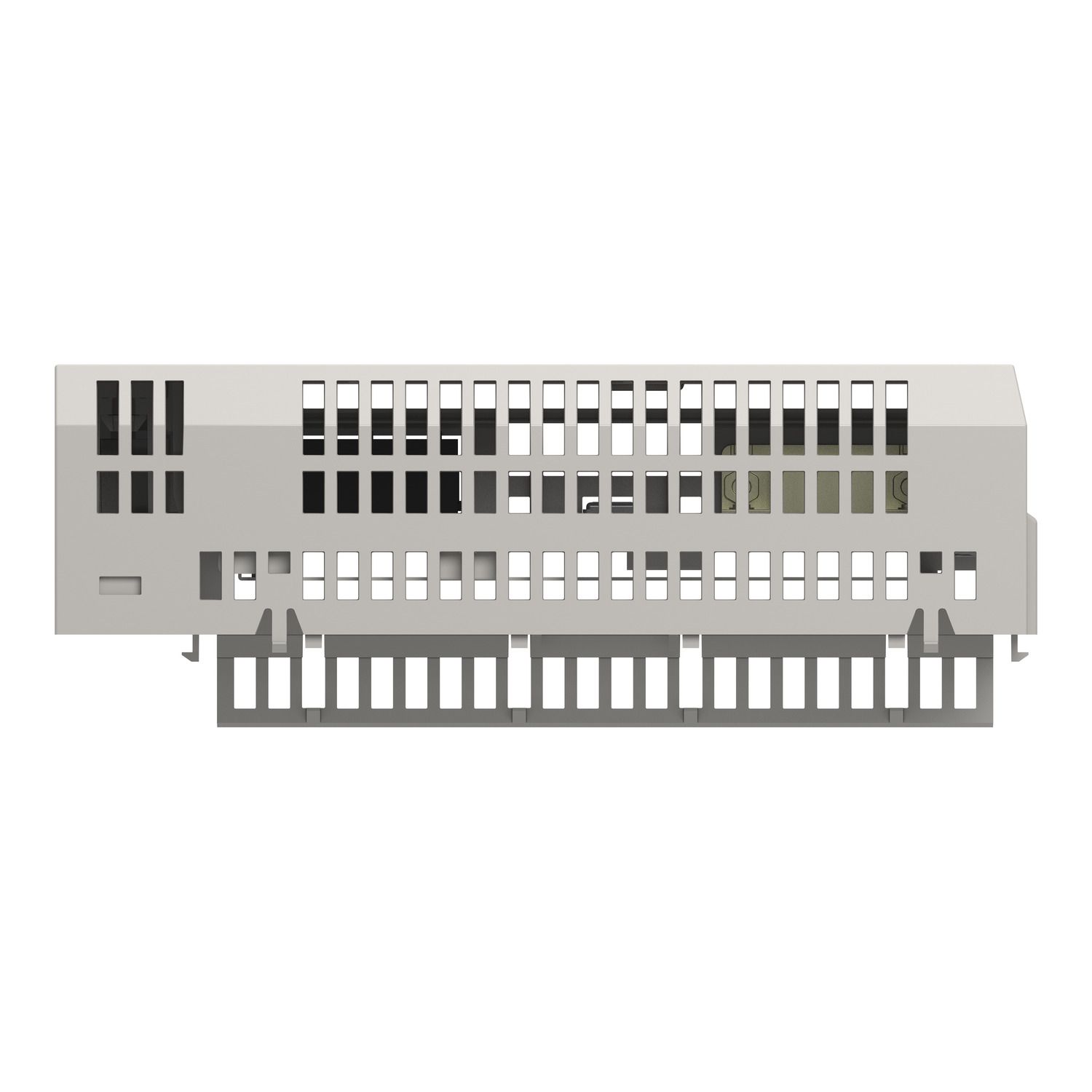

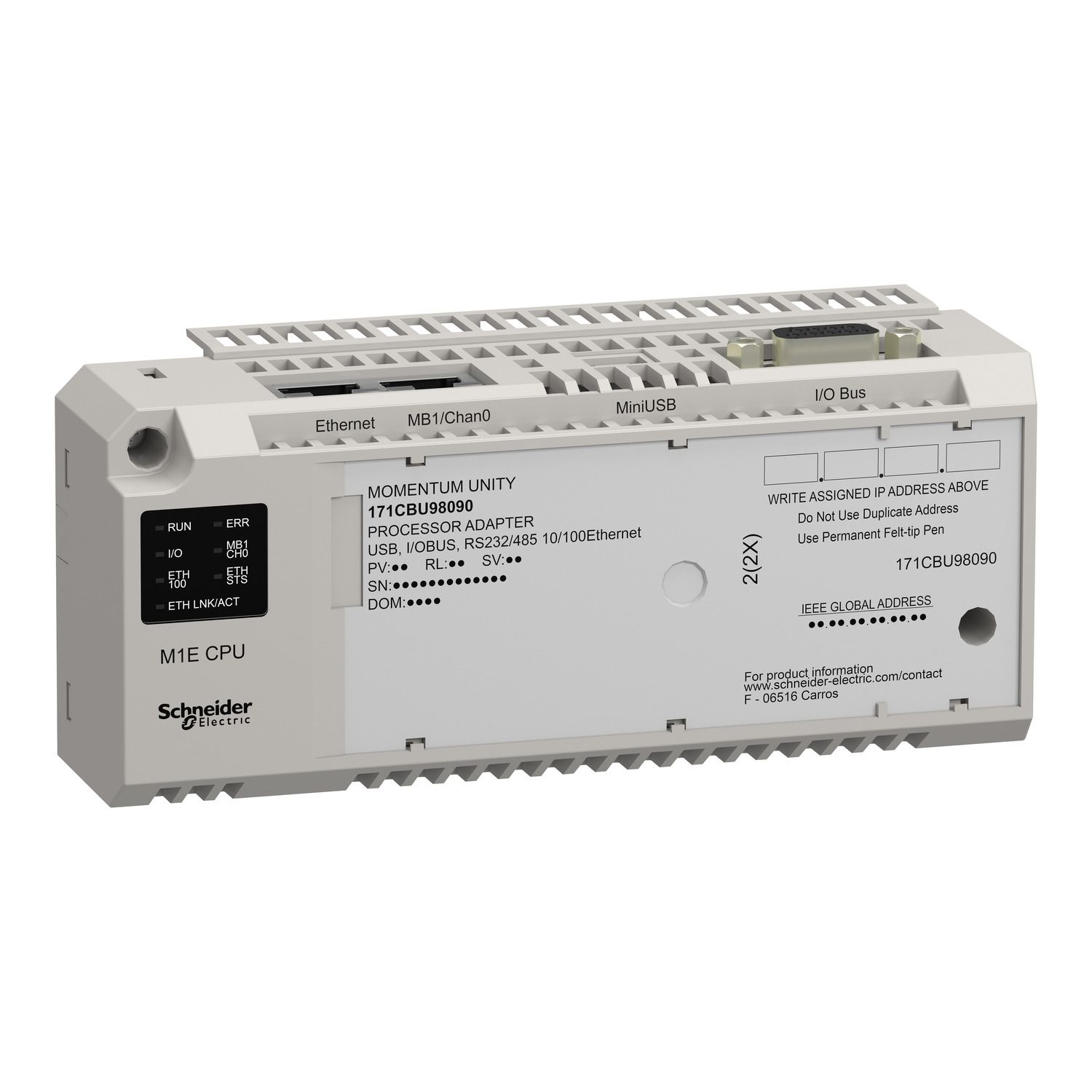

Unity M1E processor - RS232/485 - Ethernet - USB - I/O bus

$4,839.43
Available for Shipping : 10-Dec-2024
Unity M1E processor - RS232/485 - Ethernet - USB - I/O bus
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
User guide
End of life manual
Catalogue
Product Page Link
Product Data Sheet
This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This Unity M1E processor is equipped with Ethernet and USB integrated connection ports. The Spear 320s processor's communication services are Modbus messaging 125 words, 200 I/O message per second. The processor with Unity Pro software has web services like CPU status, Ethernet statistics, bandwidth monitoring, home pages and properties. It is an IP20 rated product. Its dimensions are 144mm (width) x 53.47mm (depth) x 60.6mm (height) and weighs 0.163kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM, C-Tick. It meets UL 508, CSA C22.2 No 142 and EN/IEC 61131-2 standards. This product is compatible with Modicon STB I/O. It supports 35mm symmetrical DIN rail mount. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Products specifications

Attribute name Attribute value
Main
Product compatibility Modicon STB I/O
Range of product Modicon Momentum automation platform
Product or component type processor
Integrated connection type USB port, Ethernet
Complementary
Exact time for 1 Kinstruction 83 ns
Memory description program memory LL984 3584 kB, program memory IEC 3584 kB
Web services properties, home pages, bandwidth monitoring, Ethernet statistics, CPU status
Module format standard
Product mounting 35 mm symmetrical DIN rail
Method of access master/slave, client/server
Addressing unique IEEE global address Modbus TCP, 1...247 Modbus
Number of devices 32 Modbus
Supply voltage limits 4.75-5.25 V
Processor name Spear 320s
Concept Transparent Ready class B
Control parameter CRC-32 for Modbus TCP/IP, CRC-16 for Modbus
Clock frequency 333 MHz
Marking CE
Communication port protocol Modbus TCP ETHERNET - 1 RJ45 10/100 Mbps - twisted shielded pairs cable CAT 5E UTP, Modbus RS485/RS232 - 1 RJ45 19200 bps - 2-wire
Topology star Modbus TCP, multidrop Modbus
Height 60.6 mm
Word length 32 bit
Depth 53.47 mm
Width 144 mm
Register words 26048
Local signalling 1 LED (green) for status of Ethernet network (ETH STS), 1 LED (green) for data rate (ETH LINK), 1 LED (green) for data rate (ETH 100), 1 LED (yellow) for channel 0 operating (CH0), 1 LED (red) for I/O module fault (I/O), 1 LED (red) for processor or system fault (ERR), 1 LED (green) for processor running (RUN)
Fail state safe I/O mode
Software designation Unity Pro
Communication service Modbus TCP I/O Scanner and Messaging, Global Data, 1600 I/O message per second, Modbus messaging 125 words, 200 I/O message per second
Net weight 0.163 kg
Current consumption 500 mA at 5 V DC
I/O limit processor capacity 2048 inputs/2048 outputs
Environment
Resistance to electrostatic discharge 8 kV on air conforming to EN/IEC 61000-4-2, 6 kV contact conforming to IACS E10, 6 kV contact conforming to EN/IEC 61131-2 zone B
Ambient air temperature for storage -40-85 °C
Relative humidity 5-96 %
IP degree of protection IP20
Resistance to electromagnetic fields 15 V/m 80...2700 MHz conforming to EN/IEC 61000-4-3
Ambient air temperature for operation 0-60 °C
Dielectric strength 5000 V for 1 minute ETHERNET, 0 V not isolated RS485/RS232
Operating altitude <= 2000 m
Material lexan
Shock resistance 15 gn during 11 ms sinusoidal vibrations
Standards EN/IEC 61131-2, CSA C22.2 No 142, UL 508
Product certifications C-Tick, FM
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.500 cm
Package 1 Width 11.200 cm
Package 1 Length 20.700 cm
Package 1 Weight 237.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.385 kg
