SKU:

171CBU98091

Unity M1E processor - RS232/485 - Ethernet - USB - I/O bus - global data

Please Contact Sales to buy this Product. click here
Unity M1E processor - RS232/485 - Ethernet - USB - I/O bus - global data
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Image of product
Image of product
Declaration of conformity
Image of product
End of life manual
Image of product
User guide
Catalogue
Image of product
Image of product
Product Page Link
Product Data Sheet

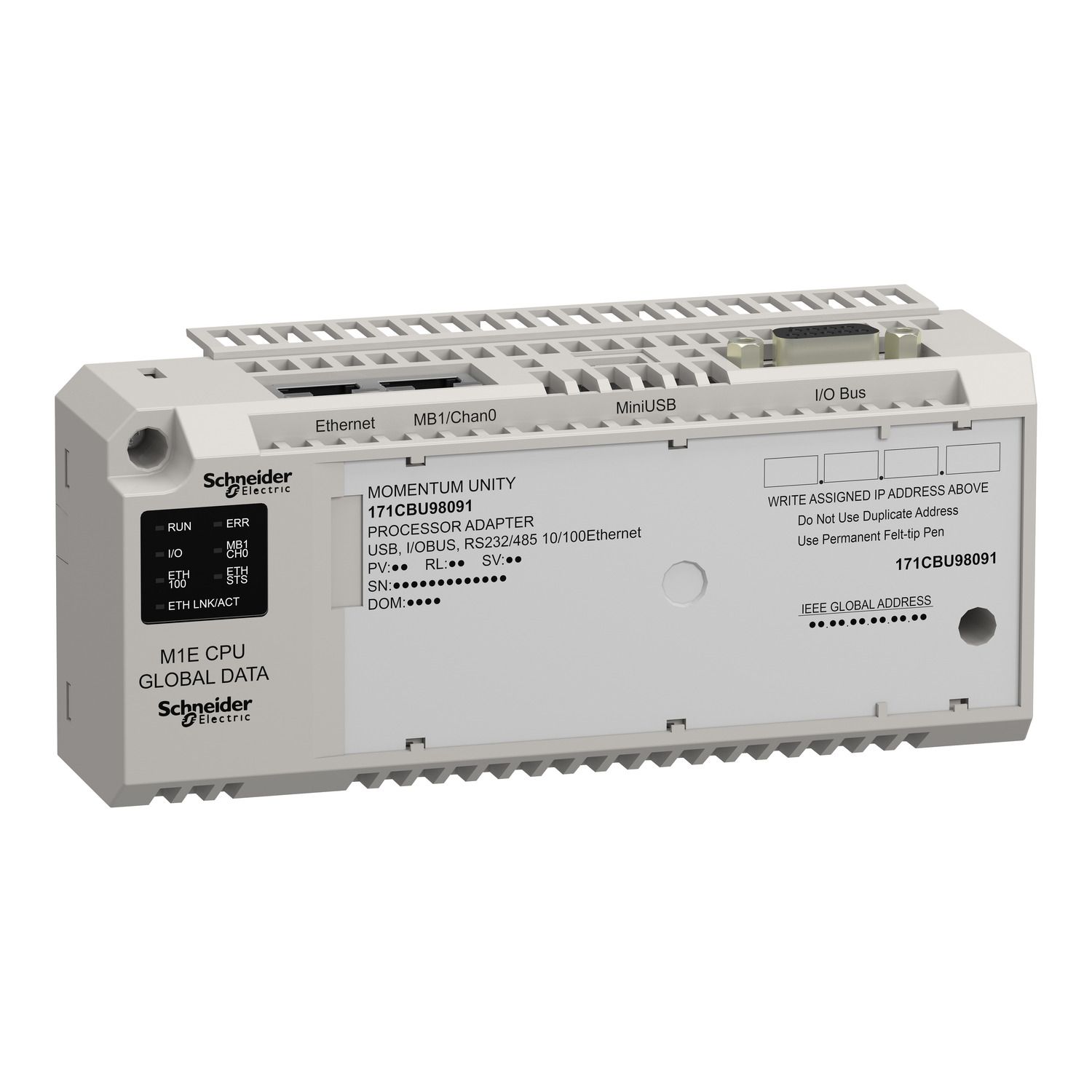

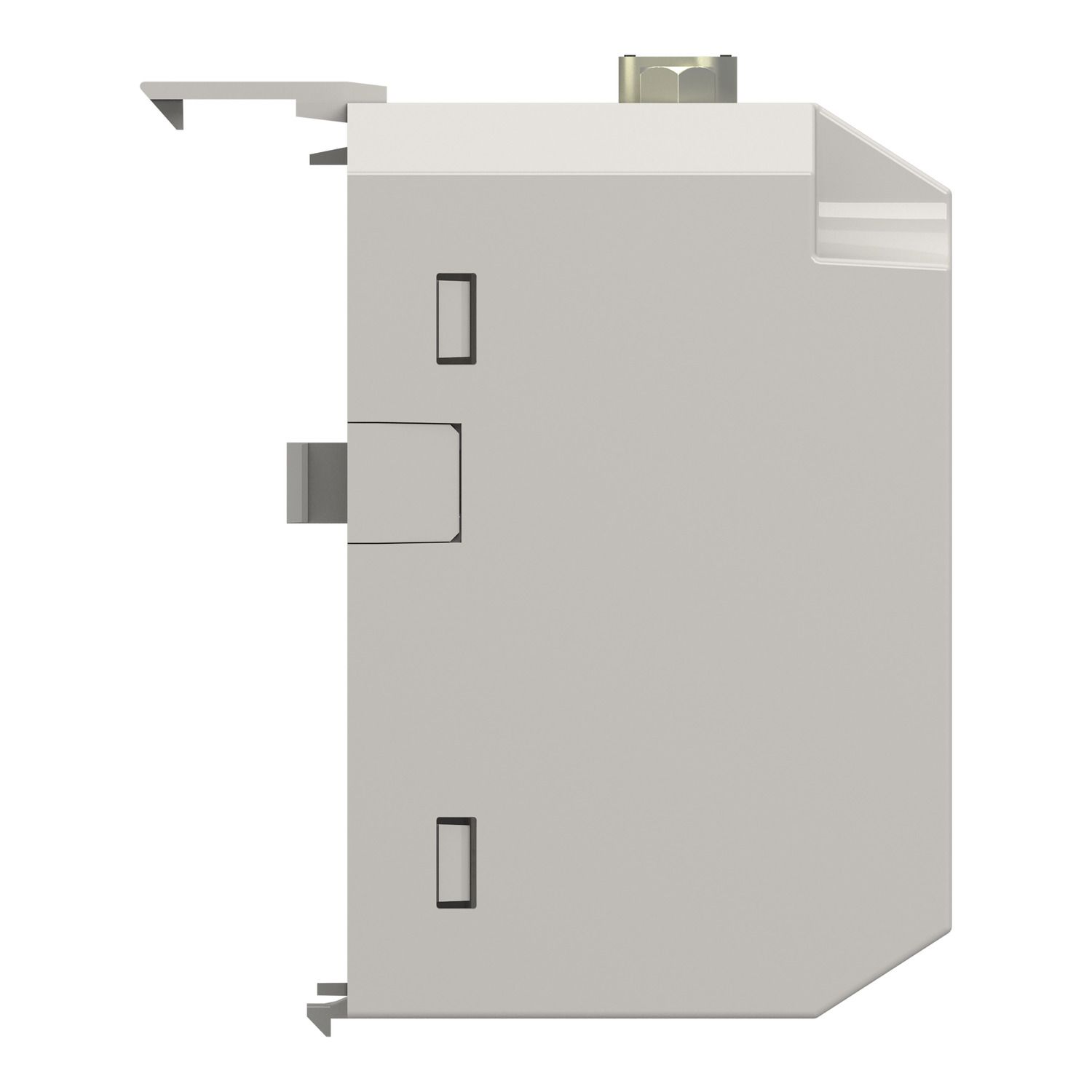

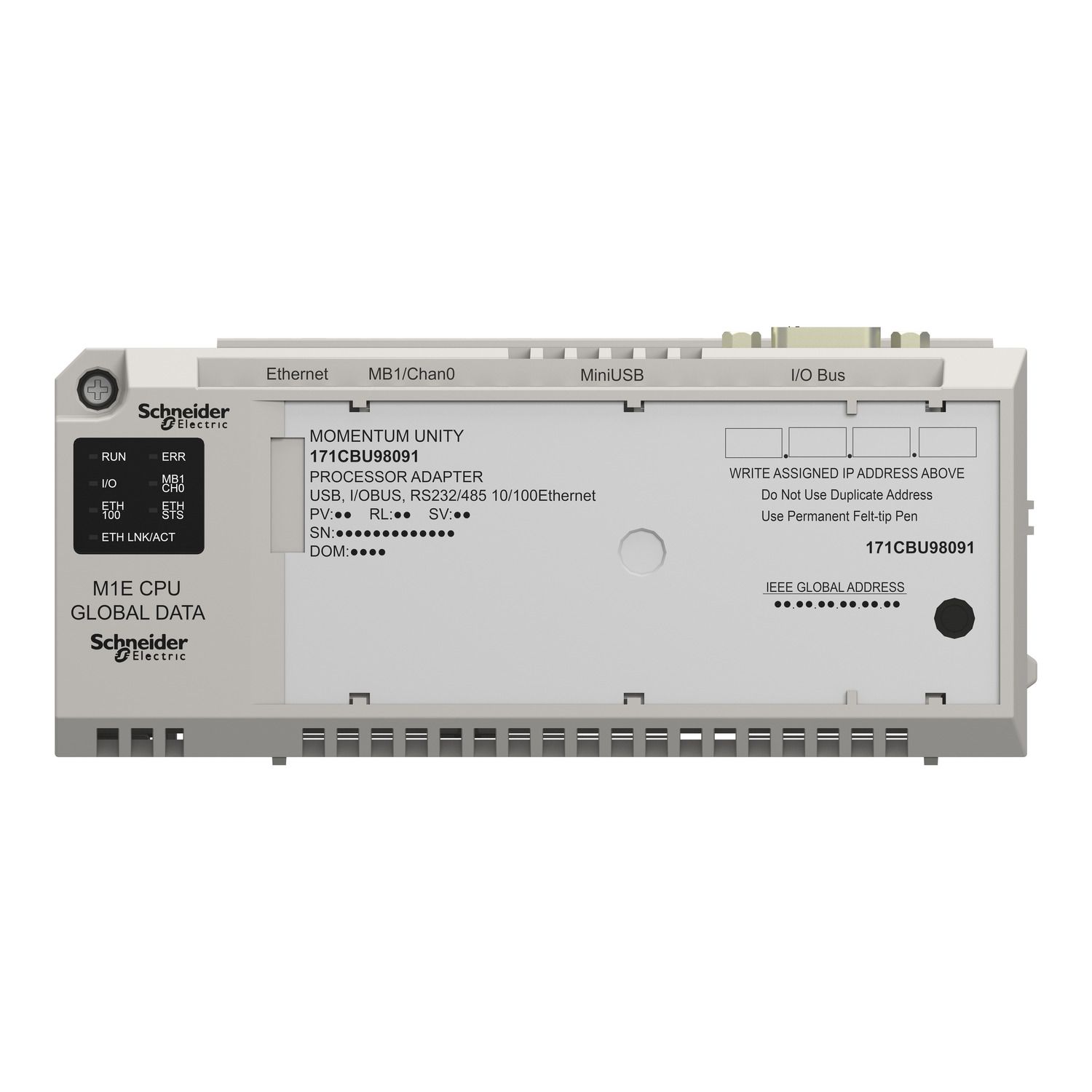

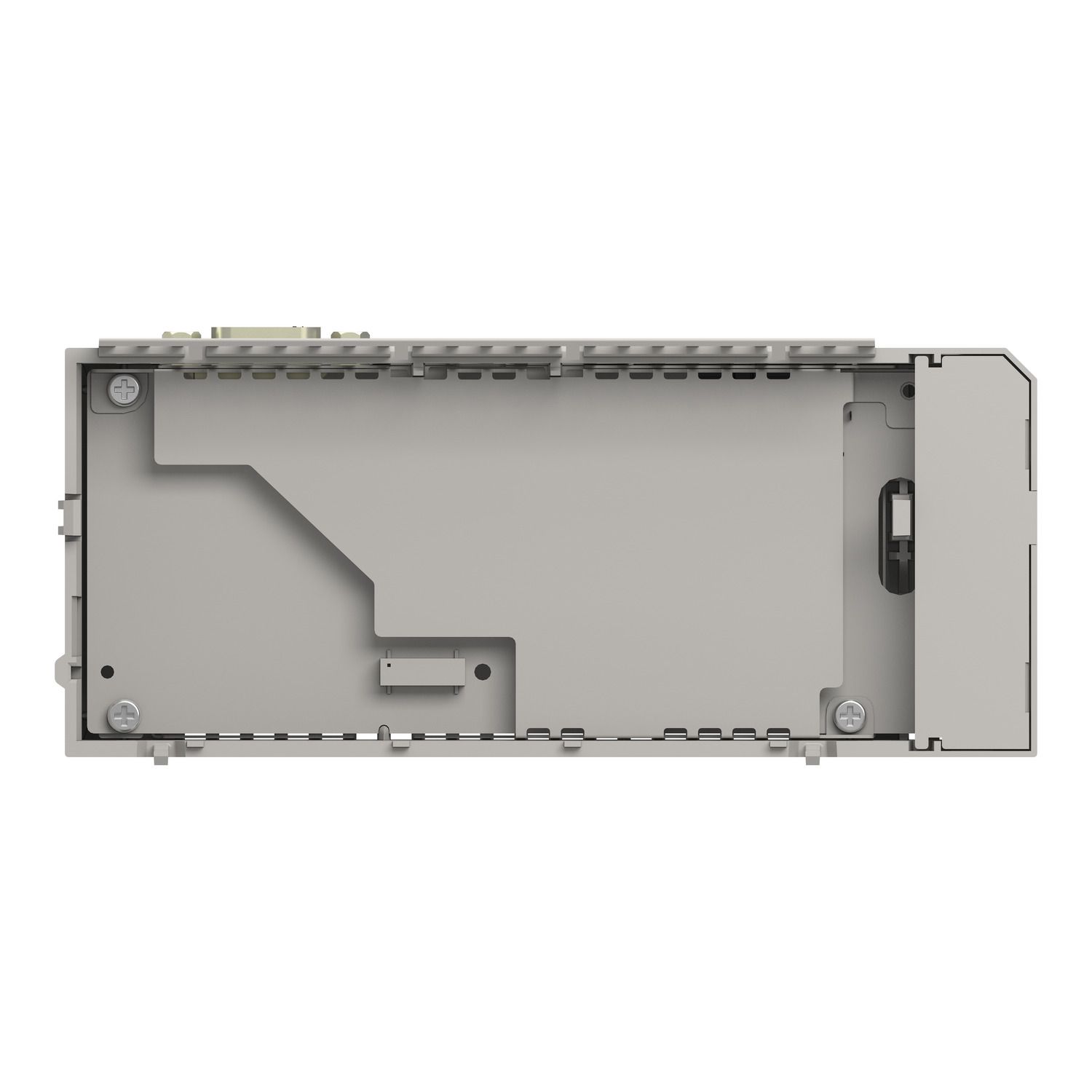

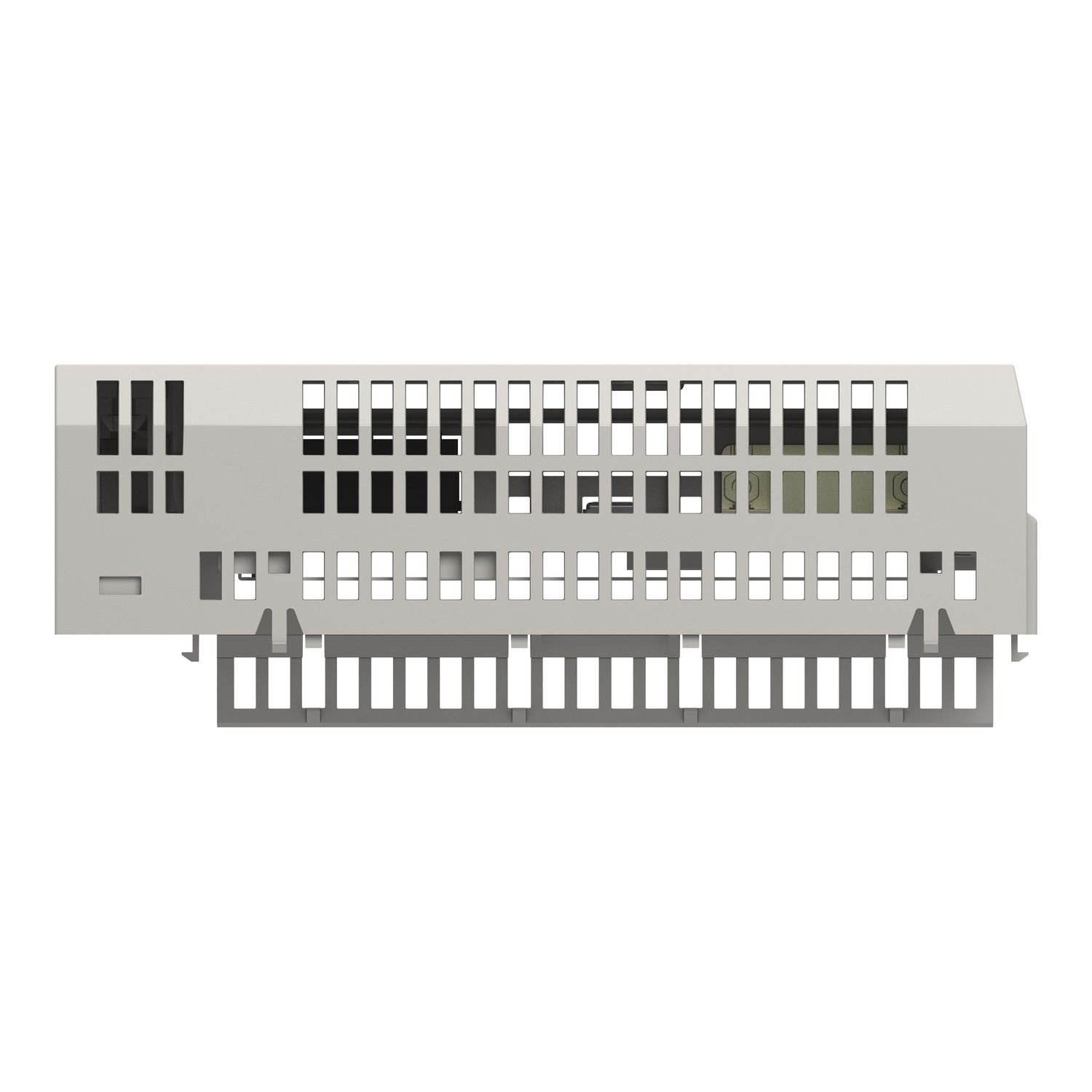

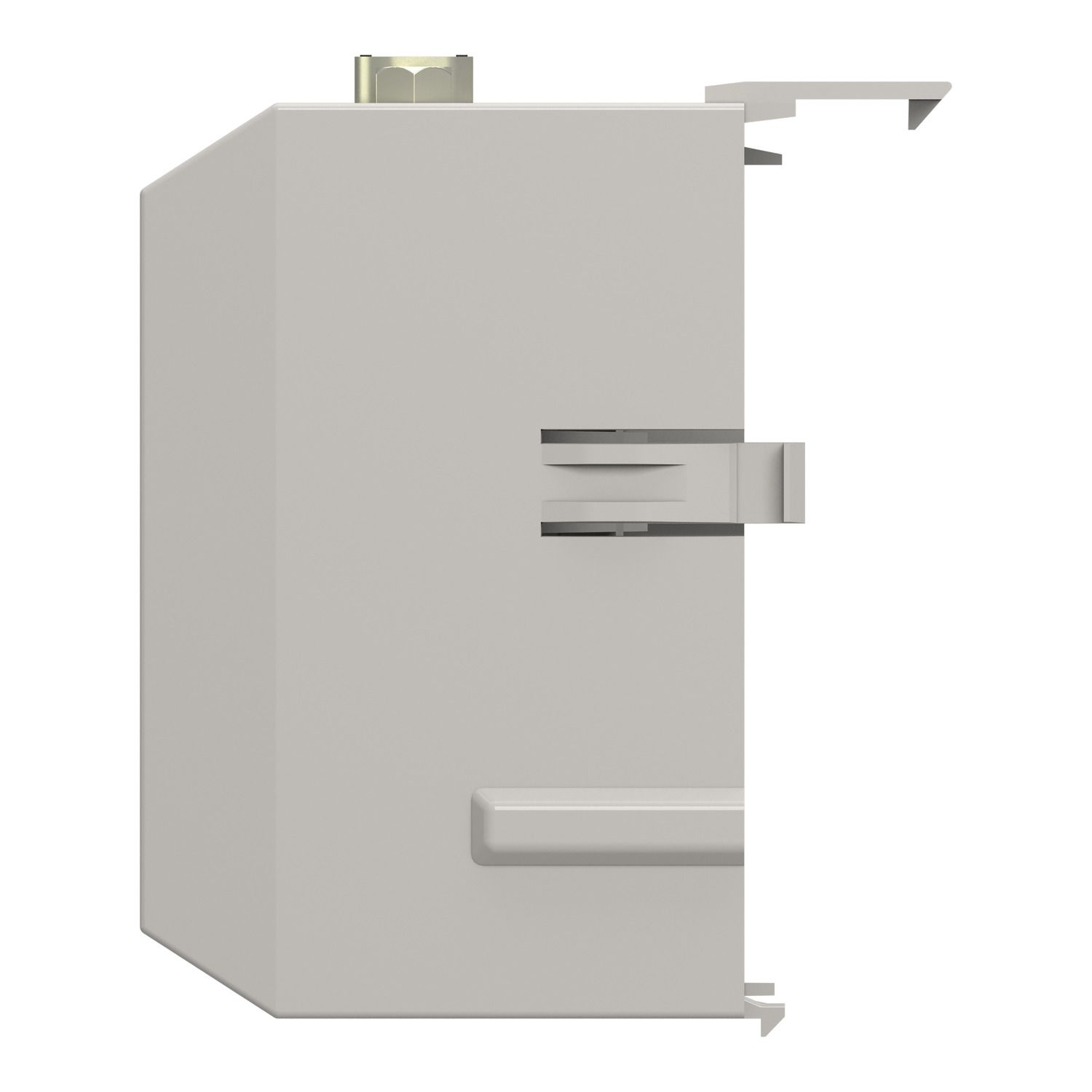

This processor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This Unity M1E processor is equipped with Ethernet and USB integrated connection ports. The Spear 320s processor offers 125 words Modbus messaging and 200 I/O message per second. The processor is accessible through client/server and master/slave method. This processor provides web services like CPU status, ethernet statistics, bandwidth monitoring, home pages and properties. It is an IP20 rated product. Its dimensions are 144mm (width) x 53.47mm (depth) x 60.6mm (height). It weighs 0.163kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM, C-Tick. It meets UL 508, CSA C22.2 No 142 and EN/IEC 61131-2 standards. It is compatible with Modicon STB I/O. It supports 35mm symmetrical DIN rail mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Products specifications

Attribute nameAttribute value
Main
Product compatibilityModicon STB I/O
Range of productModicon Momentum automation platform
Product or component typeprocessor
Integrated connection typeEthernet, USB port
Complementary
Exact time for 1 Kinstruction83 ns
Memory descriptionprogram memory LL984 3584 kB, program memory IEC 3584 kB
Web serviceshome pages, Ethernet statistics, CPU status, properties, bandwidth monitoring
Module formatstandard
Product mounting35 mm symmetrical DIN rail
Method of accessmaster/slave, client/server
Addressingunique IEEE global address Modbus TCP, 1...247 Modbus
Number of devices32 Modbus
Supply voltage limits4.75-5.25 V
Processor nameSpear 320s
ConceptTransparent Ready class B
Control parameterCRC-16 for Modbus, CRC-32 for Modbus TCP/IP
Clock frequency333 MHz
MarkingCE

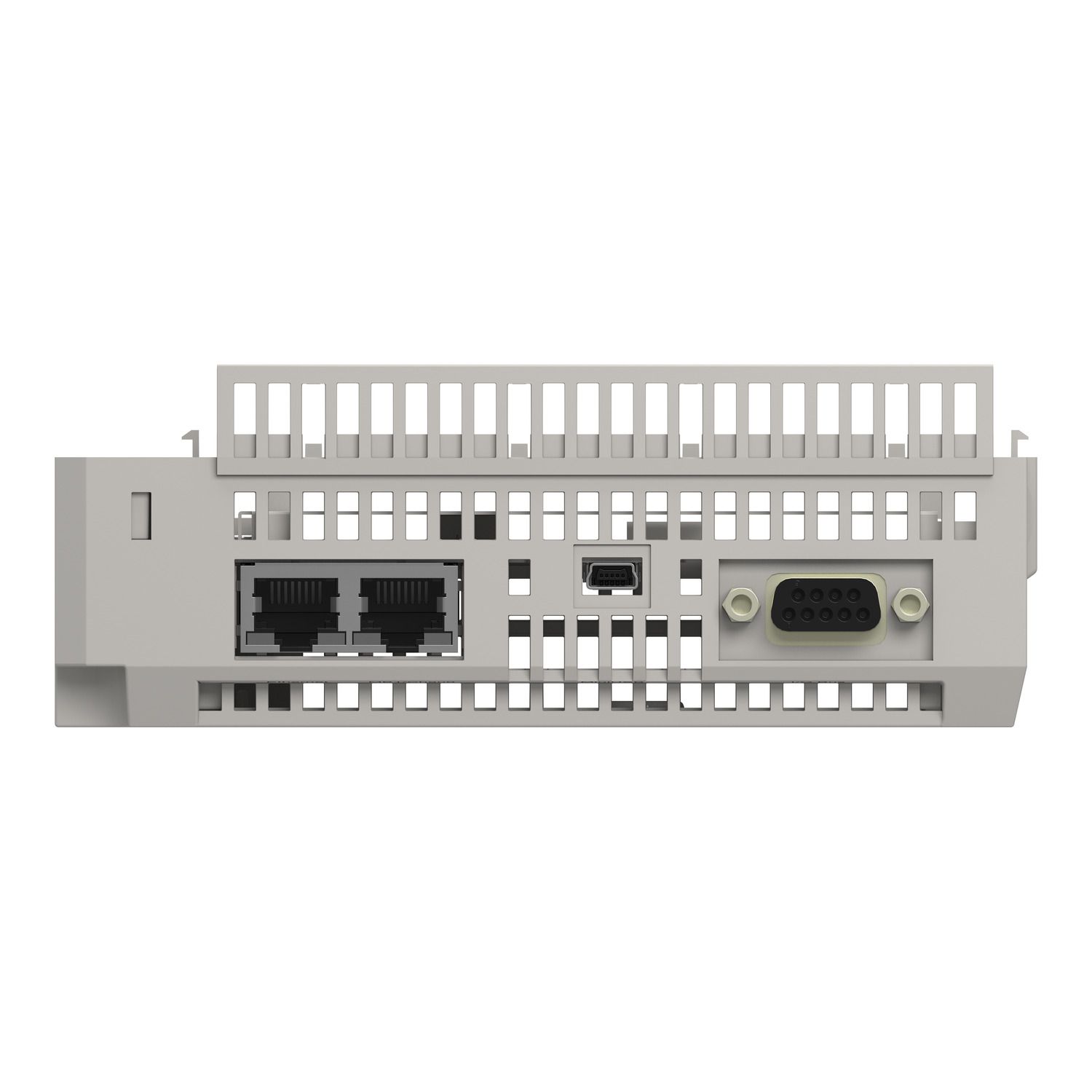

Communication port protocolModbus TCP ETHERNET - 1 RJ45 10/100 Mbps - twisted shielded pairs cable CAT 5E UTP, Modbus RS485/RS232 - 1 RJ45 19200 bps - 2-wire
Topologystar Modbus TCP, multidrop Modbus
Height60.6 mm
Word length32 bit
Depth53.47 mm
Width144 mm
Register words26048
Local signalling1 LED (green) for status of Ethernet network (ETH STS), 1 LED (green) for data rate (ETH LINK), 1 LED (green) for data rate (ETH 100), 1 LED (yellow) for channel 0 operating (CH0), 1 LED (red) for I/O module fault (I/O), 1 LED (red) for processor or system fault (ERR), 1 LED (green) for processor running (RUN)
Fail statesafe I/O mode
Software designationUnity Pro
Communication serviceModbus TCP I/O Scanner and Messaging, Global Data, 2200 I/O message per second, Modbus messaging 125 words, 200 I/O message per second
Net weight0.163 kg
Current consumption500 mA at 5 V DC
I/O limit processor capacity2048 inputs/2048 outputs
Environment
Resistance to electrostatic discharge8 kV on air conforming to EN/IEC 61000-4-2, 6 kV contact conforming to IACS E10, 6 kV contact conforming to EN/IEC 61131-2 zone B
Ambient air temperature for storage-40-85 °C
Relative humidity5-96 %
IP degree of protectionIP20
Resistance to electromagnetic fields15 V/m 80...2700 MHz conforming to EN/IEC 61000-4-3
Ambient air temperature for operation0-60 °C
Dielectric strength5000 V for 1 minute ETHERNET, 0 V not isolated RS485/RS232
Operating altitude<= 2000 m
Materiallexan
Shock resistance15 gn during 11 ms sinusoidal vibrations
StandardsEN/IEC 61131-2, CSA C22.2 No 142, UL 508
Product certificationsFM, C-Tick
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height7.500 cm
Package 1 Width11.200 cm
Package 1 Length20.500 cm
Package 1 Weight238.000 g
Unit Type of Package 22
Number of Units in Package 28
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight2.389 kg
