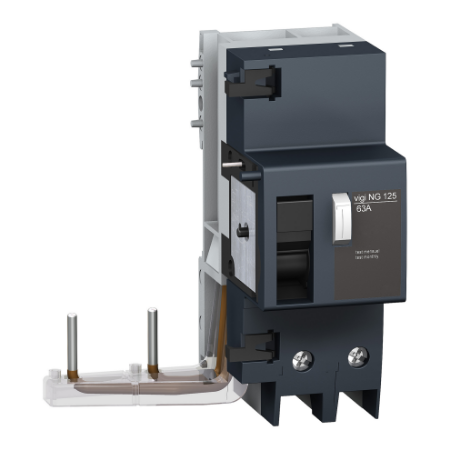

Picture of NG125 - earth leakage add-on block - Vigi NG125 - 2P - 63A - 30mA
SKU:

19000

NG125 - earth leakage add-on block - Vigi NG125 - 2P - 63A - 30mA

$734.82
Availability: Please contact our sales team on 1300 724 622.
NG125 - earth leakage add-on block - Vigi NG125 - 2P - 63A - 30mA
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Catalogue
User guide
Product environmental
Product Page Link
Product Data Sheet
This Vigi NG125 is a modular add-on residual current device. It is a 2P and rated current is 63A. The earth leakage protection class is AC type with a sensitivity of 30mA and a voltage independent technology. This product protects against electrical shock by direct or indirect contact, and fire risks. It has to be combined with a NG125 circuit breaker. This product is compliant with IEC 60947-2 standard. The Ue rated operational voltage is from 230VAC to 415VAC. The Ui rated insulation voltage is 690VAC. The Uimp rated impulse withstand voltage is 8kV. The pollution degree is 3. It can be mounted on 35 mm symmetrical DIN rail. The width in 9mm pitches is 5. The dimensions are (W) 99mm x (H) 118mm x (D) 81mm. The weight is 250g. The degree of protection is IP20 and IP40 in an enclosure.

Products specifications

Attribute name Attribute value
Main
Device short name Vigi NG125
Poles description 2P
Earth-leakage protection time delay instantaneous
Product or component type add-on residual current devices
Earth-leakage sensitivity 30 mA
Earth-leakage protection class type AC
Network type AC
Range of product NG125
[In] rated current 63 A
Complementary
[Ue] rated operational voltage 230...415 V AC 50/60 Hz
Product compatibility single terminal
Tightening torque 3.5-3.5 N.m
Depth 81 mm
Market segment small commercial
Width 99 mm
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC/EN 60947-2
Compatibility code Vigi NG125
Electrical durability 10000 cycles conforming to IEC/EN 60947-2
[Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC/EN 60947-2
Residual current tripping technology voltage independent
Electrical connection to mcb by screws
Wire stripping length 20 mm
Net weight 0.25 kg
9 mm pitches 5
Device location in system outgoer
Mounting support 35 mm symmetrical DIN rail
Connections - terminals tunnel type terminals 1.5-50 mm² rigid, tunnel type terminals 1-35 mm² flexible
Height 118 mm
Network frequency 50/60 Hz
Environment
Operating altitude 2000 m
Relative humidity 95-95 % at 55-55 °C
Pollution degree 3 conforming to IEC/EN 60947-2
IP degree of protection IP40 conforming to IEC/EN 60947-2
Electromagnetic compatibility 8/20 µs impulse withstand, 3000 A conforming to IEC/EN 60947-2
Standards IEC/EN 60947-2:Annex B
Tropicalisation 2 conforming to IEC 60068-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.4 cm
Package 1 Width 13.8 cm
Package 1 Length 13.8 cm
Package 1 Weight 316 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.04 kg
