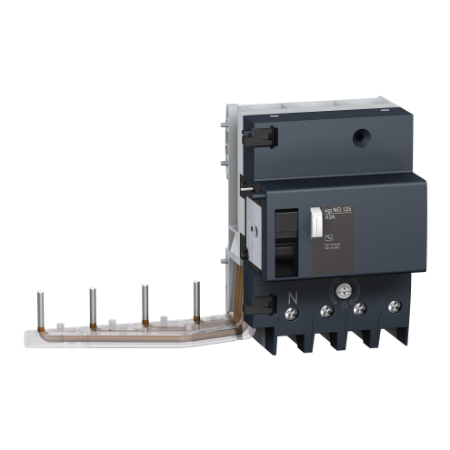

Picture of NG125 - earth leakage add-on block - Vigi NG125 - 4P - 63A - 30mA
SKU:

19004

NG125 - earth leakage add-on block - Vigi NG125 - 4P - 63A - 30mA

$2,197.54
NG125 - earth leakage add-on block - Vigi NG125 - 4P - 63A - 30mA
Be the first to review this product
Manufacturer: Schneider Electric
Availability: Please contact our sales team on 1300 724 622.
End of life manual
User guide
Product environmental
Product Page Link
Product Data Sheet
This Vigi NG125 is a modular add-on residual current device. It has 4P and rated current is 63A. The earth leakage protection class is AC type with a sensitivity of 30mA and a voltage independent technology. This product protects against electrical shock by direct or indirect contact, and fire risks. This device is combined with a NG125 circuit breaker to provide the earth leakage protection and circuit protection. It has to be combined with a NG125 circuit breaker. This product is compliant with IEC 60947-2 standard. The Ue rated operational voltage is from 230VAC to 415VAC. The Ui rated insulation voltage is 690VAC. The Uimp rated impulse withstand voltage is 8kV. The pollution degree is 3. It can be mounted on 35 mm symmetrical DIN rail. The width in 9mm pitches is 9. The dimensions are (W) 189mm x (H) 118mm x (D) 81mm. The weight is 450g. The degree of protection is IP20 and IP40 in an enclosure.

Products specifications

Attribute nameAttribute value
Main
Device short nameVigi NG125
Poles description4P
Earth-leakage protection time delayinstantaneous
Product or component typeadd-on residual current devices
Earth-leakage sensitivity30 mA
Earth-leakage protection classtype AC
Network typeAC
Range of productNG125
[In] rated current63 A
Complementary
[Ue] rated operational voltage230...415 V AC 50/60 Hz
Product compatibilitysingle terminal
Tightening torque3.5-3.5 N.m
Depth81 mm
Market segmentsmall commercial
Width189 mm
[Uimp] rated impulse withstand voltage8 kV conforming to IEC/EN 60947-2
Compatibility codeVigi NG125
Electrical durability10000 cycles conforming to IEC/EN 60947-2
[Ui] rated insulation voltage690 V AC 50/60 Hz conforming to IEC/EN 60947-2
Residual current tripping technologyvoltage independent
Electrical connection to mcbby screws
Wire stripping length20 mm
Net weight0.45 kg
9 mm pitches9
Device location in systemoutgoer
Mounting support35 mm symmetrical DIN rail
Connections - terminalstunnel type terminals 1.5-50 mm² rigid, tunnel type terminals 1-35 mm² flexible
Height118 mm
Network frequency50/60 Hz
Environment
Operating altitude2000 m
Relative humidity95-95 % at 55-55 °C
Pollution degree3 conforming to IEC/EN 60947-2
IP degree of protectionIP40 conforming to IEC/EN 60947-2
Electromagnetic compatibility8/20 µs impulse withstand, 3000 A conforming to IEC/EN 60947-2
StandardsIEC/EN 60947-2:Annex B
Tropicalisation2 conforming to IEC 60068-1
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.5 cm
Package 1 Width13.5 cm
Package 1 Length26.0 cm
Package 1 Weight541.0 g
Unit Type of Package 22
Number of Units in Package 28
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight4.82 kg
