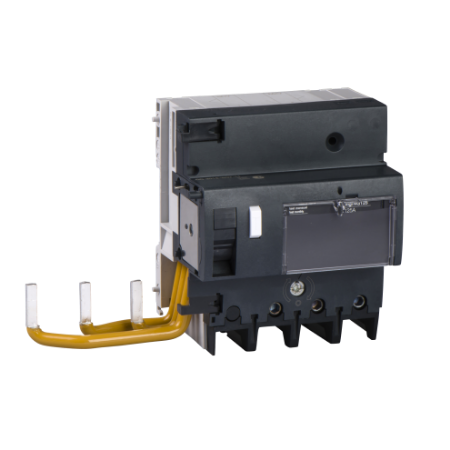

NG125 - earth leakage add-on block - Vigi NG125 - 3P - 125A - 30mA

$978.37
Availability: Please contact our sales team on 1300 724 622.
NG125 - earth leakage add-on block - Vigi NG125 - 3P - 125A - 30mA
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
User guide
Product environmental
Product Page Link
Product Data Sheet
This Vigi NG125 is a modular add-on residual current device. It is a 3P and rated current is 125A. The earth leakage protection class is A type with a sensitivity of 30mA and a voltage independent technology. This product protects against electrical shock by direct or indirect contact, and fire risks. It has to be combined with a NG125 circuit breaker. This product is compliant with IEC 60947-2 standard. The Ue rated operational voltage is from 440VAC to 500VAC. The Ui rated insulation voltage is 690VAC. The Uimp rated impulse withstand voltage is 8kV. The pollution degree is 3. It can be mounted on 35 mm symmetrical DIN rail. The width in 9mm pitches is 11. The dimensions are (W) 180mm. The weight is 750g. The degree of protection is IP20 and IP40 in an enclosure.

Products specifications

Attribute name Attribute value
Main
Device short name Vigi NG125
Poles description 3P
Earth-leakage protection time delay instantaneous
Product or component type add-on residual current devices
Earth-leakage sensitivity 30 mA
Earth-leakage protection class type A
Network type AC
Range of product NG125
[In] rated current 125 A
Complementary
[Ue] rated operational voltage 440...500 V AC 50/60 Hz
Product compatibility single terminal
Tightening torque 6-6 N.m
Width 180 mm
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC/EN 60947-2
Compatibility code Vigi NG125
Electrical durability 10000 cycles conforming to IEC/EN 60947-2
[Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC/EN 60947-2
Residual current tripping technology voltage independent
Electrical connection to mcb by screws
Wire stripping length 20 mm
Net weight 0.75 kg
9 mm pitches 11
Device location in system outgoer
Mounting support 35 mm symmetrical DIN rail
Connections - terminals tunnel type terminals 16-70 mm² rigid, tunnel type terminals 10-50 mm² flexible
Network frequency 50/60 Hz
Environment
Operating altitude 2000 m
Relative humidity 95-95 % at 55-55 °C
Pollution degree 3 conforming to IEC/EN 60947-2
IP degree of protection IP40 conforming to IEC/EN 60947-2
Electromagnetic compatibility 8/20 µs impulse withstand, 3000 A conforming to IEC/EN 60947-2
Standards IEC/EN 60947-2:Annex B
Tropicalisation 2 conforming to IEC 60068-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.0 cm
Package 1 Width 13.5 cm
Package 1 Length 22.5 cm
Package 1 Weight 906.0 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 8.479 kg
