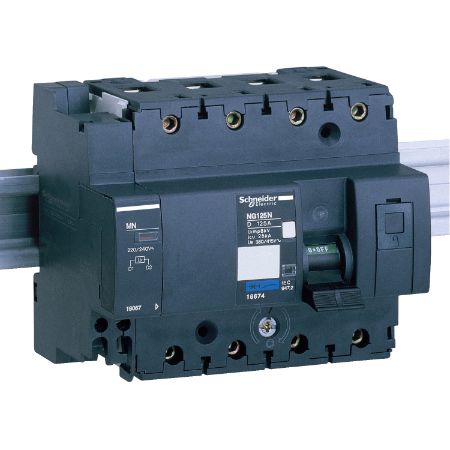

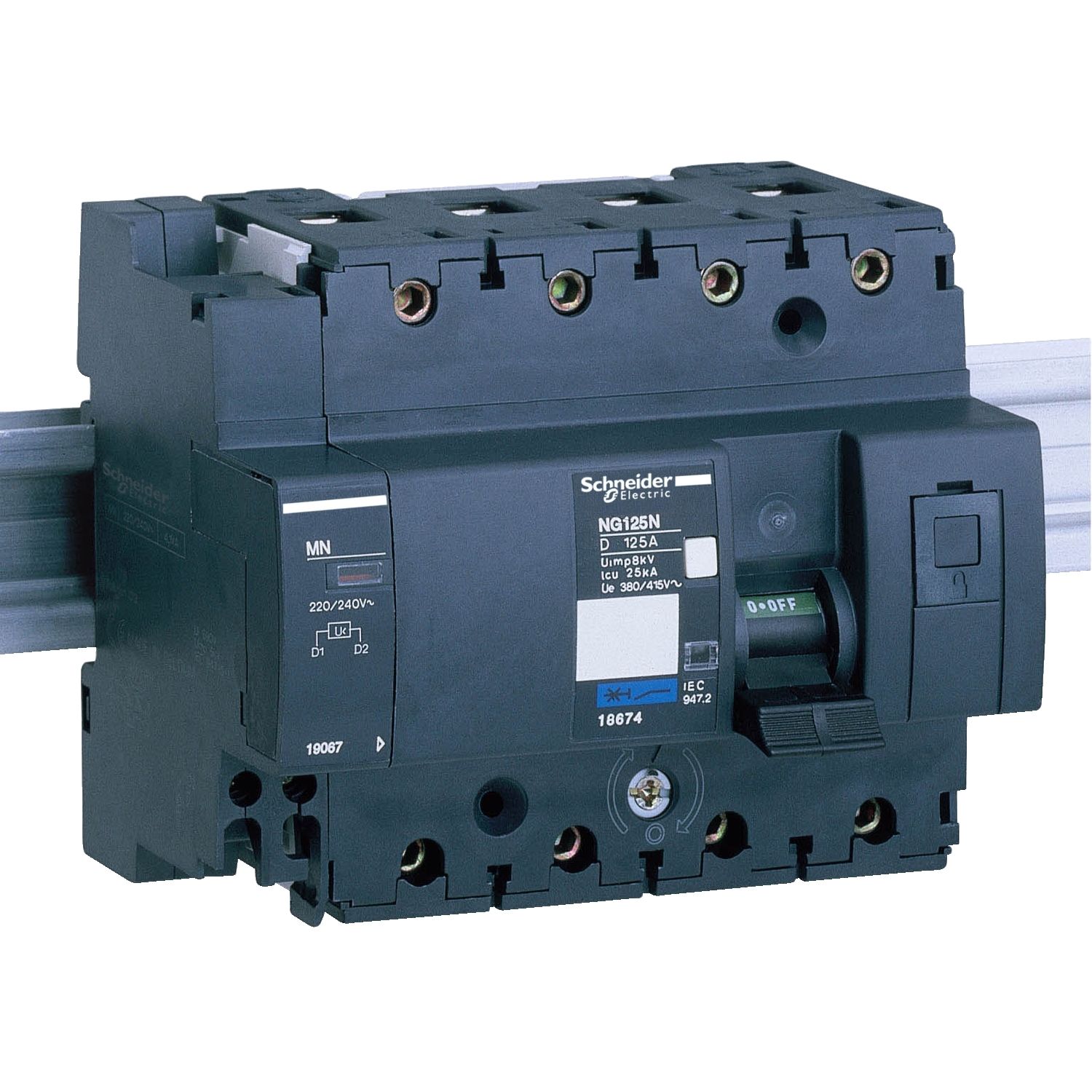

Picture of Undervoltage release, Acti9 NG125, MN, 230VAC to 240VAC
SKU:

19067

Undervoltage release, Acti9 NG125, MN, 230VAC to 240VAC

$154.99
Available for Shipping : 12-Dec-2024
Undervoltage release, Acti9 NG125, MN, 230VAC to 240VAC
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Product Page Link
Product Data Sheet
This Acti9 MN electrical auxiliary is a undervoltage release device. It is dedicated to NG125. It prevents device closing again until its input voltage has been restored. The width in 9mm pitches is 4. The product trips the associated device when it is powered on. The Uc control circuit voltage is 230…240VAC. It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product complies with IEC/EN 60947-5-1 standards.

Products specifications

Attribute name Attribute value
Main
Device short name MN
Product compatibility NG125
Control type standard
Range Acti9
Product or component type undervoltage release
9 mm pitches 2
Range of product NG125
[Uc] control circuit voltage 230...240 V AC 50/60 Hz
Complementary
Tightening torque 1-1 N.m
Depth 78 mm
Market segment small commercial
Width 32 mm
[Uimp] rated impulse withstand voltage 8 kV conforming to EN/IEC 60947-5-1
Local signalling action indicator
Compatibility code MN
Electrical durability 10000 cycles conforming to EN/IEC 60947-5-1
Mounting mode fixed
[Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to EN/IEC 60947-5-1
Connections - terminals plate terminal - 2 cable(s) 1.5-1.5 mm² - flexible with ferrule, plate terminal - 2 cable(s) 2.5-2.5 mm² - rigid, plate terminal - 2 cable(s) 2.5-2.5 mm² - flexible, plate terminal - 1 cable(s) 0.5-1.5 mm² - flexible with ferrule, plate terminal - 1 cable(s) 0.5-1.5 mm² - flexible, plate terminal - 1 cable(s) 0.5-2.5 mm² - rigid
Wire stripping length 10 mm, 9 mm
Net weight 0.134 kg
Range compatibility Acti 9 Acti9 NG125, Acti 9 Acti9 NG125NA, Acti 9 Acti9 NG125LMA, Acti 9 Vigi NG125
Mounting support 35 mm symmetrical DIN rail
Height 113 mm
Environment
Overvoltage category II
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Pollution degree 3 conforming to EN/IEC 60947-5-1
IP degree of protection IP4 conforming to EN/IEC 60947-5-1, IP20 B conforming to EN/IEC 60947-5-1
Tropicalisation 2 conforming to EN/IEC 60947-5-1
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -25-60 °C
Product certifications ASTA, KEMA, ASEFA, LCIE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.2 cm
Package 1 Width 7.8 cm
Package 1 Length 11.3 cm
Package 1 Weight 128 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 11.3 cm
Package 2 Width 8.5 cm
Package 2 Length 23.7 cm
Package 2 Weight 829 g
Unit Type of Package 3 3
Number of Units in Package 3 54
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 7.962 kg
