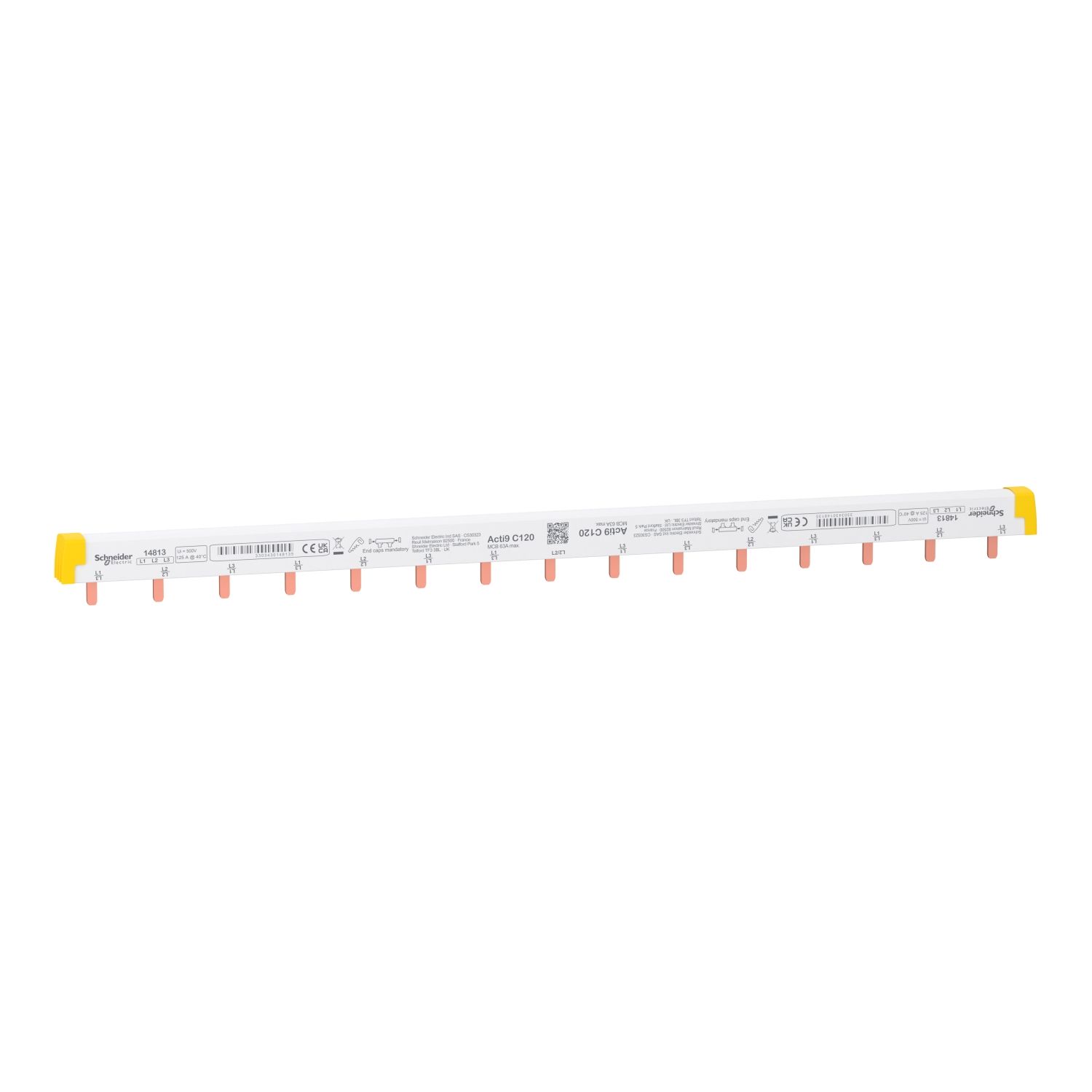

Picture of Acti9 - comb busbar - 3L - 27 mm pitch - 22 modules - 125A
SKU:

14813

Acti9 - comb busbar - 3L - 27 mm pitch - 22 modules - 125A

Old price: $169.40 INC GST
$100.10 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Acti9 - comb busbar - 3L - 27 mm pitch - 22 modules - 125A
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Declaration of conformity
Instruction sheet
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This Acti9 connection accessory is a horizontal insulated cuttable comb busbar. It has a width of 22 modules of 18mm. It is dedicated to (Line) installations. The distribution type is (L1, L2, L3). It is suitable for 5 devices with a 3P pole description. The distance between way is 81mm.

Products specifications

Attribute name Attribute value
Main
Lines description 3L
Mounting mode horizontal
Range Acti9
Product or component type comb busbar
Accessory / separate part category connection accessory
Total number of 18 mm modules 22
Complementary
Poles configuration for 1 way 1 x 3P
Mounting location bottom on tunnel type terminals, top on tunnel type terminals
Width 405 mm
Colour white (RAL 9003)
Connection pitch 27 mm
[Ue] rated operational voltage 500 V AC
Insulation insulated
[Ie] rated operational current 125 A at 40 °C
[Ui] rated insulation voltage 500 V AC
Device presentation cuttable
Connector type tooth
Marking L1 L2 L3
Distance between way 81 mm
9 mm pitches 45
Number of ways 5 ways 3 L
Range compatibility Acti 9 Acti9 C120, Acti 9 Acti9 NG125
Environment
Fire resistance 960 °C ( 30 s ) conforming to IEC 60695-2-1
Pollution degree 3
Standards IEC 60664-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.700 cm
Package 1 Width 5.000 cm
Package 1 Length 42.000 cm
Package 1 Weight 218.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 10.000 cm
Package 2 Width 10.000 cm
Package 2 Length 103.000 cm
Package 2 Weight 4.752 kg
Unit Type of Package 3 3
Number of Units in Package 3 80
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 30.540 kg
