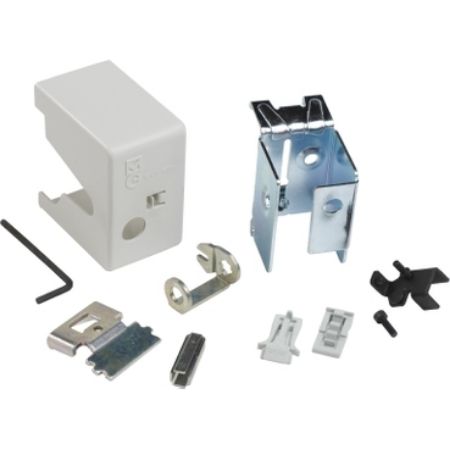

Picture of Front rotary handle C60 / 120 and NC45 / 100 / 125 - black handle
SKU:

27046

Front rotary handle C60 / 120 and NC45 / 100 / 125 - black handle

$147.04
Availability: Please contact our sales team on 1300 724 622.
Front rotary handle C60 / 120 and NC45 / 100 / 125 - black handle
Be the first to review this product
Manufacturer: Schneider Electric
Brochure
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet

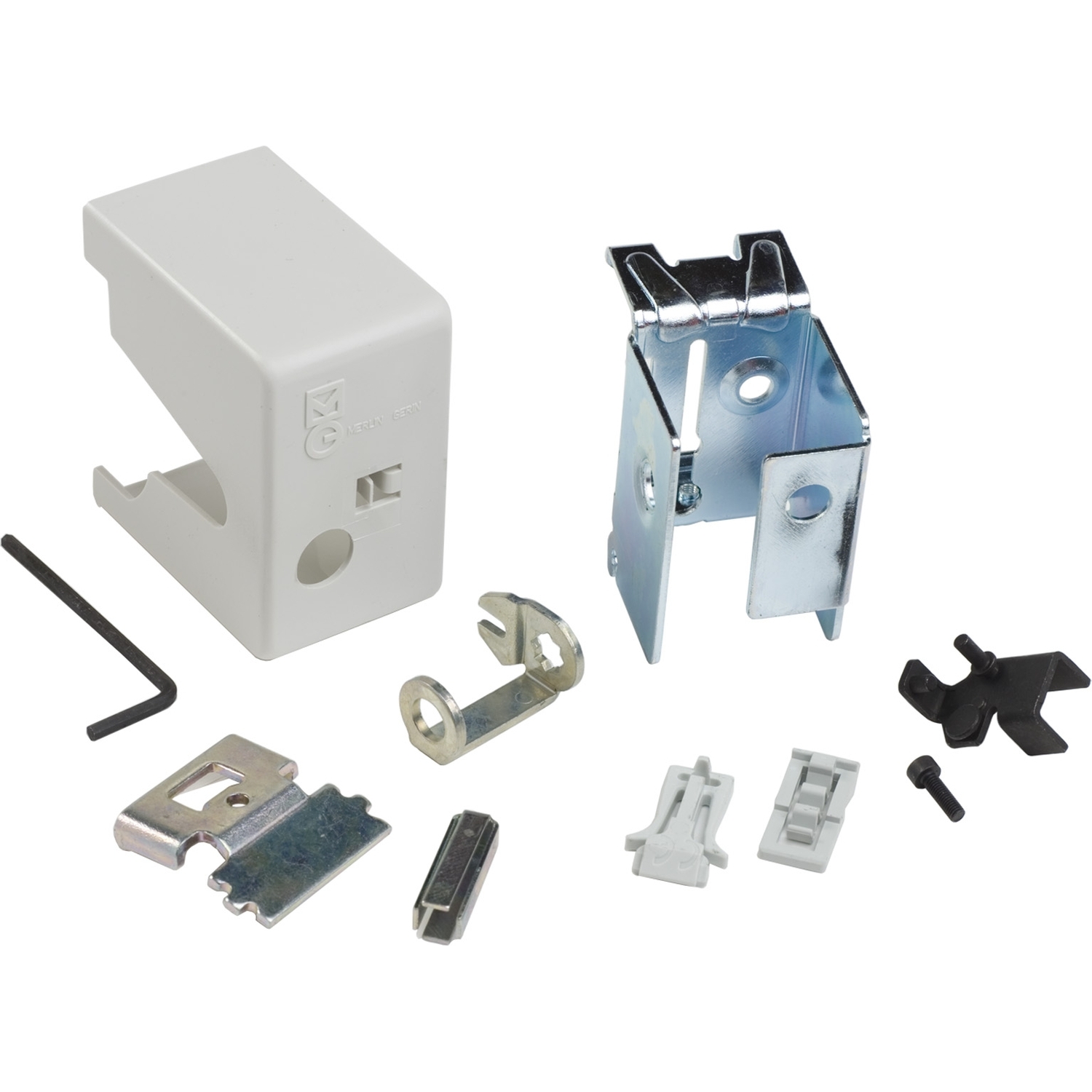

This Acti9 accessory is a rotary handle mechanism for modular devices with front or side mounting installation. It is dedicated to 2P (C60H-DC), 3P or 4P (DPN, DPN Vigi), 2P or 3P or 4P (C60, C120, C120NA-DC, C120 + Vigi C120, iSW at more than four 9mm pitches). This rotary handle mechanism is mounted on the circuit breaker. This subassembly mechanism can be associated with a removable extended handle (ref. 27047) or a fixed handle (ref. 27048). It is a set of 1 device. The color of the handle is white. The material is a self-extinguishing thermoplastic specially developed by Schneider Electric. The degree of protection of the rotary button is IP40 and IK10.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part type control accessories
Product or component type rotary handle mechanism
Range of product Librio, iSW 20...32, Multi9, I, C120, Clario, NC45...125, ProDis, DPN Vigi, C60
Complementary
Product compatibility C120, C60 UL1077, C60 UL489, DPN Vigi, C60 UL489 DC, C60CTRL, DPN, C120NA-DC, C60H-DC, iSW, C60
Market segment small commercial
Compatibility code rotary handle mechanism
Rotary handle mounting location front
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.000 cm
Package 1 Width 19.500 cm
Package 1 Length 22.000 cm
Package 1 Weight 225.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.960 kg
Unit Type of Package 3 3
Number of Units in Package 3 160
Package 3 Height 50.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 52.376 kg
