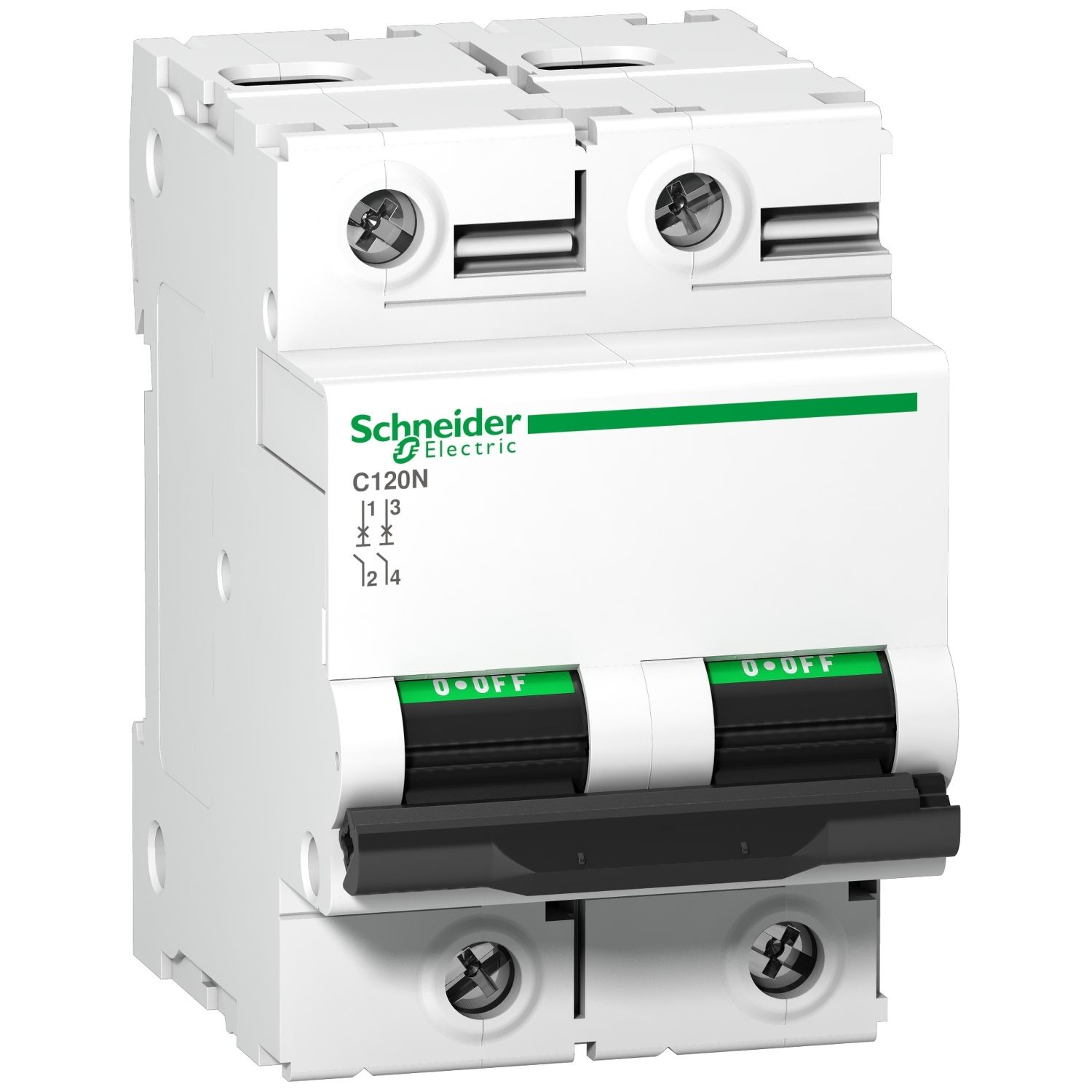

Picture of Acti9, Miniature circuit breaker (MCB), Acti9 C120N, 2P, 125A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
SKU:

A9N18363

Acti9, Miniature circuit breaker (MCB), Acti9 C120N, 2P, 125A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)

$239.06
Product Selector
Acti9, Miniature circuit breaker (MCB), Acti9 C120N, 2P, 125A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
  • Suitability for industrial isolation according to IEC/EN 60947-2 and IEC/EN 60898-1standard
  • Combine short-circuit and overload currents protection
  • Option to add auxiliaries, remote monitoring and residual current device (Vigi)
  • Faster, better and more flexible installation of device thanks to comb busbar
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
This Acti9 C120N is a low voltage multistandard miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 125A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard and 10000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. The presence of green strip guarantees contact open physically and allows work to be carried out safely on the downstream circuit. It has good overvoltage withstand capacity. The product is designed to offer a high industrial performance level It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is going from 380VAC to 415VAC. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 54mm x (H) 81mm x (D) 73mm. The weight is 0.41kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C.

Products specifications

Attribute nameAttribute value
Main
Device applicationdistribution
Suitability for isolationyes conforming to IEC 60947-2
Number of protected poles2
Trip unit technologythermal-magnetic
Neutral positionleft
Network typeAC
Device short nameC120N
Breaking capacity10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2, 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2, 10 kA Icu at <= 250 V DC conforming to EN/IEC 60947-2, 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2, 10000 A Icn at 230...400 V AC 50/60 Hz conforming to EN/IEC 60898-1
RangeActi9
Curve codeC
Range of productC120
Poles description2P
Product nameC120
Product or component typeminiature circuit-breaker
Breaking capacity codeN
[In] rated current125 A at 30 °C
Complementary
[Uimp] rated impulse withstand voltage6 kV conforming to EN/IEC 60947-2
Compatibility codeC120
Electrical durability5000 cycles conforming to IEC 60947-2
Connections - terminalstunnel type terminals1.5-35 mm² flexible, tunnel type terminals1-50 mm² rigid
Comb busbar and distribution block compatibilityYES
Earth-leakage protectionseparate block
Height81 mm
[Ics] rated service breaking capacity10 kA 100 % conforming to EN/IEC 60947-2 - <= 250 V DC, 15 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz, 7.5 kA 75 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz, 4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz, 7500 A 75 % conforming to EN/IEC 60898-1 - 230...400 V AC 50/60 Hz
Locking options descriptionhandle sealable with cable diameter 0.7mm in OFF or ON position
Market segmentresidential, small commercial
[Ui] rated insulation voltage500 V AC 50/60 Hz conforming to EN/IEC 60947-2
Net weight0.41 kg
Magnetic tripping limit5...10 x In
9 mm pitches6
Tightening torque3.5-3.5 N.m
Colourwhite
Connection pitch27 mm between phases
Mechanical durability20000 cycles
Mounting modeclip-on
Control typetoggle
Wire stripping length15 mm
[Ue] rated operational voltage230...400 V AC 50/60 Hz, <= 250 V DC, 440 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz
Depth73 mm
Width54 mm
Local signallingON/OFF indication
Limitation class3 conforming to EN/IEC 60947-2
Mounting support35 mm symmetrical DIN rail
Contact position indicatoryes
Network frequency50/60 Hz
Environment
Relative humidity95-95 % at 55-55 °C
Ambient air temperature for storage-40-85 °C
Tropicalisation2 conforming to IEC 60068-1
Operating altitude2000 m
Overvoltage categoryIV
Product certificationsEAC
Pollution degree3 conforming to IEC 60947-2
IP degree of protectionIP20 conforming to IEC 60529
Ambient air temperature for operation-25-70 °C
StandardsEN/IEC 60898-1, EN/IEC 60947-2
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.500 cm
Package 1 Width7.500 cm
Package 1 Length8.500 cm
Package 1 Weight388.600 g
Unit Type of Package 22
Number of Units in Package 26
Package 2 Height9.000 cm
Package 2 Width10.000 cm
Package 2 Length33.000 cm
Package 2 Weight2.397 kg
Unit Type of Package 33
Number of Units in Package 336
Package 3 Height30.000 cm
Package 3 Width30.000 cm
Package 3 Length40.000 cm
Package 3 Weight14.800 kg
