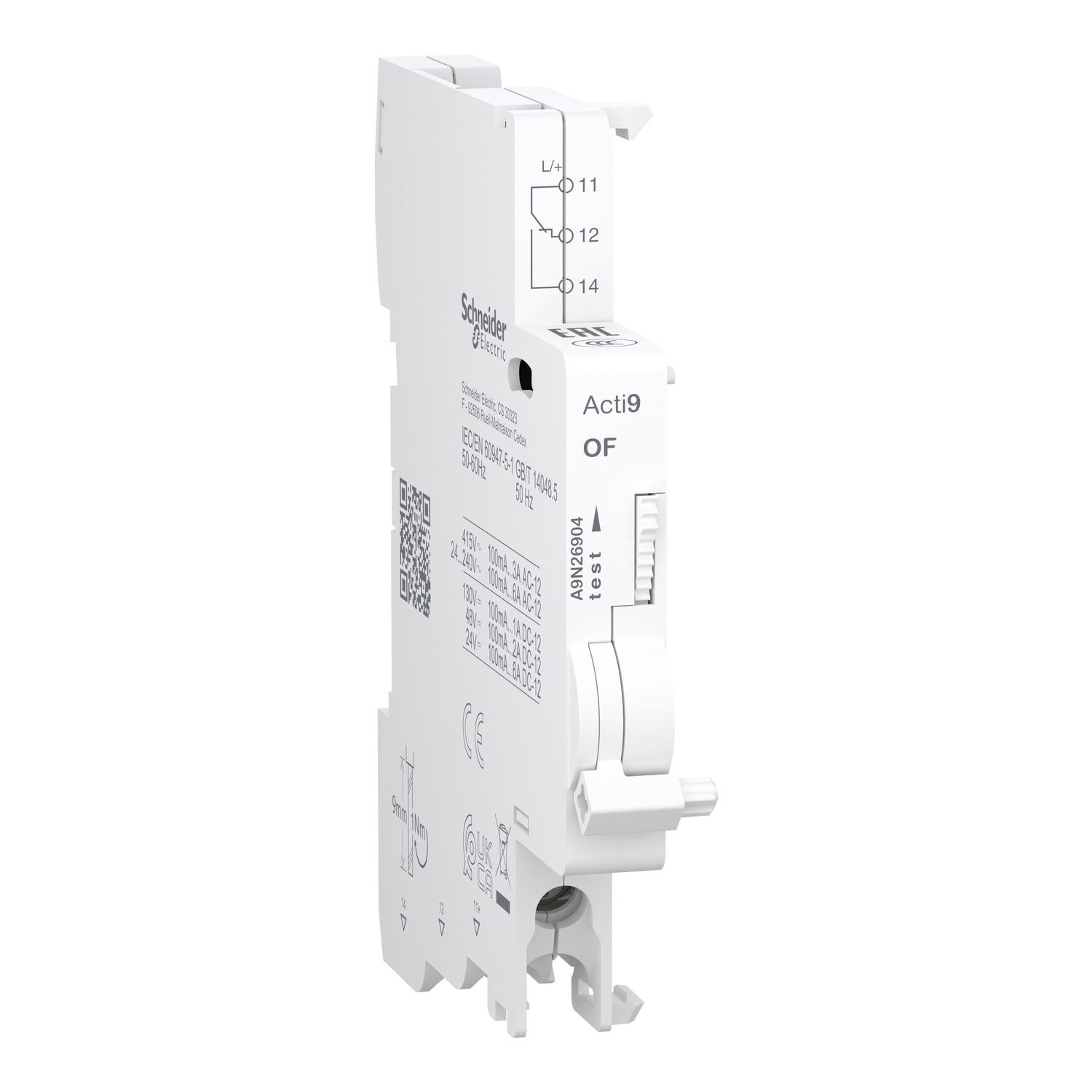

Picture of Auxiliary contact, Acti9 A9N, OF, 1 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, bottom connection
SKU:

A9N26904

Auxiliary contact, Acti9 A9N, OF, 1 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, bottom connection

$81.78
Available for Shipping : 17-Nov-2024
Auxiliary contact, Acti9 A9N, OF, 1 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, bottom connection
  • Can report the signaling to an Open/Closed Devices status
  • Compatible with standard applications with current from 100mA up to 6A
  • Compatible with Acti9 C120/C60H-DC
  • To be fixed with clips directly on the left of the MCB
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Declaration of conformity
Instruction sheet
Product environmental
Brochure
Product Page Link
Product Data Sheet
This Acti9 electrical auxiliary is a modular OC contact used as remote indication of the position of the associated device. In AC network, the In rated current is 6A at 24VAC to 240VAC and 3A at 415VAC with operating frequency of 50Hz to 60Hz. In DC network, the In rated current is 6A at 24VDC, 2A at 48VDC, 1.5A at 60VDC and 1A at 130VDC. It has 1 position switch with contacts type 1 C/O. It is intended for new or renovated installation in small commercial and buildings. This OC contact is compatible with Acti9 ranges such as C120, C60H-DC, SW60-DC, C60PV-DC, and xC60. The OF is either used for device short name or compatibility code. It has a screw clamp terminal connection at bottom. The connection allows rigid copper cable with a cable cross section of 0.5mm² to 2.5mm². It has a screw clamp terminal connection at bottom. The connection allows flexible copper cables (2 cables) with a cable cross section of 1.5mm². It has a screw clamp terminal connection at bottom. The connection allows flexible with ferrule copper cables (2 cables) with a cable cross section of 1.5mm². The Ui rated insulation voltage is up to 500V. It has a Uimp rated impulse withstand voltage of 4kV. It can be mounted on DIN rail for modular installation. The width in 9mm pitches is 1. The dimensions are (W) 9mm x (H) 85.3mm x (D) 68mm. The product colour is white. The product weight is 30g. The pollution degree is 3. The level of tropicalisation is treatment 2. The wire stripping length is 9mm. The tightening torque of connection is 1N.m (bottom) for PZ1 screwdriver type. The IP degree of protection is IP20. The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C. This product complies with EN/IEC 60947-5-1 and GB/T 14048.5 standards. It has EAC and CCC quality labels and certified with CE and UKCA certifications.

Products specifications

Attribute name Attribute value
Main
Device short name OF
Range Acti9
[In] rated current 0.1-1 A at 130 V, DC,  0.1-1.5 A at 60 V, DC,  0.1-2 A at 48 V, DC,  0.1-6 A at 24 V, DC,  0.1-3 A at 415 V, AC 50/60 Hz,  0.1-6 A at 24...240 V, AC 50/60 Hz,  0.1-6 A at 24...250 V, AC 50/60 Hz
Signal contacts composition 1 C/O
Product or component type OC contact
9 mm pitches 1
Complementary
Product compatibility single terminal
Tightening torque 1-1 N.m bottom
Colour white
[Uimp] rated impulse withstand voltage 4 kV
Compatibility code OF
Mounting mode clip-on
Wire stripping length 9 mm
Comb busbar and distribution block compatibility top: YES
Height 85.3 mm
Depth 68 mm
Market segment buildings, small commercial
Width 9 mm
[Ui] rated insulation voltage 500 V
Mounting location left side of circuit-breaker
Net weight 30 g
Connections - terminals screw clamp terminal (bottom) 2 cable(s) 1.5-1.5 mm² - flexible with ferrule, screw clamp terminal (bottom) 2 cable(s) 1.5-1.5 mm² - flexible, screw clamp terminal (bottom) 1 cable(s) 0.5-2.5 mm² - rigid
Range compatibility Acti9 xC60, Acti9 Acti9 C60PV-DC, Acti9 Acti9 SW60-DC, Acti9 Acti9 C60H-DC, Acti9 Acti9 C120
Mounting support DIN rail
Environment
Ambient air temperature for storage -40-85 °C
Pollution degree 3
IP degree of protection IP20
Tropicalisation 2
Ambient air temperature for operation -25-70 °C
Quality labels CCC, EAC
Standards GB/T 14048.5, EN/IEC 60947-5-1
Product certifications UKCA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 7.800 cm
Package 1 Length 9.400 cm
Package 1 Weight 36.700 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8.500 cm
Package 2 Width 10.000 cm
Package 2 Length 26.600 cm
Package 2 Weight 498.000 g
Unit Type of Package 3 3
Number of Units in Package 3 108
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 4.971 kg
