Picture of Acti9, Overvoltage release iMSU - threshold 255V to 400V
SKU:

A9N26500

Acti9, Overvoltage release iMSU - threshold 255V to 400V

$153.61
Available for Shipping : 10-Dec-2024
Acti9, Overvoltage release iMSU - threshold 255V to 400V
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Declaration of conformity
End of life manual
Product Page Link
Product Data Sheet

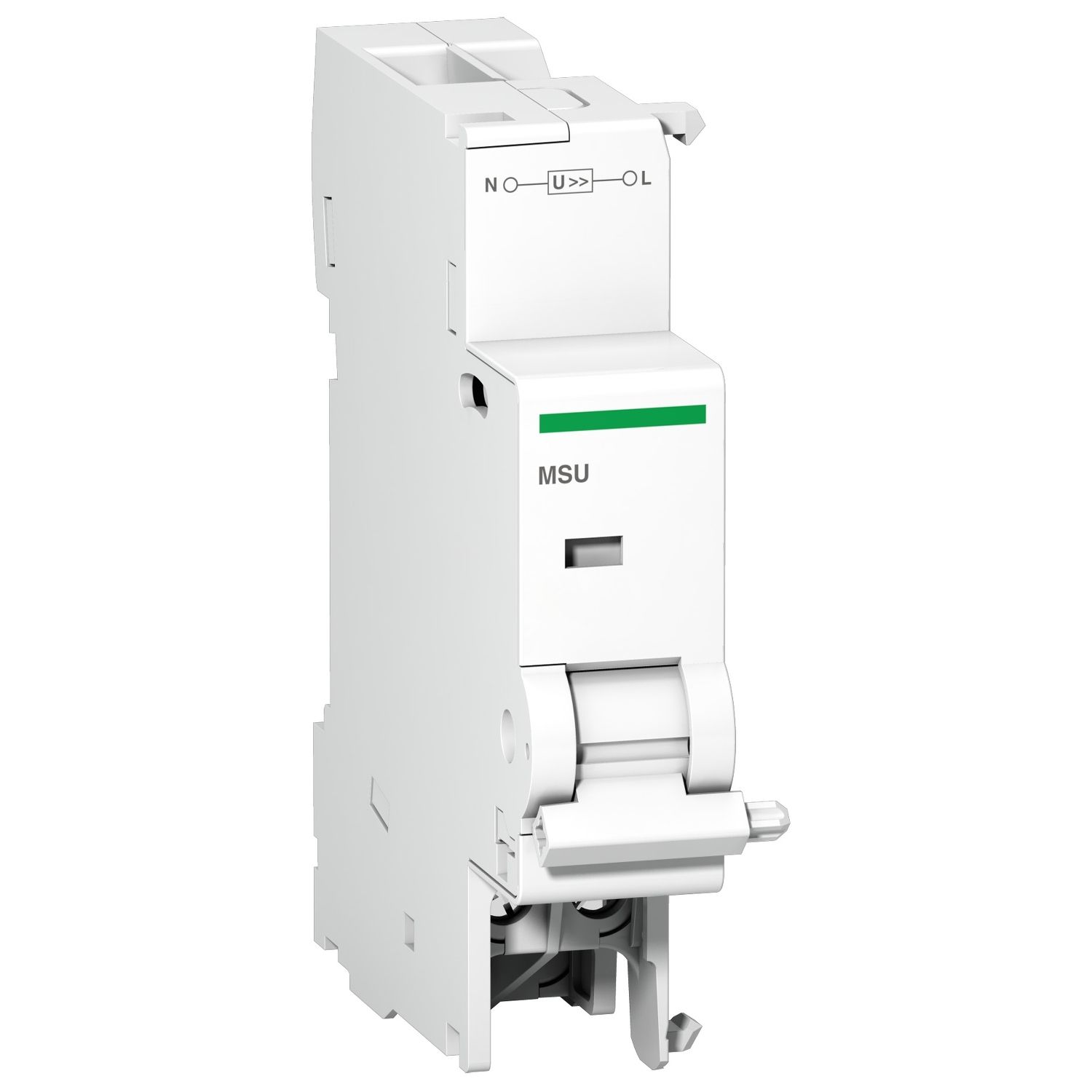

This MSU product is an overvoltage release auxiliary. It is mounting on left side of circuit-breaker. The Uc control circuit voltage is 230VAC with a 50/60Hz frequency. The dimensions are (W) 18mm x (H) 82.5mm x (D) 73.5mm.

Products specifications

Attribute name Attribute value
Main
Device short name MSU
Product compatibility DT40, ITG40, DPN Vigi, iDPN, C60, C40, C120, ID C40, IDc
Threshold tripping voltage 400 V 0.07...0.2 s, 350 V 0.25...0.75 s, 300 V 1...5 s, 275 V 3...15 s, 255 V
Range Acti9
Product or component type overvoltage release
9 mm pitches 2
Range of product ID, DPN Vigi, Librio, Clario, C120, ProDis, DPN
[Uc] control circuit voltage 230 V AC 50/60 Hz
Complementary
Tightening torque 1-1 N.m bottom
Depth 73.5 mm
Market segment residential, small commercial
Width 18 mm
Colour white
Local signalling action indicator
Compatibility code MSU
Mounting mode fixed
Connections - terminals screw clamp terminal (bottom) - 1 cable(s) 0.5-2.5 mm² - rigid, screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible with ferrule, screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible
Wire stripping length 10 mm for bottom connection, 9 mm
Net weight 66 g
Comb busbar and distribution block compatibility top: YES
Range compatibility Acti 9 Acti9 DPN, Acti 9 Acti9 ID, Acti 9 Acti9 ITG40, Acti 9 Acti9 IDc, Acti 9 Acti9 ID C40, Acti 9 Acti9 DT40, Acti 9 Acti9 DPN Vigi, Acti 9 Acti9 C60PV-DC, Acti 9 Acti9 C60NA-DC, Acti 9 Acti9 C60H-DC, Acti 9 Acti9 C40, Acti 9 Acti9 C120, Acti 9 Acti9 iDPN
Mounting support 35 mm symmetrical DIN rail
Height 82.5 mm
Environment
Quality labels CE
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Tropicalisation 2 conforming to EN/IEC 60947-5-1
Standards EN 50550
Ambient air temperature for operation -25-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.8 cm
Package 1 Width 8 cm
Package 1 Length 9.5 cm
Package 1 Weight 74 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 8.6 cm
Package 2 Width 10 cm
Package 2 Length 26.6 cm
Package 2 Weight 652 g
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 6.355 kg
