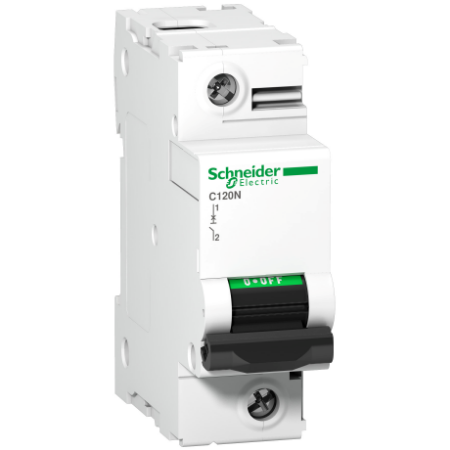

Picture of Acti9, Miniature circuit breaker (MCB), Acti9 C120N, 1P, 125A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
SKU:

A9N18359

Acti9, Miniature circuit breaker (MCB), Acti9 C120N, 1P, 125A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)

$94.10
Available for Shipping : 17-Nov-2024
Product Selector
Acti9, Miniature circuit breaker (MCB), Acti9 C120N, 1P, 125A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
  • Suitability for industrial isolation according to IEC/EN 60947-2 and IEC/EN 60898-1standard
  • Combine short-circuit and overload currents protection
  • Option to add auxiliaries, remote monitoring and residual current device (Vigi)
  • Faster, better and more flexible installation of device thanks to comb busbar
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
This Acti9 C120N is a low voltage multistandard miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 125A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 380VAC to 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 380VAC to 415VAC conforming to EN/IEC 60947-2 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. The presence of green strip guarantees contact open physically and allows work to be carried out safely on the downstream circuit. It has good overvoltage withstand capacity. The product is designed to offer a high industrial performance level It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is going from 380VAC to 415VAC. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 3 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 27mm x (H) 81mm x (D) 73mm. The weight is 0.205kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Suitability for isolation yes conforming to IEC 60947-2
Number of protected poles 1
Trip unit technology thermal-magnetic
Network type AC
Device short name C120N
Breaking capacity 10000 A Icn at 230...400 V AC 50/60 Hz conforming to EN/IEC 60898-1, 20 kA Icu at 12 V AC 50/60 Hz conforming to EN/IEC 60947-2, 10 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2, 10 kA Icu at <= 144 V DC conforming to EN/IEC 60947-2, 15 kA Icu at 125 V DC conforming to EN/IEC 60947-2, 15 kA Icu at 12 V DC conforming to EN/IEC 60947-2, 20 kA Icu at 130 V AC 50/60 Hz conforming to EN/IEC 60947-2, 3 kA Icu at 380...415 V AC 50/60 Hz IT conforming to EN/IEC 60947-2
Range Acti9
Curve code C
Range of product C120
Poles description 1P
Product name C120
Product or component type miniature circuit-breaker
Breaking capacity code N
[In] rated current 125 A at 30 °C
Complementary
[Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2
Compatibility code C120
Electrical durability 5000 cycles conforming to IEC 60947-2
Connections - terminals tunnel type terminals1.5-35 mm² flexible, tunnel type terminals1-50 mm² rigid
Comb busbar and distribution block compatibility YES
Earth-leakage protection without
Height 81 mm
[Ics] rated service breaking capacity 7500 A 75 % conforming to EN/IEC 60898-1 - 230...400 V AC 50/60 Hz, 15 kA 75 % conforming to EN/IEC 60947-2 - 12 V AC 50/60 Hz, 7.5 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz, 10 kA 100 % conforming to EN/IEC 60947-2 - <= 144 V DC, 15 kA 100 % conforming to EN/IEC 60947-2 - 12 V DC, 2.25 kA 75 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz, 15 kA 100 % conforming to EN/IEC 60947-2 - 125 V DC, 15 kA 75 % conforming to EN/IEC 60947-2 - 130 V AC 50/60 Hz
Locking options description handle sealable with cable diameter 0.7mm in OFF or ON position
Market segment residential, small commercial
[Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN/IEC 60947-2
Net weight 0.205 kg
Magnetic tripping limit 5...10 x In
9 mm pitches 3
Tightening torque 3.5-3.5 N.m
Colour white
Connection pitch 27 mm between devices
Mechanical durability 20000 cycles
Mounting mode clip-on
Control type toggle
Wire stripping length 15 mm
[Ue] rated operational voltage 12 V AC 50/60 Hz, 130 V AC 50/60 Hz, 230...400 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 12 V DC, <= 144 V DC, 125 V DC, 380...415 V AC 50/60 Hz
Depth 73 mm
Width 27 mm
Local signalling ON/OFF indication
Limitation class 3 conforming to EN/IEC 60947-2
Mounting support 35 mm symmetrical DIN rail
Contact position indicator yes
Network frequency 50/60 Hz
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Tropicalisation 2 conforming to IEC 60068-1
Operating altitude 2000 m
Overvoltage category IV
Product certifications EAC
Pollution degree 3 conforming to IEC 60947-2
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Standards EN/IEC 60947-2, EN/IEC 60898-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.500 cm
Package 1 Width 7.500 cm
Package 1 Length 8.500 cm
Package 1 Weight 194.700 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8.500 cm
Package 2 Width 9.500 cm
Package 2 Length 33.000 cm
Package 2 Weight 2.380 kg
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 14.659 kg
