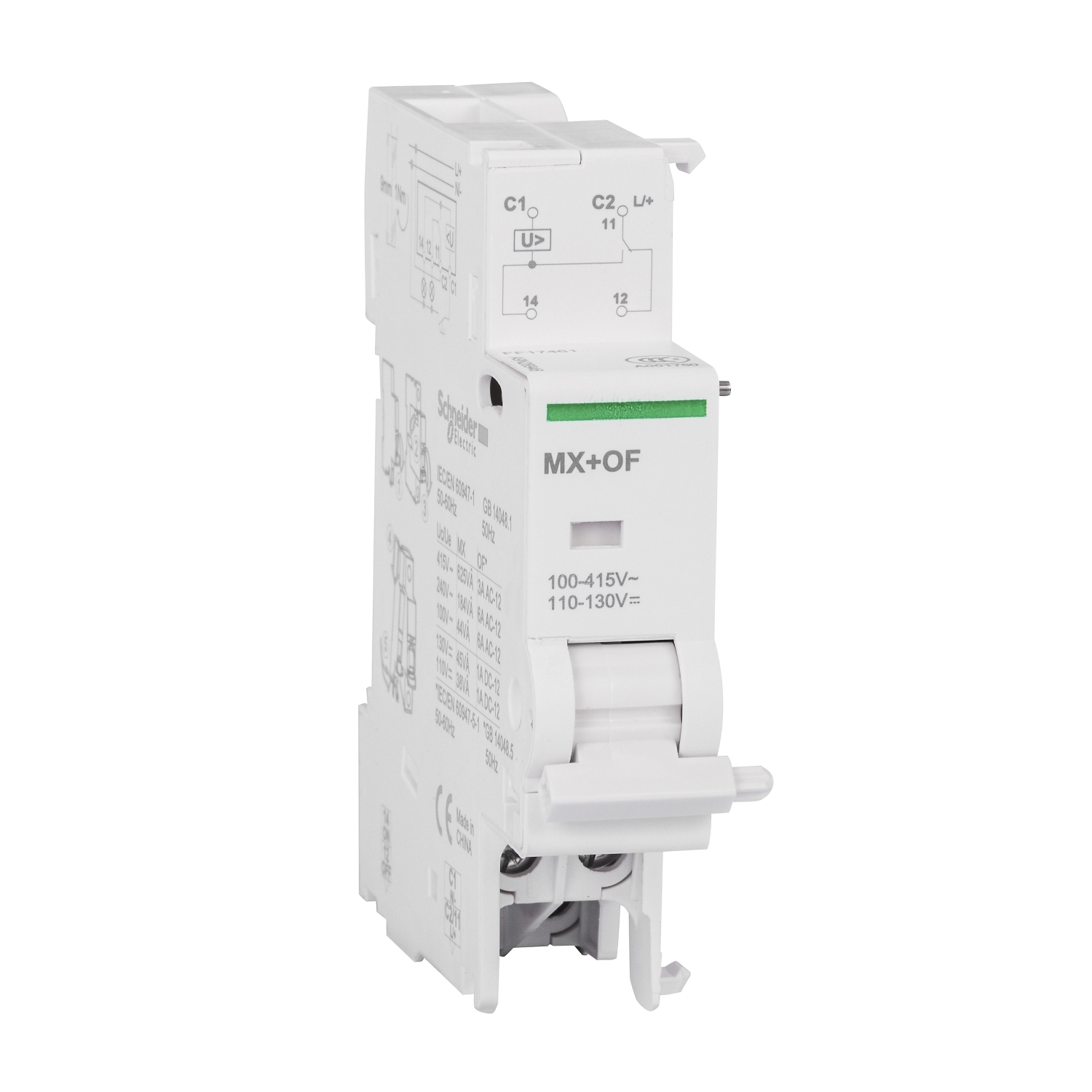

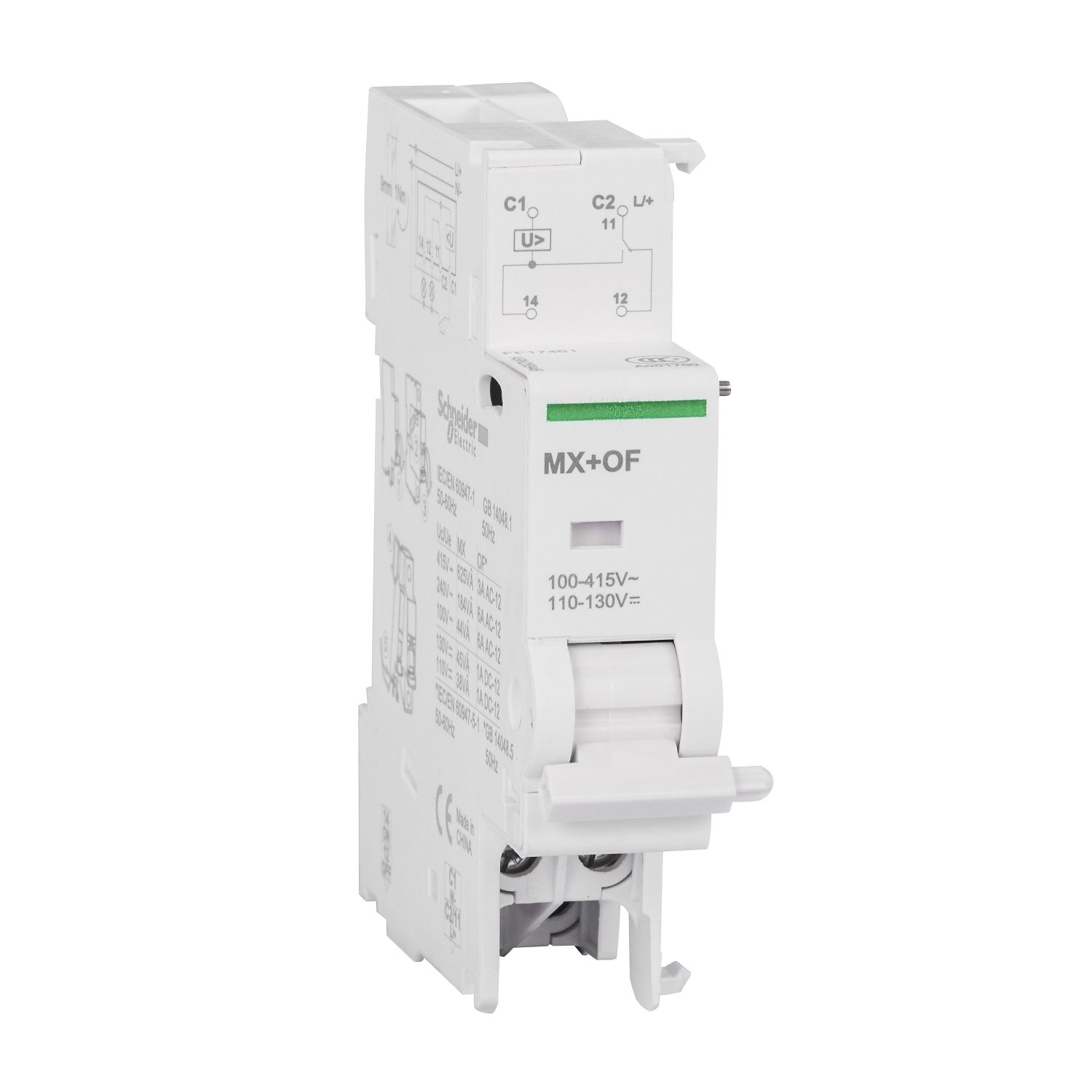

Picture of Acti9, shunt trip release with OC contact, MX+OF, voltage release, 100...415VAC
SKU:

A9N26946

Acti9, shunt trip release with OC contact, MX+OF, voltage release, 100...415VAC

$154.30
Available for Shipping : 17-Nov-2024
Acti9, shunt trip release with OC contact, MX+OF, voltage release, 100...415VAC
  • Trips the associated device when it is powered on
  • Includes an open/close contact (OF) to indicate the open or closed position of the device
  • Remote indication of the position of associated device
  • Compatible with Acti9 devices such as C60, C120, ID, C60H-DC, SW60-DC, C60PV-DC, and C60NA-DC
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Declaration of conformity
End of life manual
Product Page Link
Product Data Sheet
This Acti9 MX+OF electric tripping auxiliary is a shunt trip release with open/close auxiliary contact. It is dedicated to Acti9 C120, C60H-DC, DPN N Vigi. This device includes an open/close contact OF to indicate the position of the circuit breaker. It provides a remote indication of the position of the associated device. The product trips the associated device when it is powered on. Emergency stoppage by normally open pushbutton. The width in 9mm pitches is 2. The Ue rated operational voltage is 100VAC to 415VAC or 110VDC to 130VDC. The operating frequency is 50Hz or 60Hz. The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC. There is a mechanical state indicator light, red on the front face. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards and EN 62019-2 standard only for C120.

Products specifications

Attribute name Attribute value
Main
Device short name MX + OF
Product compatibility C120, ITG40, C40, ID C40, DPN Vigi, DT40, iDPN, DT60, C60, IDc
Signal contacts composition 1 C/O
Range Acti9
Product or component type shunt trip release with OC contact
9 mm pitches 2
Range of product ProDis, C60, Librio, Clario, DPN Vigi, C120, DPN, ID
[Uc] control circuit voltage 110...130 V DC, 100...415 V AC 50/60 Hz
Complementary
Tightening torque 1-1 N.m bottom
Depth 73.5 mm
Market segment residential, small commercial
Width 18 mm
Colour white
Local signalling action indicator
Compatibility code MX + OF
Mounting mode fixed
Connections - terminals screw clamp terminal (bottom) - 1 cable(s) 0.5-2.5 mm² - rigid, screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible with ferrule, screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible
Wire stripping length 9 mm for bottom connection
Net weight 65 g
Comb busbar and distribution block compatibility top: YES
Range compatibility Acti 9 Acti9 DPN, Acti 9 Acti9 ID, Acti 9 Acti9 ITG40, Acti 9 Acti9 IDc, Acti 9 Acti9 ID C40, Acti 9 Acti9 DT60, Acti 9 Acti9 DT40, Acti 9 Acti9 DPN Vigi, Acti 9 Acti9 C60PV-DC, Acti 9 Acti9 C60NA-DC, Acti 9 Acti9 C60H-DC, Acti 9 Acti9 C40, Acti 9 Acti9 C120, Acti 9 Acti9 iDPN
Mounting support 35 mm symmetrical DIN rail
Height 82.5 mm
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Tropicalisation 2 conforming to EN/IEC 60947-5-1
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -25-50 °C
Product certifications KEMA, LCIE, ASEFA, ASTA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.000 cm
Package 1 Width 3.000 cm
Package 1 Length 9.300 cm
Package 1 Weight 70.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 8.700 cm
Package 2 Width 10.000 cm
Package 2 Length 26.500 cm
Package 2 Weight 624.000 g
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 6.103 kg
