A9N26914

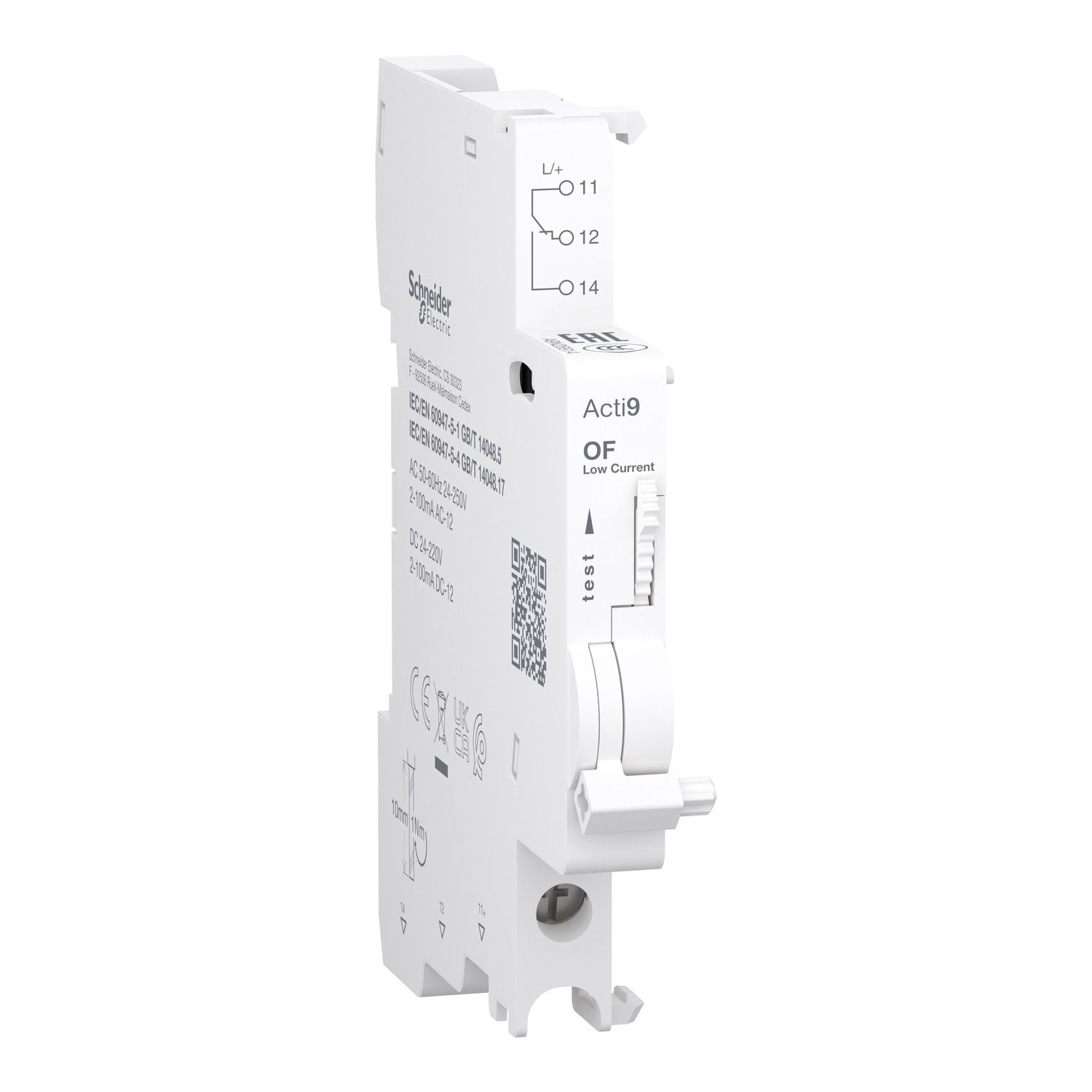

Auxiliary contact, Acti9 A9N, OF, 1 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, bottom connection

$98.12
Available for Shipping : 17-Nov-2024
Auxiliary contact, Acti9 A9N, OF, 1 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, bottom connection
  • Can report the signaling to an Open/Closed Devices status
  • Compatible with PLC network when I/O module needs a current from 2mA up to 100mA
  • Compatible with Acti9 C120/C60H-DC
  • To be fixed with clips directly on the left of the MCB
  • Monitoring up to 100 protective devices (permanently close) under daisy chain
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
Product environmental
Brochure
Product Page Link
Product Data Sheet
This Acti9 electrical auxiliary is a modular OC contact used as remote indication ot the position of the associated device. The rated current (In) is from 2mA to 100mA with operating frequency of 50Hz to 60Hz at 24VAC to 250VAC, and from 2mA to 100mA at 24VDC to 220VDC. It has 1 position switch with contacts type 1 C/O. It is intended for new or renovated installation in small commercial, buildings, critical buildings, healthcare, industry, data center and infrastructures. This OC contact is compatible with Acti9 ranges such as C120, C60H-DC, SW60-DC and C60PV-DC. The OF is either used for device short name or compatibility code. It has a screw clamp terminal connection at bottom. The connection allows rigid copper cable. The cable cross section capacity is from 1mm² to 4mm². It has a screw clamp terminal connection at bottom. The connection allows flexible copper cable. The cable cross section capacity is from 0.5mm² to 2.5mm². It has a screw clamp terminal connection at bottom. The connection allows rigid copper cables (2 cables). The cable cross section capacity is 2.5mm². It has a screw clamp terminal connection at bottom. The connection allows flexible with ferrule copper cables (2 cables). The cable cross section capacity is 1.5mm². The rated insulation voltage (Ui) is up to 500V. It has a rated impulse withstand voltage (Uimp) of 4kV. The width in 9mm pitches is 1. The dimensions are (W) 9mm x (H) 86mm x (D) 73mm. The product colour is white (RAL 9003). The pollution degree is 3. The level of tropicalisation is treatment 2. The tightening torque of connection is 1N.m (bottom) for PZ1 screwdriver type. According to IEC 60529 standard, the IP degree of protection is IP20. The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C. This product complies with EN/IEC 60947-5-1 and EN/IEC 60947-5-4 standards. This product is certified with CE and UKCA standards.

Products specifications

Attribute name Attribute value
Main
Device short name OF
Range Acti9
[In] rated current 2-100 mA at 220 V, DC,  2-100 mA at 130 V, DC,  2-100 mA at 60 V, DC,  2-100 mA at 48 V, DC,  2-100 mA at 24 V, DC,  2-100 mA at 24...240 V, AC 50/60 Hz
Signal contacts composition 1 C/O
Product or component type OC contact
9 mm pitches 1
Complementary
Product compatibility single terminal
Tightening torque 1-1 N.m bottom
Colour white
[Uimp] rated impulse withstand voltage 4 kV
Compatibility code OF
Mounting mode clip-on
Wire stripping length 9 mm
Comb busbar and distribution block compatibility top: YES
Height 85.3 mm
Depth 68 mm
Market segment infrastructures, data center, industry, healthcare, buildings, critical buildings, small commercial
Width 9 mm
[Ui] rated insulation voltage 500 V
Mounting location left side of circuit-breaker
Net weight 30 g
Connections - terminals screw clamp terminal (bottom) 2 cable(s) 1.5-1.5 mm² - flexible with ferrule, screw clamp terminal (bottom) 2 cable(s) 1.5-1.5 mm² - flexible, screw clamp terminal (bottom) 1 cable(s) 0.5-2.5 mm² - rigid
Operating mode daisy chain up to 100 devices
Range compatibility Acti9 xC60, Acti9 Acti9 C60PV-DC, Acti9 Acti9 SW60-DC, Acti9 Acti9 C60H-DC, Acti9 Acti9 C120
Mounting support DIN rail
Environment
Ambient air temperature for storage -40-85 °C
Pollution degree 3
IP degree of protection IP20
Tropicalisation 2
Ambient air temperature for operation -25-70 °C
Quality labels CCC, EAC
Standards GB/T 14048.17, GB/T 14048.5, EN/IEC 60947-5-4, EN/IEC 60947-5-1
Product certifications UKCA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.800 cm
Package 1 Width 7.600 cm
Package 1 Length 9.300 cm
Package 1 Weight 39.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8.700 cm
Package 2 Width 10.000 cm
Package 2 Length 23.400 cm
Package 2 Weight 520.000 g
Unit Type of Package 3 3
Number of Units in Package 3 120
Package 3 Height 26.900 cm
Package 3 Width 28.500 cm
Package 3 Length 38.700 cm
Package 3 Weight 6.000 kg
