Picture of Acti9, MX Shunt Trip MX plus 1 OF 48-130Vac dc
SKU:

A9N26947

Acti9, MX Shunt Trip MX plus 1 OF 48-130Vac dc

$154.30
Available for Shipping : 03-Dec-2024
Acti9, MX Shunt Trip MX plus 1 OF 48-130Vac dc
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Product environmental
End of life manual
Product Page Link
Product Data Sheet

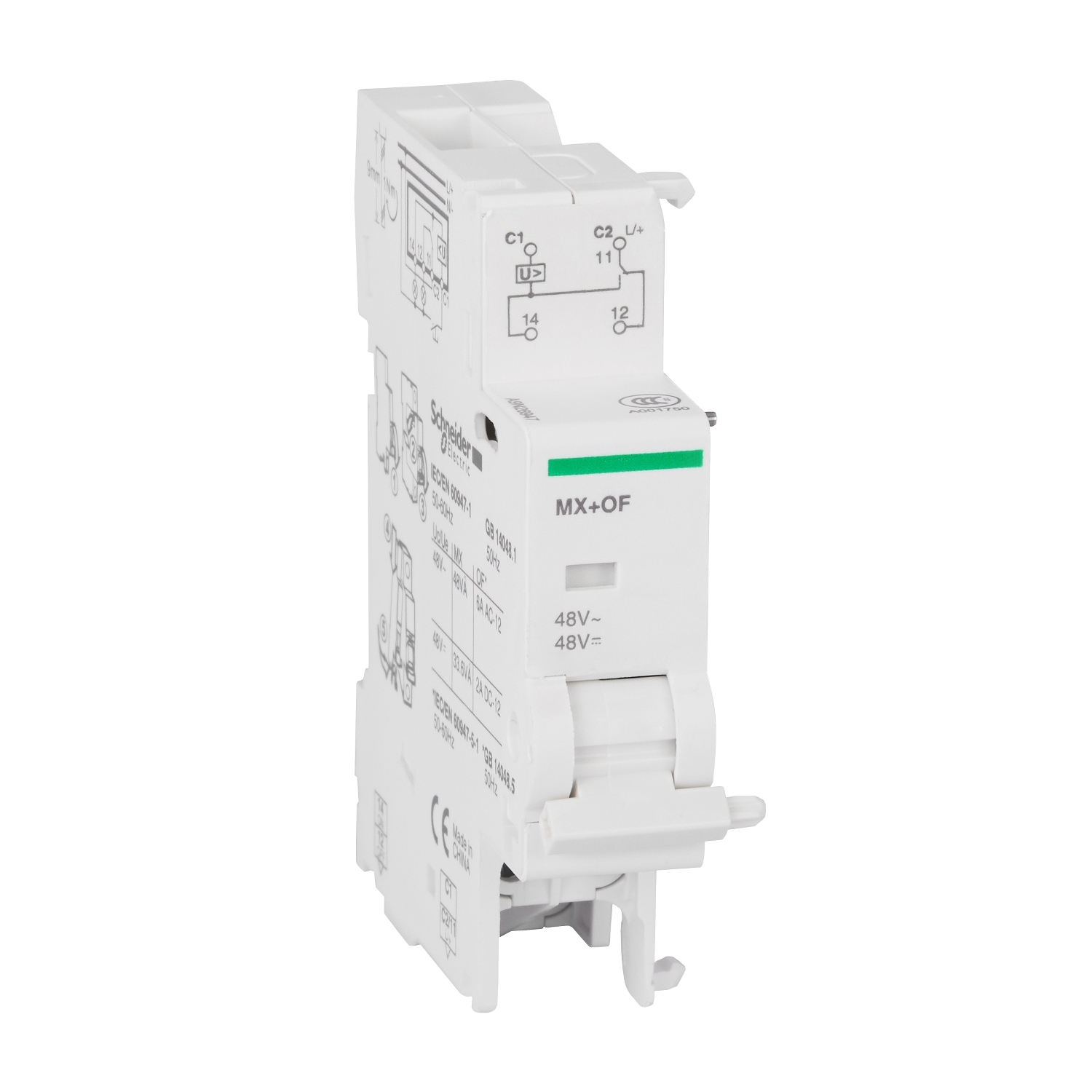

This MX+OF product is a shunt trip release auxiliary with an open close contact (OC). It is fixed on DIN rail. The Uc control circuit voltage is 48VAC with a 50/60Hz frequency, or 48VDC. The dimensions are (W) 18mm x (H) 82.5mm x (D) 73.5mm.

Products specifications

Attribute name Attribute value
Main
Device short name MX + OF
Product compatibility C40, IDc, C60, iDPN, ITG40, DPN Vigi, ID C40, C120, DT60, DT40
Signal contacts composition 1 C/O
Range Acti9
Product or component type shunt trip release with OC contact
9 mm pitches 2
Range of product ProDis, ID, Clario, C120, DPN, DPN Vigi, Librio, C60
[Uc] control circuit voltage 48 V DC, 48 V AC 50/60 Hz
Complementary
Tightening torque 1-1 N.m
Depth 73.5 mm
Market segment residential, small commercial
Width 18 mm
Colour white
Local signalling action indicator
Compatibility code MX + OF
Mounting mode fixed
Connections - terminals clamp terminal - 1 cable(s) 2.5-2.5 mm² - flexible
Wire stripping length 9 mm
Net weight 65 g
Comb busbar and distribution block compatibility top: YES
Range compatibility Acti 9 Acti9 DPN, Acti 9 Acti9 ID, Acti 9 Acti9 ITG40, Acti 9 Acti9 IDc, Acti 9 Acti9 ID C40, Acti 9 Acti9 DT60, Acti 9 Acti9 DT40, Acti 9 Acti9 DPN Vigi, Acti 9 Acti9 C60PV-DC, Acti 9 Acti9 C60NA-DC, Acti 9 Acti9 C60H-DC, Acti 9 Acti9 C40, Acti 9 Acti9 C120, Acti 9 Acti9 iDPN
Mounting support 35 mm symmetrical DIN rail
Height 82.5 mm
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Tropicalisation 2 conforming to EN/IEC 60947-5-1
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -25-50 °C
Product certifications ASTA, KEMA, ASEFA, LCIE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.900 cm
Package 1 Width 7.900 cm
Package 1 Length 9.300 cm
Package 1 Weight 73.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 8.500 cm
Package 2 Width 10.000 cm
Package 2 Length 26.500 cm
Package 2 Weight 640.000 g
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 6.244 kg
