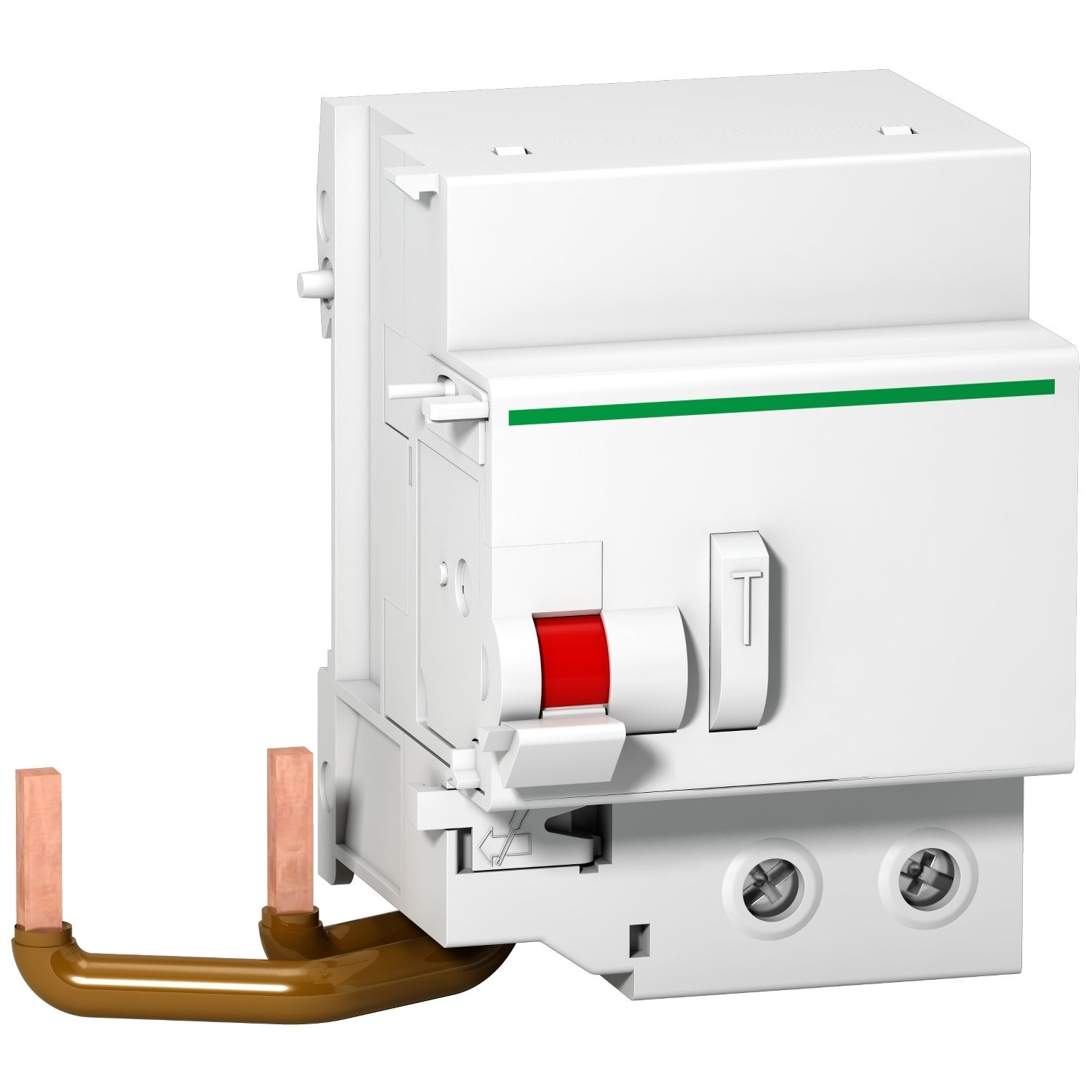

Picture of Acti 9 C120, earth leakage add-on block, 2P, 30 mA, class A
SKU:

A9N18572

Acti 9 C120, earth leakage add-on block, 2P, 30 mA, class A

$602.66
Available for Shipping : 24-Nov-2024
Acti 9 C120, earth leakage add-on block, 2P, 30 mA, class A
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
User guide
Product Page Link
Product Data Sheet
This Acti9 Vigi C120 is a modular add-on residual current device. It has 2P with 2 protected poles, rated current is 125A and operating voltage is 230VAC to 415VAC. The earth leakage protection class is A type with a sensitivity of 30mA and a voltage independent technology. This product protects against electrical shock by direct or indirect contact, and fire hazards. It has to be combined with a C120 circuit breaker. This product is compliant with EN 61009 standard. Electrical endurance goes up to 20000 cycles. The Ue rated operational voltage is from 230VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on 35 mm symmetrical DIN rail. The width in 9mm pitches is 7. The product colour is white (RAL9003). The dimensions are (W) 117mm x (H) 95mm x (D) 73mm. The weight is 325g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 60°C.

Products specifications

Attribute name Attribute value
Main
Device short name Vigi C120
Poles description 2P
Earth-leakage protection time delay instantaneous
Product or component type add-on residual current devices
Earth-leakage sensitivity 30 mA
Earth-leakage protection class type A
Network type AC
Range of product C120
[In] rated current 125 A
Complementary
[Ue] rated operational voltage 230...240 V AC 50/60 Hz
Product compatibility single terminal
Tightening torque 3.5-3.5 N.m
Depth 73 mm
Market segment residential, small commercial
Width 117 mm
Colour white
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2
Compatibility code Vigi C120
Mechanical durability 20000 cycles
Mounting mode clip-on
[Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to IEC 60947-1
Residual current tripping technology voltage independent
Electrical connection to mcb by screws
Wire stripping length 15 mm
Net weight 0.325 kg
9 mm pitches 7
Device location in system outgoer
Mounting support 35 mm symmetrical DIN rail
Connections - terminals tunnel type terminals 1-50 mm² rigid, tunnel type terminals 1-35 mm² flexible
Height 95 mm
Network frequency 50/60 Hz
Environment
Ambient air temperature for storage -40-60 °C
Pollution degree 3 conforming to IEC 60947-2
IP degree of protection IP20
Standards IEC/EN 61009-2-1, EN 61009
Ambient air temperature for operation -25-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.500 cm
Package 1 Width 13.300 cm
Package 1 Length 13.500 cm
Package 1 Weight 426.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.928 kg
