SKU:

29452

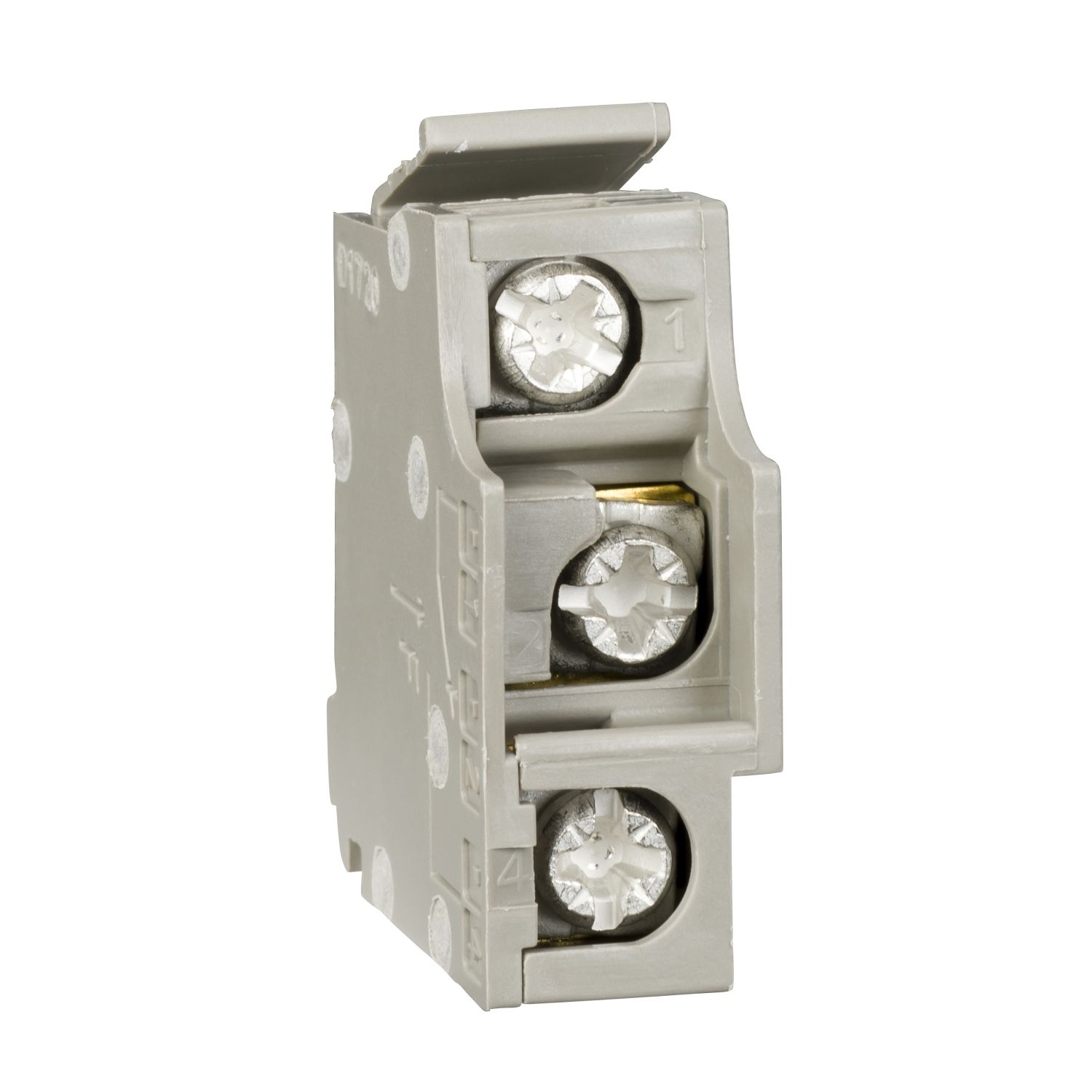

Low level auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type

$185.81

Qty:

Low level auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type

ComPacT NS and ComPacT NSX are ranges of circuit breakers for built-in power & energy metering

The solution covers ratings from 100 A to 3200 A

MicroLogic electronic control unit provides electrical measurement and analysis functions

Optimized range of auxiliaries and accessories, field installable

Flexible installation, in any position, in a switchboard or wall-mounted

New transparent front cover with visible auxiliaries

New toggle with ergonomic touch

Wireless auxiliary contact OF/SD in Zigbee

Sustainability with Green packaging and Green partnerships

Linked to Smart Panels, improves uptime with complete monitoring solution

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 26-Sep-2024

Instruction sheet

Product environmental

Catalogue

User guide

Declaration of conformity

Product Page Link

Product Data Sheet

It is a single low-level auxiliary contact that provides all the different indications remotely for Compact NSX, Compact NS, PowerPact Multistandard and EasyPact CVS circuit breakers. Remote status information are ON/OFF (OF), trip indication (SD) and fault-trip indication (SDE) for all circuit breakers types. The remote status information for trip indication due to an earth fault (SDV) is used for Compact NSX and PowerPact Multistandard. The contacts are installed in the device in dedicated slots. This auxiliary contact is a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 5A and the minimum load is 1MA at 4 VDC for utilization categories AC12/AC15/DC12/DC14. One device embeds 5 auxiliaries contact type. It complies with IEC 60947-5-1 standard.

Products specifications

Attribute name	Attribute value
Main
Device short name	SDE, OF, SDV, SD
Device application	breaker status monitoring
Range	ComPacT
Range of product	ComPact NS1600b...3200, ComPact NS630b...1600, ComPact NSX400...630 DC PV, ComPact NSX400...630 DC, ComPact NSX100...250 DC PV, ComPact NSX100...250 DC, ComPact NSX400...630, ComPact NSX100...250
Signal contacts composition	1 NO/NC
Product or component type	auxiliary contact
Range compatibility	ComPact ComPact NSX DC, PowerPact PowerPact Multistandard, EasyPact EasyPact CVS, ComPact ComPact NSX, ComPact Compact INV, ComPact ComPacT INS, ComPact ComPact NS1600b...3200, ComPact ComPact NS630b...1600
Complementary
Minimum load	1 mA at 4 V DC
[Ie] rated operational current	DC-14: 0.03 A at 250 V DC, DC-14: 0.05 A at 110 V DC, DC-14: 0.2 A at 48 V DC, DC-14: 1 A at 24 V DC, DC-12: 0.3 A at 250 V DC, DC-12: 0.6 A at 110 V DC, DC-12: 2.5 A at 48 V DC, DC-12: 5 A at 24 V DC, AC-15: 1 A at 480 V AC 50/60 Hz, AC-15: 1.5 A at 380/440 V AC 50/60 Hz, AC-15: 2 A at 220/240 V AC 50/60 Hz, AC-15: 2.5 A at 110 V AC 50/60 Hz, AC-15: 3 A at 48 V AC 50/60 Hz, AC-15: 3 A at 24 V AC 50/60 Hz, AC-12: 5 A at 480 V AC 50/60 Hz, AC-12: 5 A at 380/440 V AC 50/60 Hz, AC-12: 5 A at 220/240 V AC 50/60 Hz, AC-12: 5 A at 110 V AC 50/60 Hz, AC-12: 5 A at 48 V AC 50/60 Hz, AC-12: 5 A at 24 V AC 50/60 Hz
Auxiliary contacts type	low level
Mounting mode	clip-on
Fault type	general electric fault
Local signalling	fault trip for electrical fault, trip indicator for relay trip indicator, ON/OFF indication for open/close
Accessory / separate part category	spare part for Compact NS1600b...3200, spare part for Compact NS630b...1600
[Ith] conventional free air thermal current	5 A
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	1.400 cm
Package 1 Width	7.800 cm
Package 1 Length	6.000 cm
Package 1 Weight	24.000 g
Unit Type of Package 2	2
Number of Units in Package 2	10
Package 2 Height	5.000 cm
Package 2 Width	14.500 cm
Package 2 Length	17.000 cm
Package 2 Weight	243.000 g
Unit Type of Package 3	3
Number of Units in Package 3	100
Package 3 Height	15.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	2.728 kg
Unit Type of Package 4	4
Number of Units in Package 4	1600
Package 4 Height	43.000 cm
Package 4 Width	80.000 cm
Package 4 Length	120.000 cm
Package 4 Weight	38.400 kg
