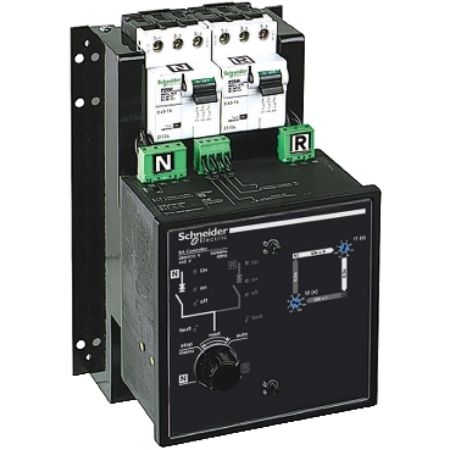

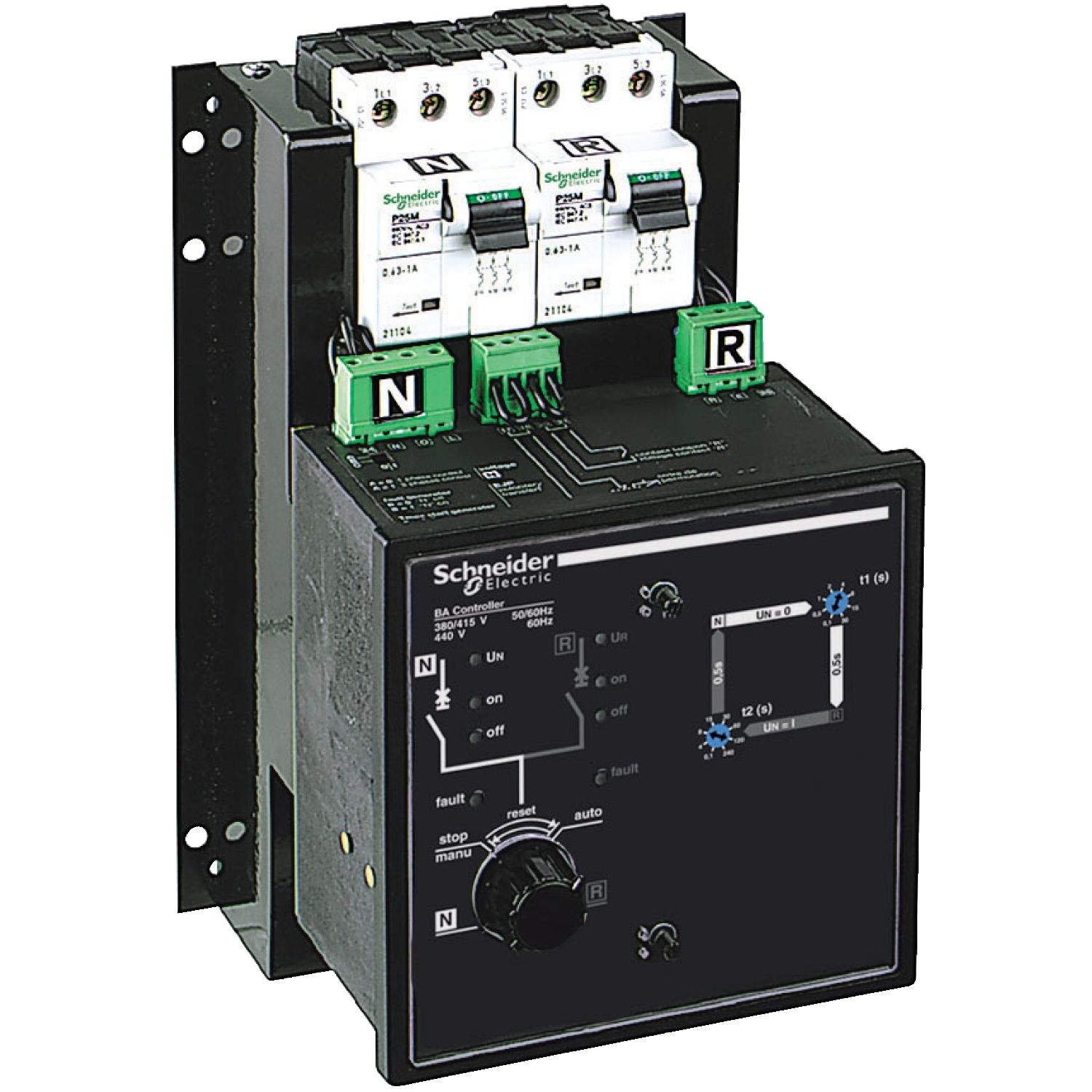

ACP&BA controller, remote control unit for TransferPacT, 380…415V 50/60Hz, 440V 60Hz,

Old price: $3,656.40 INC GST
$2,990.94 INC GST
Available for Shipping : 06-Jan-2026
ACP&BA controller, remote control unit for TransferPacT, 380…415V 50/60Hz, 440V 60Hz,
  • Control system plate.
  • Perform Electrical interlocking.
  • Customized running scenarios.
  • Compatible with manual source changeover in TransferPacT family.
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Instruction sheet
Catalog
Product Page Link
Product Data Sheet
It is a remote controlled source changeover system for Compact NSX, Compact NS and Masterpact devices. It is composed of an ACP plate and of an integrated BA controller. This ACP provides in a single unit the protection of the controller, the control and the connection to the devices. The BA controller is used to create simple source-changeover system that switch from one source to another depending on the presence of voltage UN on the “Normal” source. The BA controller is generally used to manage two permanent sources. The control voltage is from 380VAC to 415VAC 50/60Hz, or 440VAC 60Hz.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 440 V AC at 60 Hz, 380...415 V AC at 50/60 Hz
Device short name ACP + BA
Product or component type interface and control unit
Accessory / separate part category interlocking accessory
Range compatibility Masterpact MasterPact NW circuit breaker, Masterpact MasterPact NT circuit breaker, ComPact ComPact NSX circuit breaker, ComPact ComPact NS circuit breaker
Range of product NSX100...250, MasterPact NW, ComPact NS630b...1600, NSX400...630, MasterPact NT, Compact NS100...630
Complementary
Product compatibility Compact NSX400...630, Compact NS630b...1600, Compact NSX100...250
Local signalling off, fault trip, on
Test function by opening the P25M circuit breaker supplying the controller
Input type contacts customer voluntary order to transfer to source R
Compatibility code ACP+BA
[Ie] rated operational current DC-13: 2 A AC 24 V, DC-12: 8 A DC 24 V, DC-12: 2 A DC 48 V, DC-12: 0.6 A DC 110 V, DC-12: 0.4 A DC 250 V, AC-15: 5 A AC 48 V, AC-15: 5 A AC 24 V, AC-15: 4 A AC 110 V, AC-15: 3 A AC 220/240 V, AC-14: 5 A AC 48 V, AC-14: 5 A AC 24 V, AC-14: 4 A AC 220/240 V, AC-14: 4 A AC 110 V, AC-13: 7 A AC 48 V, AC-13: 7 A AC 24 V, AC-13: 6 A AC 220/240 V, AC-13: 6 A AC 110 V, AC-12: 8 A AC 48 V, AC-12: 8 A AC 24 V, AC-12: 8 A AC 220/240 V, AC-12: 8 A AC 110 V, AC-12: 5 A AC 380/415 V, AC-12: 4 A AC 440 V
Selection modes circuit breaker on R, circuit breaker on N
Output type contacts customer: indication of operation in automatic or stop mode
Operating mode forced operation on normal source, forced operation on replacement source, stop (both normal and replacement source off), automatic operation
Complementary function additional contact: transfer to replacement source only if contact is closed, voluntary transfer to replacement source (e.g. energy management commands)
[Ith] conventional free air thermal current 8 A
Interlocked device Compact NS100...630, NSX400...630, Compact NS630b...1600, NSX100...250, MasterPact NT, MasterPact NW
Environment
IP degree of protection IP30 side: conforming to EN 60529, IP40 front: conforming to EN 60529, IP20 connectors: conforming to EN 60529
Standards IEC 947-5-1
IK degree of protection front: IK07 conforming to EN 50102
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.6 cm
Package 1 Width 16.5 cm
Package 1 Length 27.9 cm
Package 1 Weight 3.892 kg
