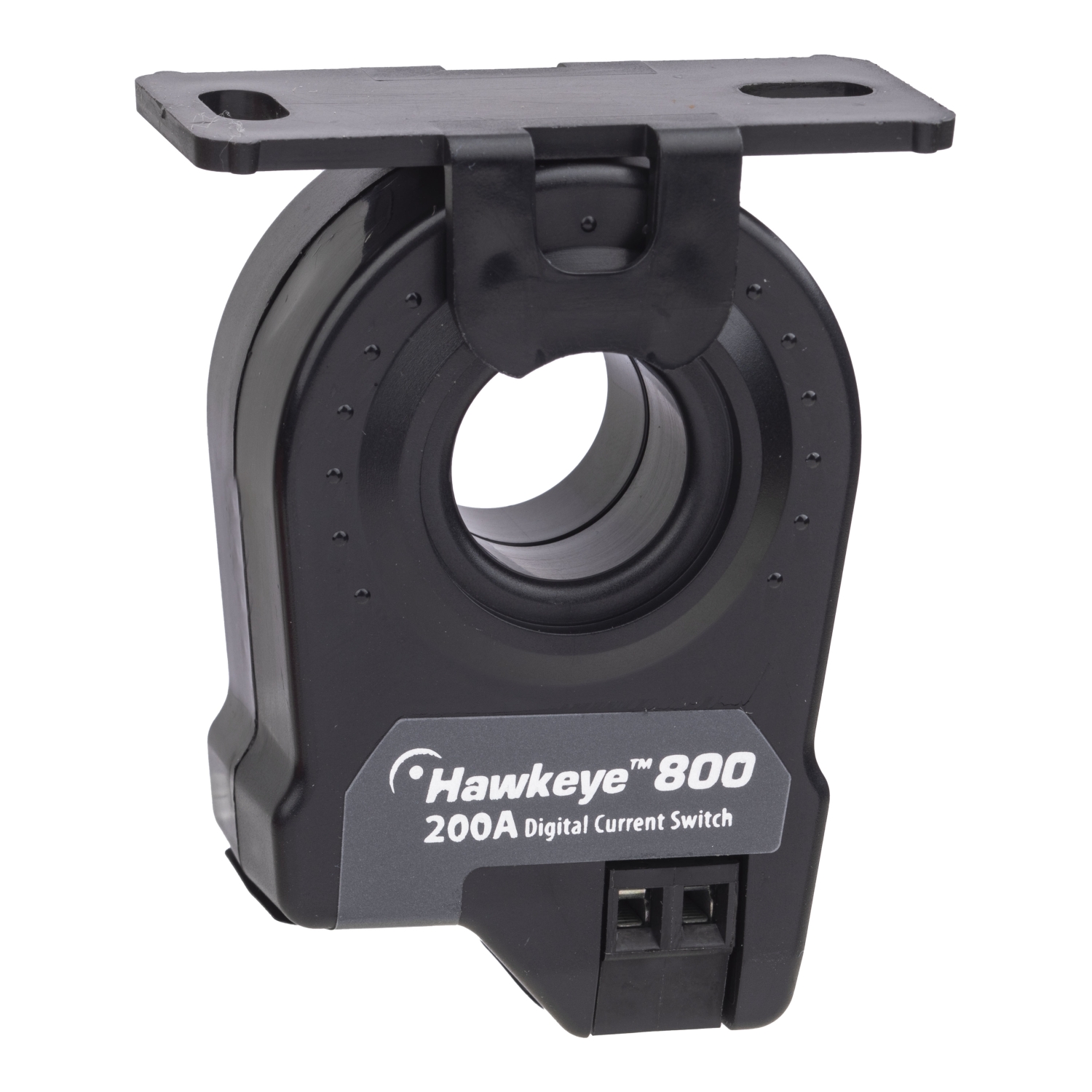

Picture of Current Switch: Solid Core, H800-S6, 0.25 to 200 A continuous, N.O. 1.0 A at 30 VAC/VDC, not polarity sensitive, Fixed (0.25 A or less)
SKU:

3240106000

Current Switch: Solid Core, H800-S6, 0.25 to 200 A continuous, N.O. 1.0 A at 30 VAC/VDC, not polarity sensitive, Fixed (0.25 A or less)

Please Contact Sales to buy this Product. click here
Current Switch: Solid Core, H800-S6, 0.25 to 200 A continuous, N.O. 1.0 A at 30 VAC/VDC, not polarity sensitive, Fixed (0.25 A or less)
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Catalogue
Product environmental
Product Page Link
Product Data Sheet
The Schneider Electric range of current sensors delivers high performance and reliable current montoring solution for HVAC applications. The current switches are ideal solutions for applications including fan status, belt loss and most variable speed (VSD) applications. Current switches detect changes in a conductor's current/amperage and provide a digital output to Building management system (BMS) controller. The current switches are available in solid core versions for new projects and split core versions to accommodate retrofits. The Schneider current sensors are of highest quality and reliability with best in class ergonomics for easy installation. The products are CE certified. Jumperless design and self gripping iris for easy installation. High performance reliable sensors with jumperless and self gripping iris design ensure hasslefree installation. A wide range of product portfolio with low set point suitable for most of new as well as retrofit installation.

Products specifications

Attribute nameAttribute value
Main
Device applicationbuilding automation systems
Opening diameter18 mm
Output typeswitch output
Relative humidity10-90 % RH, non-condensing
Sensor typecurrent switch, AC
Output current1 A at 30 V AC/DC
Current measurement range0.25...200 A
AWG gaugeAWG 24...AWG 14
Product or component typesensor
Type of measurementAC current
Targeted regionAsia Pacific., Europe
Mounting supportsolid core housing
Range of productHX00 Series
Ambient air temperature for operation-40-50 °C
Network frequency50...60 Hz
Product certificationsCE, UL
SetpointYes
Sensor modelH800-S6
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height2.9 cm
Package 1 Width5.8 cm
Package 1 Length7.0 cm
Package 1 Weight90.7 g
