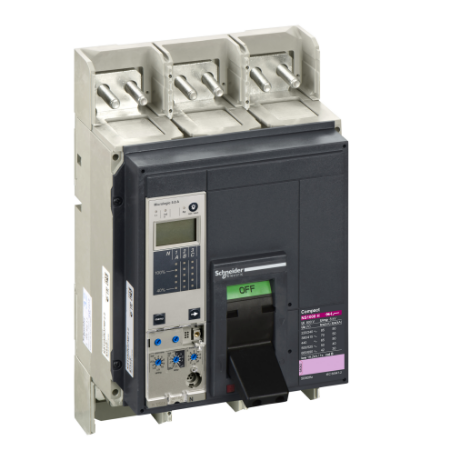

Picture of Circuit breaker, ComPact NS1000H, 70kA/415VAC, Micrologic 5.0A trip unit, 1000A, fixed, 3 poles 3d
SKU:

33348

Circuit breaker, ComPact NS1000H, 70kA/415VAC, Micrologic 5.0A trip unit, 1000A, fixed, 3 poles 3d

$11,454.24
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Circuit breaker, ComPact NS1000H, 70kA/415VAC, Micrologic 5.0A trip unit, 1000A, fixed, 3 poles 3d
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
User guide
End of life manual
Catalogue
Product environmental
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Trip unit technology electronic
Device short name Compact NS1000H
Device application distribution
Breaking capacity code H 70 kA 415 V AC
Poles description 3P
Suitability for isolation yes conforming to EN/IEC 60947-2
Breaking capacity 50 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 42 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Mounting mode fixed
Utilisation category category B
Control type rotary handle, toggle
Range ComPacT
Product name ComPact NS
Product or component type circuit breaker
Protected poles description 3D
Network type AC
Trip unit protection functions LSI
[Ue] rated operational voltage 690 V AC 50/60 Hz
Range of product ComPact NS630b...1600
Trip unit name MicroLogic 5.0 A
[In] rated current 1000 A at 50 °C
Network frequency 50/60 Hz
Complementary
Power losses 22 W
Short-time pick-up adjustment type Isd adjustable 9 settings
[Icw] rated short-time withstand current 19.2 kA 1 s conforming to IEC 60947-2
Depth 147 mm
Display type LCD display
Width 210 mm
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
Connection pitch 70 mm
[Isd] short-time pick-up adjustment range 1.5...10 x Ir
Compatibility code NS1000
Mechanical durability 10000 cycles
Local signalling 1 LED (yellow) for overload, 4 LEDs (red) for fault indication
Trip unit rating 1000-1000 A at 50 °C
[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-2
[tsd] short-time delay adjustment range 0-0.4 s I²t=off, 0.1-0.4 s I²t=on
Upside connection front
Long time pick-up adjustment type Ir adjustable 9 settings
Long time pick-up adjustment range 0.4...1 x In
Short-time delay adjustment type adjustable
Electrical durability 6000 cycles at 440 V In/2, 5000 cycles at 440 V In, 4000 cycles at 690 V In/2, 2000 cycles at 690 V In
[tr] long-time delay adjustment range 0.7-16.6 s at 7.2 x Ir, 0.5-24 s at 6 x Ir, 12.5-600 s at 1.5 x Ir
Net weight 14 kg
Zone selective interlocking ZSI with
Instantaneous pick-up adjustment type Ii adjustable
Long time delay adjustment type adjustable 9 settings
Protection type I : for instantaneous short-circuit protection, S : for short time short-circuit protection, L : for overload protection (long time)
Downside connection front
Type of measurement ammeter
Instantaneous pick-up adjustment range off, 2...15 x In
Mounting support backplate
Earth-leakage protection without
Thermal memory 20 mn
Auxiliary contact composition 1 NO/NC
Height 327 mm
[Ics] rated service breaking capacity 50 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 40 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 30 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Environment
Operating altitude 2000 m...5000 m with derating, 0...2000 m without derating
Relative humidity 0-95 %
Ambient air temperature for storage -40-85 °C
Pollution degree 3 conforming to IEC 60947
IP degree of protection IP40 conforming to IEC 60529
Standards EN/IEC 60947-2
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to EN 50102
Product certifications ASEFA, ASTA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 37.0 cm
Package 1 Width 39.5 cm
Package 1 Length 23.0 cm
Package 1 Weight 11.892 kg
