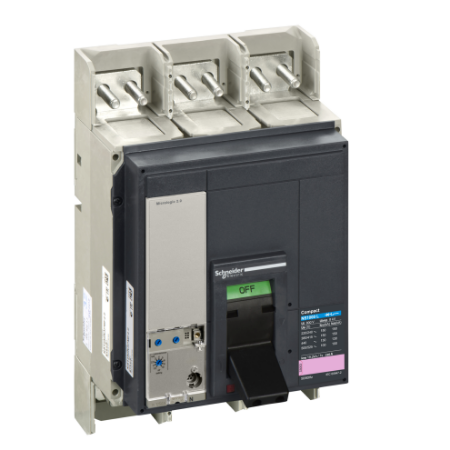

Picture of Circuit breaker, ComPact NS1000L, 150kA/415VAC, Micrologic 2.0 trip unit, 1000A, fixed, 3 poles 3d
SKU:

33474

Circuit breaker, ComPact NS1000L, 150kA/415VAC, Micrologic 2.0 trip unit, 1000A, fixed, 3 poles 3d

$17,756.42
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Circuit breaker, ComPact NS1000L, 150kA/415VAC, Micrologic 2.0 trip unit, 1000A, fixed, 3 poles 3d
  • ComPact NS is a range of circuit breakers for built-in power & energy metering
  • The solution covers ratings from 630 A to 3200 A
  • Micrologic electronic control unit provides electrical measurement and analysis functions
  • ComPact NS offers an optimized range of auxiliaries and accessories, field installable
  • Flexible installation, in any position, in a switchboard or wall-mounted
  • Sustainability with Green packaging and Green partnerships
  • Linked to Smart Panels, improves uptime with complete monitoring solution
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
User guide
End of life manual
Product environmental
Product Page Link
Product Data Sheet
This Compact NS1000L is a complete 3 poles fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 150kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. The circuit breaker can be manually operated with ON, OFF or "push to trip" buttons. This product embeds an electronic Micrologic 2.0 trip unit, with 1000A rating. Micrologic 2.0 trip unit provides adjustable long time and instantaneous protections. This 3 poles version (327mm x 210mm x 147mm) comes with a variety of optional functions and accessories. It is compliant with IEC 69947-1 and IEC60947-2 international standards and marine specifications. ComPact NS1000L is part of Schneider Electric EcoStruxure Power architecture.

Products specifications

Attribute name Attribute value
Main
Device short name Compact NS1000L
Device application distribution
Breaking capacity code L 150 kA 415 V AC
Suitability for isolation yes conforming to EN/IEC 60947-2
Breaking capacity 100 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 150 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 150 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 130 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
Mounting mode fixed
Control type toggle, rotary handle
Range ComPacT
Protected poles description 3D
Range of product ComPact NS630b...1600
Trip unit name MicroLogic 2.0
Trip unit technology electronic
Poles description 3P
Utilisation category category A
Product name ComPact NS
Product or component type circuit breaker
Network type AC
Trip unit protection functions LI
[Ue] rated operational voltage 690 V AC 50/60 Hz
[In] rated current 1000 A at 50 °C
Network frequency 50/60 Hz
Complementary
Power losses 34 W
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
Connection pitch 70 mm
Compatibility code NS1000
Mechanical durability 10000 cycles
Trip unit rating 1000-1000 A at 50 °C
Upside connection front
Long time pick-up adjustment type Ir adjustable 9 settings
Long time pick-up adjustment range 0.4...1 x In
Electrical durability 4000 cycles at 440 V In/2, 3000 cycles at 440 V In, 3000 cycles at 690 V In/2, 2000 cycles at 690 V In
Zone selective interlocking ZSI without
Protection type I : for instantaneous short-circuit protection, L : for overload protection (long time)
Downside connection front
Earth-leakage protection without
Thermal memory 20 mn
Height 327 mm
[Ics] rated service breaking capacity 150 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 150 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 130 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2
Depth 147 mm
Width 210 mm
Local signalling 1 LED (yellow) for overload, 4 LEDs (red) for fault indication
[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-2
[tr] long-time delay adjustment range 0.7-16.6 s at 7.2 x Ir, 0.5-24 s at 6 x Ir, 12.5-600 s at 1.5 x Ir
Net weight 14 kg
Instantaneous pick-up adjustment type Ii adjustable
Long time delay adjustment type adjustable 9 settings
Instantaneous pick-up adjustment range 1.5...10 x Ir
Mounting support backplate
Auxiliary contact composition 1 NO/NC
Environment
Relative humidity 0-95 %
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60947
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to EN 50102
Operating altitude 2000 m...5000 m with derating, 0...2000 m without derating
Standards EN/IEC 60947-2
Product certifications ASTA, ASEFA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 37.0 cm
Package 1 Width 39.0 cm
Package 1 Length 23.0 cm
Package 1 Weight 13.155 kg
