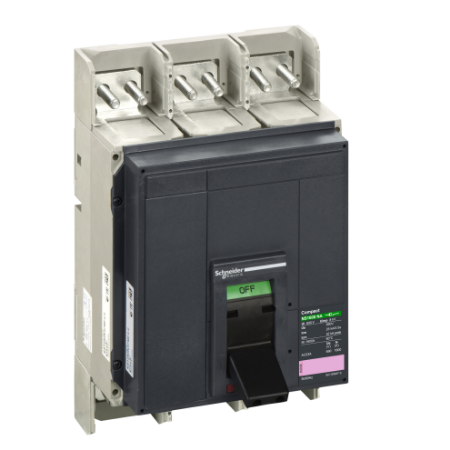

Picture of Switch disconnector, ComPact NS1600NA, fixed, front connected, manually operated, 1600A, 3P, complete device
SKU:

33490

Switch disconnector, ComPact NS1600NA, fixed, front connected, manually operated, 1600A, 3P, complete device

$11,177.88
Available for Shipping : 08-Dec-2024
Product Selector
Switch disconnector, ComPact NS1600NA, fixed, front connected, manually operated, 1600A, 3P, complete device
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
End of life manual
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name Compact NS1600 NA
Device application distribution
Suitability for isolation yes conforming to IEC 60947-3
Range ComPacT
Offer type C4
Range of product NS630b...1600
Poles description 3P
Product name ComPact NS
Product or component type switch disconnector
Breaking capacity code NA
Network type AC
Complementary
[Icw] rated short-time withstand current 4 kA during 20 s conforming to IEC 60947-3, 25 kA during 0.5 s conforming to IEC 60947-3
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-3
Compatibility code NS1600
[Ie] rated operational current AC-23A: 1600 A AC 50/60 Hz 660/690 V, AC-23A: 1600 A AC 50/60 Hz 500/525 V, AC-23A: 1600 A AC 50/60 Hz 440/480 V, AC-23A: 1600 A AC 50/60 Hz 380/415 V, AC-23A: 1600 A AC 50/60 Hz 220/240 V
Electrical durability 1000 cycles 440 V AC 50/60 Hz conforming to IEC 60947-3
Mounting mode fixed
Upside connection front
Control type toggle
Downside connection front
[Ith] conventional free air thermal current 1600 A at 60 °C
Connection pitch 115 mm
Height 327 mm
Depth 147 mm
Width 210 mm
Mechanical durability 6000 cycles conforming to IEC 60947-3
[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-3
[Icm] rated short-circuit making capacity 52 kA 690 V AC at 50/60 Hz
Net weight 14 kg
Visible break no
Contact position indicator yes
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-3
Network frequency 50/60 Hz
Environment
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60947-3
Ambient air temperature for operation -25-70 °C
Standards IEC 60947-3
Product certifications ASEFA, ASTA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 30.000 cm
Package 1 Width 40.000 cm
Package 1 Length 60.000 cm
Package 1 Weight 13.862 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 45.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 70.048 kg
