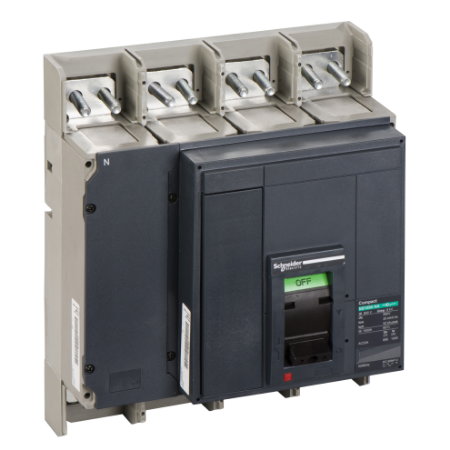

Picture of Switch disconnector, ComPact NS1000NA, fixed, front connected, manually operated, 1000A, 4P, complete device
SKU:

33493

Switch disconnector, ComPact NS1000NA, fixed, front connected, manually operated, 1000A, 4P, complete device

$8,790.60
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Switch disconnector, ComPact NS1000NA, fixed, front connected, manually operated, 1000A, 4P, complete device
  • ComPacT NS is a range of circuit breakers for built-in power & energy metering
  • The solution covers ratings from 630 A to 3200 A
  • MicroLogic electronic control unit provides electrical measurement and analysis functions
  • ComPacT NS offers an optimized range of auxiliaries and accessories, field installable
  • Flexible installation, in any position, in a switchboard or wall-mounted
  • New transparent front cover with visible auxiliaries
  • New toggle with ergonomic touch and optional LED blinking in trip position
  • Wireless auxiliary contact OF/SD in Zigbee
  • Sustainability with Green packaging and Green partnerships
  • Linked to Smart Panels, improves uptime with complete monitoring solution
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
End of life manual
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
This Compact NS1000NA is a 4 poles complete fixed front-connected switch disconnector. It is used to control and isolate electrical distribution circuits. This device is a fixed version and is manually operated. The operational current is 1000A (AC23A) and the operational voltage is 690V 50/60Hz. The dimensions are 327mm (width), 280mm (height) and 147mm (depth). This device complies with IEC 60947-3 standard.

Products specifications

Attribute name Attribute value
Main
Device short name Compact NS1000 NA
Device application distribution
Suitability for isolation yes conforming to IEC 60947-3
Range ComPacT
Offer type C4
Range of product NS630b...1600
Poles description 4P
Product name ComPact NS
Product or component type switch disconnector
Breaking capacity code NA
Network type AC
Complementary
[Icw] rated short-time withstand current 4 kA during 20 s conforming to IEC 60947-3, 25 kA during 0.5 s conforming to IEC 60947-3
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-3
Compatibility code NS1000
[Ie] rated operational current AC-23A: 1000 A AC 50/60 Hz 660/690 V, AC-23A: 1000 A AC 50/60 Hz 500/525 V, AC-23A: 1000 A AC 50/60 Hz 440/480 V, AC-23A: 1000 A AC 50/60 Hz 380/415 V, AC-23A: 1000 A AC 50/60 Hz 220/240 V
Electrical durability 1000 cycles 440 V AC 50/60 Hz conforming to IEC 60947-3
Mounting mode fixed
Upside connection front
Control type toggle
Downside connection front
[Ith] conventional free air thermal current 1000 A at 60 °C
Connection pitch 70 mm
Height 327 mm
Depth 147 mm
Width 280 mm
Mechanical durability 6000 cycles conforming to IEC 60947-3
[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-3
[Icm] rated short-circuit making capacity 52 kA 690 V AC at 50/60 Hz
Net weight 18 kg
Visible break no
Contact position indicator yes
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-3
Network frequency 50/60 Hz
Environment
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60947-3
Ambient air temperature for operation -25-70 °C
Standards IEC 60947-3
Product certifications ASEFA, ASTA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 30 cm
Package 1 Width 40 cm
Package 1 Length 60 cm
Package 1 Weight 15.355 kg
