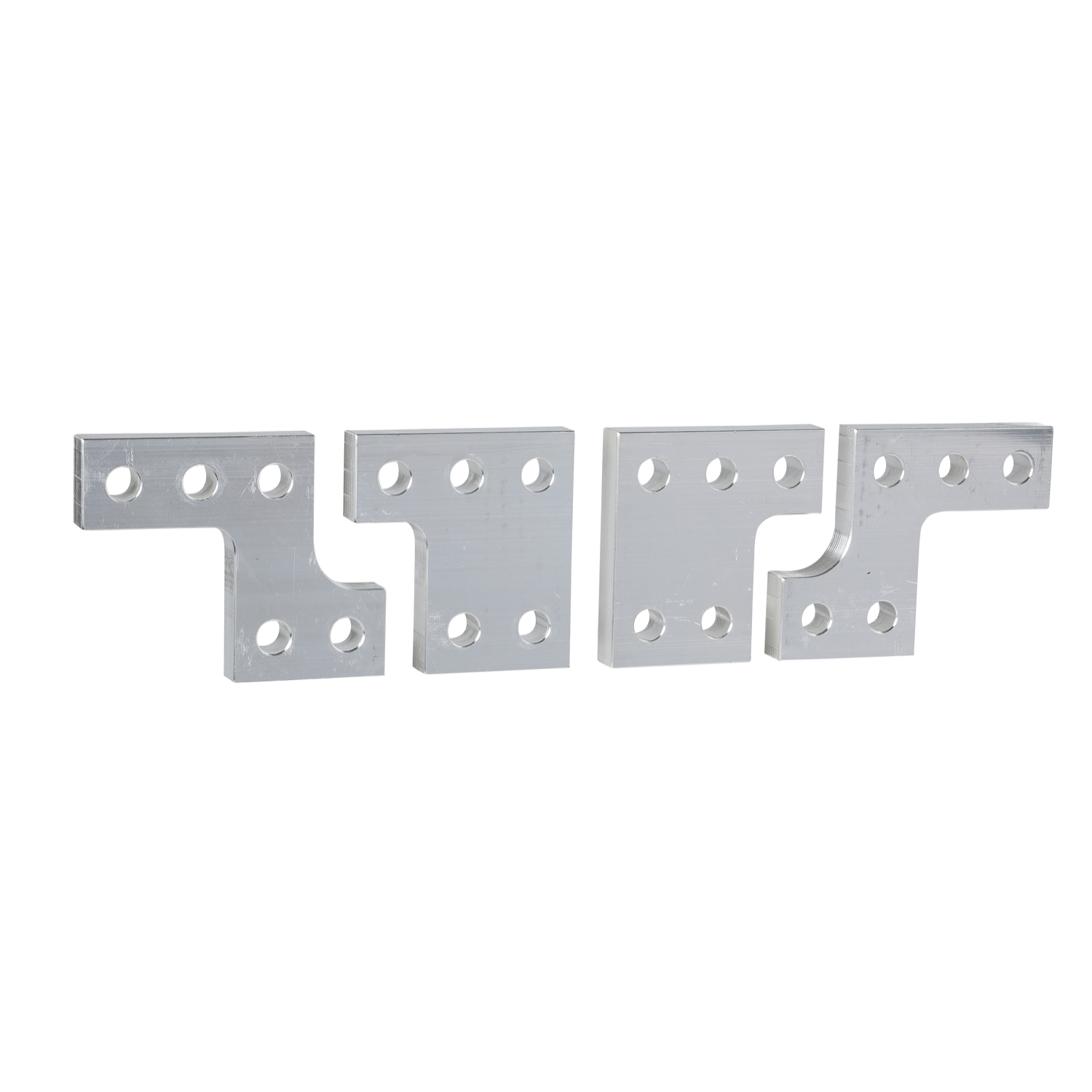

Picture of Spreaders, MasterPact NT, ComPacT NS630b to NS1600, 70mm to 95mm pitch, flat connection, 4 poles, spare part
SKU:

33623

Spreaders, MasterPact NT, ComPacT NS630b to NS1600, 70mm to 95mm pitch, flat connection, 4 poles, spare part

$947.86
Available for Shipping : 03-Dec-2024
Spreaders, MasterPact NT, ComPacT NS630b to NS1600, 70mm to 95mm pitch, flat connection, 4 poles, spare part
  • ComPacT NS is a range of circuit breakers for built-in power & energy metering
  • The solution covers ratings from 630 A to 3200 A
  • MicroLogic electronic control unit provides electrical measurement and analysis functions
  • ComPacT NS offers an optimized range of auxiliaries and accessories, field installable
  • Flexible installation, in any position, in a switchboard or wall-mounted
  • New transparent front cover with visible auxiliaries
  • New toggle with ergonomic touch and optional LED blinking in trip position
  • Wireless auxiliary contact OF/SD in Zigbee
  • Sustainability with Green packaging and Green partnerships
  • Linked to Smart Panels, improves uptime with complete monitoring solution
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
Instruction sheet
Product Page Link
Product Data Sheet
These accessories are spreaders for 4 poles Compact NS 630b to 1600 and Masterpact NT 06 to 16. They are screwed to the circuit-breaker terminals to increase the pitch between poles from 70mm to 95mm. The rated current is up to 1600 A. They are sold by set of 4 parts.

Products specifications

Attribute name Attribute value
Main
Quantity per set 4
Poles description 4P
Range ComPacT, MasterPacT
Product or component type spreader
Accessory / separate part category connection accessory
Range compatibility Masterpact MasterPact NT, ComPact ComPact NS630b...1600
Range of product ComPact NS630b...1600
Complementary
[In] rated current 1600-1600 A
Accessory / separate part category spare part for Compact NS630b...1600
Connection pitch 95 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.7 cm
Package 1 Width 20.7 cm
Package 1 Length 27.0 cm
Package 1 Weight 2.809 kg
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.035 kg
