Standard opening undervoltage release MN, ComPacT NS630b/NS3200, fixed, 200/250V AC/DC, spare part

$571.80
Available for Shipping : 24-Nov-2024
Standard opening undervoltage release MN, ComPacT NS630b/NS3200, fixed, 200/250V AC/DC, spare part
  • ComPacT NS is a range of circuit breakers for built-in power & energy metering
  • The solution covers ratings from 630 A to 3200 A
  • MicroLogic electronic control unit provides electrical measurement and analysis functions
  • ComPacT NS offers an optimized range of auxiliaries and accessories, field installable
  • Flexible installation, in any position, in a switchboard or wall-mounted
  • New transparent front cover with visible auxiliaries
  • New toggle with ergonomic touch and optional LED blinking in trip position
  • Wireless auxiliary contact OF/SD in Zigbee
  • Sustainability with Green packaging and Green partnerships
  • Linked to Smart Panels, improves uptime with complete monitoring solution
Manufacturer: Schneider Electric

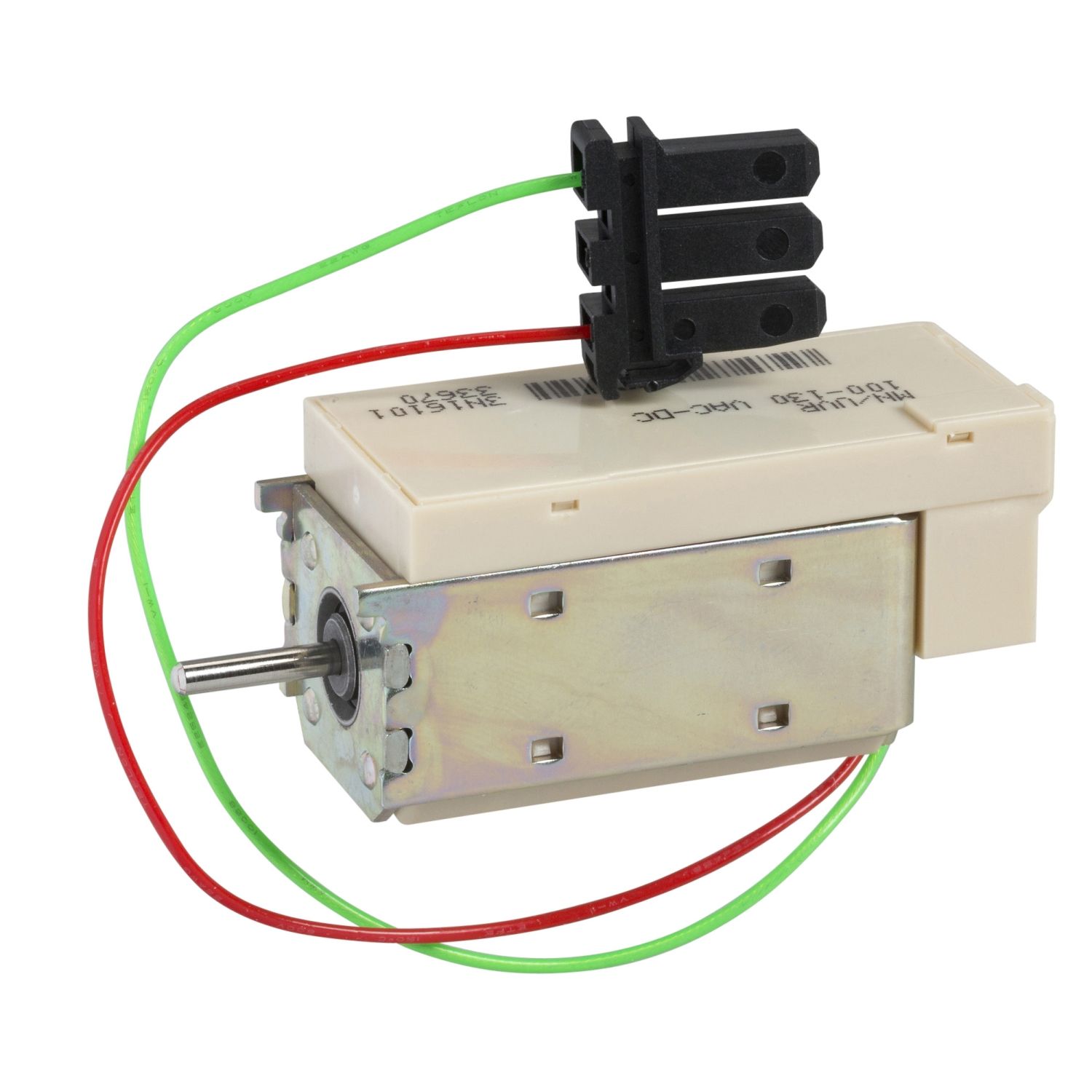

This is a MN undervoltage release for Compact NS 630b to Compact NS 3200 devices. Its rated voltage is 200VDC to 250VDC or 200VAC to 250VAC 50/60Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. Compact NS 630b to Compact NS 3200 device can be equipped with 1 MX or 1 MN auxiliary.

Products specifications

Attribute name Attribute value
Main
Device short name MN
Device application control
Voltage release type undervoltage release, opening coil
Mounting mode fixed
Control type standard
Range ComPacT
Product or component type voltage release
Range compatibility ComPact ComPact NS1600b...3200, ComPact ComPact NS630b...1600
Range of product ComPacT NS1600b...3200 new generation, ComPacT NS630b...1600 new generation
[Uc] control circuit voltage 200...250 V DC, 200...250 V AC 50/60 Hz
Complementary
Threshold tripping voltage 0.85 x Un closing, 0.35...0.7 x Un opening
Response time 90 ms +/- 5 % for MasterPact NW, 40 ms +/- 5 % for MasterPact NT, 90 ms +/- 5 % for Compact NS1600b...3200, 90 ms +/- 5 % for Compact NS630b...1600
Accessory / separate part category spare part for ComPacT NS1600b...3200 new generation, spare part for ComPacT NS630b...1600 new generation, spare part for MasterPact NW NAVY, spare part for MasterPact NW, spare part for MasterPact NT NAVY, spare part for MasterPact NT
Supply holding power 4.5 VA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.5 cm
Package 1 Width 6.0 cm
Package 1 Length 8.1 cm
Package 1 Weight 150.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 9.0 cm
Package 2 Width 13.0 cm
Package 2 Length 18.5 cm
Package 2 Weight 1.6 kg
Unit Type of Package 3 3
Number of Units in Package 3 120
Package 3 Height 30.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 19.435 kg
