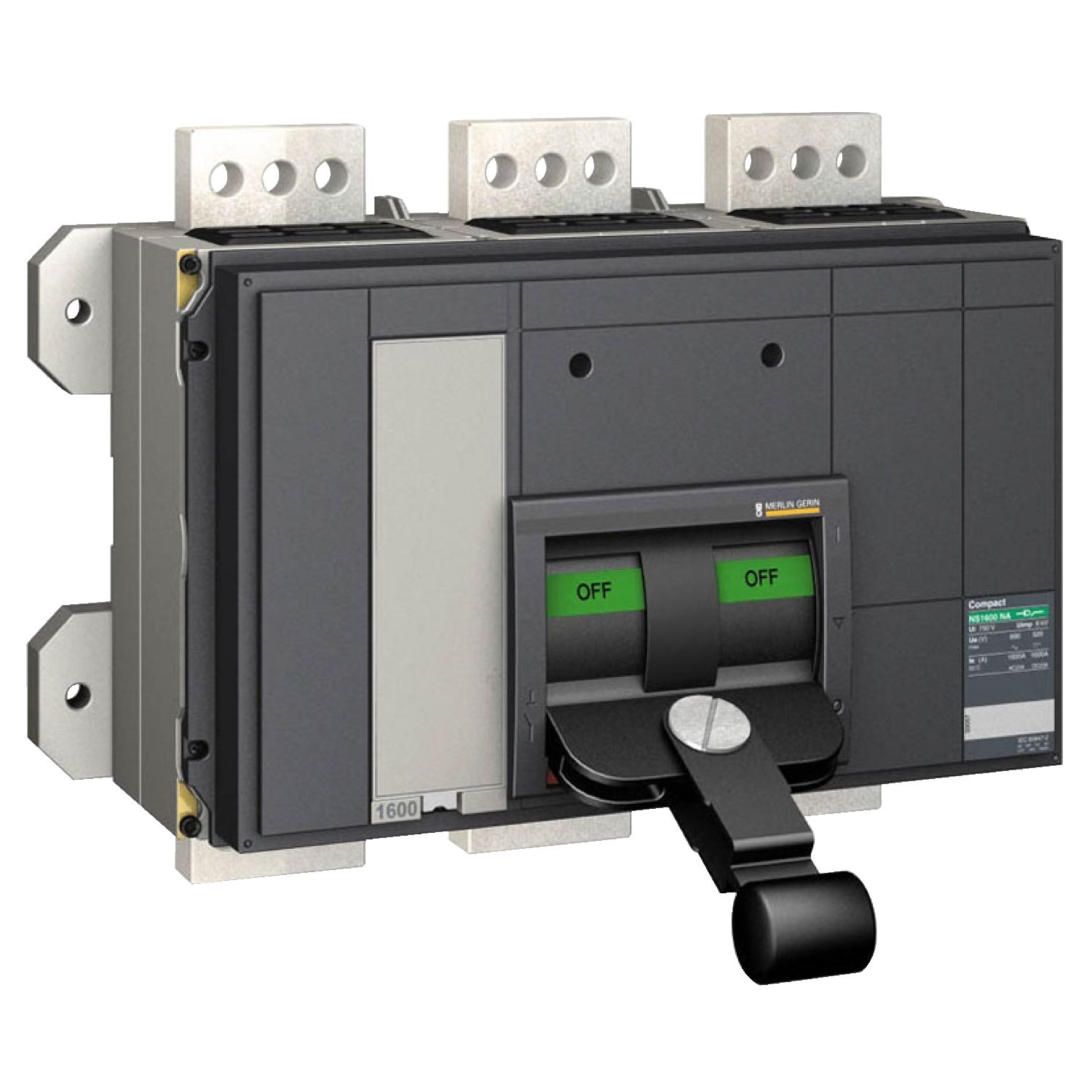

Picture of Switch disconnector, ComPact NS2000NA, fixed, front connected, manually operated, 2000A, 3P, complete device
SKU:

34027

Switch disconnector, ComPact NS2000NA, fixed, front connected, manually operated, 2000A, 3P, complete device

$17,604.72
Product Selector
Switch disconnector, ComPact NS2000NA, fixed, front connected, manually operated, 2000A, 3P, complete device
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 03-Oct-2024
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
This Compact NS2000NA is a 3 poles switch disconnector. It is used to control and isolate electrical distribution circuits. This device is a fixed version, front connected and is manually operated. The operational current is 2000A (AC23A) and the operational voltage is 690V 50/60Hz. This basic version does not include the front and rear power connections. The dimensions are 350mm (width), 420mm (height) and 160mm (depth). This device complies with IEC 60947-3 standard.

Products specifications

Attribute nameAttribute value
Main
Device short nameCompact NS2000 NA
Device applicationdistribution
Suitability for isolationyes conforming to IEC 60947-3
RangeComPacT
Offer typeC5
Range of productNS1600b...3200
Poles description3P
Product nameComPact NS
Product or component typeswitch disconnector
Breaking capacity codeNA
Network typeAC
Complementary
[Icw] rated short-time withstand current32 kA during 3 s conforming to IEC 60947-3
[Uimp] rated impulse withstand voltage8 kV conforming to IEC 60947-3
Compatibility codeNS2000
[Ie] rated operational currentAC-23A: 2000 A AC 50/60 Hz 660/690 V, AC-23A: 2000 A AC 50/60 Hz 500/525 V, AC-23A: 2000 A AC 50/60 Hz 440/480 V, AC-23A: 2000 A AC 50/60 Hz 380/415 V, AC-23A: 2000 A AC 50/60 Hz 220/240 V
Electrical durabilityAC-23A: 1000 cycles 440 V AC 50/60 Hz conforming to IEC 60947-3
Mounting modefixed
Upside connectionfront
Control typetoggle
Downside connectionfront
[Ith] conventional free air thermal current2000 A at 60 °C
Connection pitch115 mm
Height350 mm
Depth160 mm
Width420 mm
Mechanical durability6000 cycles conforming to IEC 60947-3
[Ui] rated insulation voltage800 V AC 50/60 Hz conforming to IEC 60947-3
[Icm] rated short-circuit making capacity135 kA 690 V AC at 50/60 Hz
Net weight23 kg
Visible breakno
Contact position indicatoryes
[Ue] rated operational voltage690 V AC 50/60 Hz conforming to IEC 60947-3
Network frequency50/60 Hz
Environment
Ambient air temperature for storage-50-85 °C
Pollution degree3 conforming to IEC 60947-3
Ambient air temperature for operation-25-70 °C
StandardsIEC 60947-3
Product certificationsASTA, ASEFA
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height43.0 cm
Package 1 Width60.0 cm
Package 1 Length80.0 cm
Package 1 Weight33.0 kg
