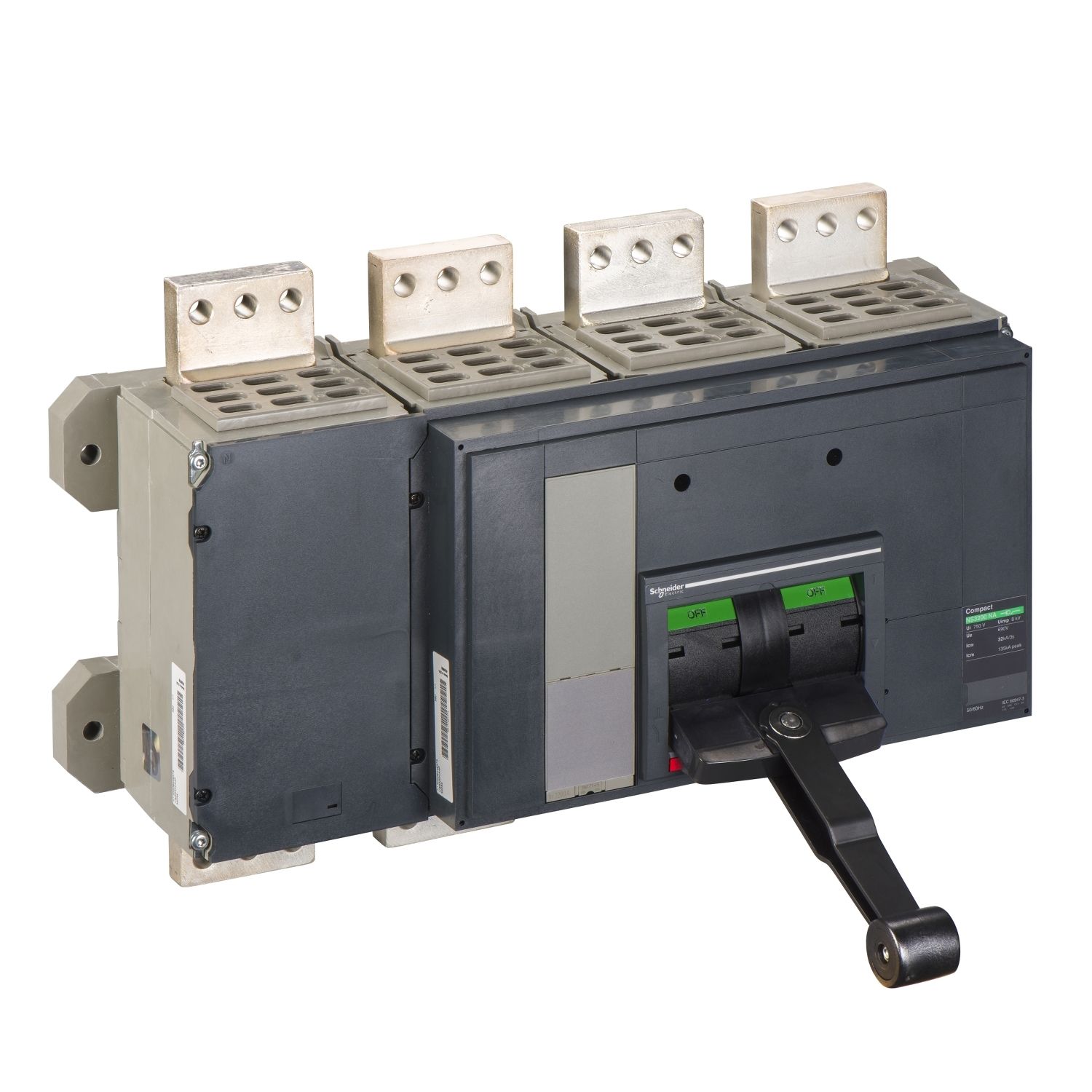

Picture of Switch disconnector, ComPact NS3200NA, fixed, front connected, manually operated, 3200A, 4P, complete device
SKU:

34034

Switch disconnector, ComPact NS3200NA, fixed, front connected, manually operated, 3200A, 4P, complete device

Please Contact Sales to buy this Product. click here
Product Selector
Switch disconnector, ComPact NS3200NA, fixed, front connected, manually operated, 3200A, 4P, complete device
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 04-Oct-2024
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
This Compact NS3200NA is a 4 poles switch disconnector. It is used to control and isolate electrical distribution circuits. This device is a fixed version, front connected and is manually operated. The operational current is 3200A (AC23A) and the operational voltage is 690V 50/60Hz. This basic version does not include the front and rear power connections. The dimensions are 350mm (width), 535mm (height) and 160mm (depth). This device complies with IEC 60947-3 standard.

Products specifications

Attribute nameAttribute value
Main
Device short nameCompact NS3200 NA
Device applicationdistribution
Suitability for isolationyes conforming to IEC 60947-3
RangeComPacT
Offer typeC5
Range of productNS1600b...3200
Poles description4P
Product nameComPact NS
Product or component typeswitch disconnector
Breaking capacity codeNA
Network typeAC
Complementary
[Icw] rated short-time withstand current32 kA during 3 s conforming to IEC 60947-3
[Uimp] rated impulse withstand voltage8 kV conforming to IEC 60947-3
Compatibility codeNS3200
[Ie] rated operational currentAC-23A: 3200 A AC 50/60 Hz 660/690 V, AC-23A: 3200 A AC 50/60 Hz 500/525 V, AC-23A: 3200 A AC 50/60 Hz 440/480 V, AC-23A: 3200 A AC 50/60 Hz 380/415 V, AC-23A: 3200 A AC 50/60 Hz 220/240 V
Electrical durabilityAC-23A: 1000 cycles 440 V AC 50/60 Hz conforming to IEC 60947-3
Mounting modefixed
Upside connectionfront
Control typetoggle
Downside connectionfront
[Ith] conventional free air thermal current3200 A at 60 °C
Connection pitch115 mm
Height350 mm
Depth160 mm
Width535 mm
Mechanical durability6000 cycles conforming to IEC 60947-3
[Ui] rated insulation voltage800 V AC 50/60 Hz conforming to IEC 60947-3
[Icm] rated short-circuit making capacity135 kA 690 V AC at 50/60 Hz
Net weight36 kg
Visible breakno
Contact position indicatoryes
[Ue] rated operational voltage690 V AC 50/60 Hz conforming to IEC 60947-3
Network frequency50/60 Hz
Environment
Ambient air temperature for storage-50-85 °C
Pollution degree3 conforming to IEC 60947-3
Ambient air temperature for operation-25-70 °C
StandardsIEC 60947-3
Product certificationsASEFA, ASTA
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height2 cm
Package 1 Width10 cm
Package 1 Length10 cm
Package 1 Weight200 g
