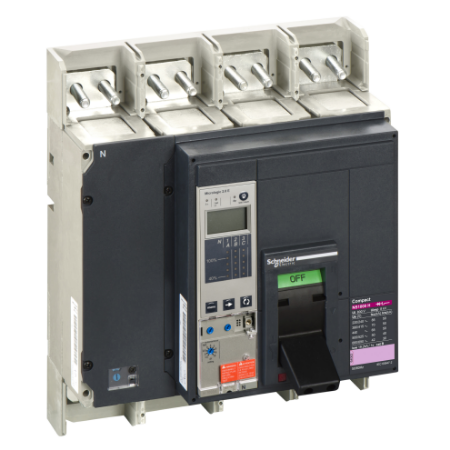

Picture of Circuit breaker, ComPact NS1000H, 70kA/415VAC, Micrologic 2.0E trip unit, 1000A, fixed, 4 poles 4d
SKU:

34411

Circuit breaker, ComPact NS1000H, 70kA/415VAC, Micrologic 2.0E trip unit, 1000A, fixed, 4 poles 4d

$13,194.72
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Circuit breaker, ComPact NS1000H, 70kA/415VAC, Micrologic 2.0E trip unit, 1000A, fixed, 4 poles 4d
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Catalogue
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name Compact NS1000H
Device application distribution
Breaking capacity code H 70 kA 415 V AC
Suitability for isolation yes conforming to EN/IEC 60947-2
Breaking capacity 50 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 42 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Mounting mode fixed
Control type toggle, rotary handle
Range ComPacT
Protected poles description 4D
Range of product ComPact NS630b...1600
Trip unit name MicroLogic 2.0 E
Trip unit technology electronic
Neutral position left
Poles description 4P
Utilisation category category B
Product name ComPact NS
Product or component type circuit breaker
Network type AC
Trip unit protection functions LI
[Ue] rated operational voltage 690 V AC 50/60 Hz
[In] rated current 1000 A at 50 °C
Network frequency 50/60 Hz
Complementary
Power losses 22 W
[Icw] rated short-time withstand current 19.2 kA 1 s conforming to IEC 60947-2
Display type LCD display
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
Connection pitch 70 mm
Compatibility code NS1000
Mechanical durability 10000 cycles
Trip unit rating 1000-1000 A at 50 °C
Upside connection front
Long time pick-up adjustment type Ir adjustable 9 settings
Long time pick-up adjustment range 0.4...1 x In
Neutral protection setting 1 x Ir (4D), 0.5 x Ir (3D + N/2), no protection (3D)
Electrical durability 6000 cycles at 440 V In/2, 5000 cycles at 440 V In, 4000 cycles at 690 V In/2, 2000 cycles at 690 V In
Zone selective interlocking ZSI without
Protection type I : for instantaneous short-circuit protection, L : for overload protection (long time)
Downside connection front
Earth-leakage protection without
Thermal memory 20 mn
Height 327 mm
[Ics] rated service breaking capacity 50 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 40 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 30 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Depth 147 mm
Width 280 mm
Local signalling 1 LED (yellow) for overload, 4 LEDs (red) for fault indication
[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-2
[tr] long-time delay adjustment range 0.7-16.6 s at 7.2 x Ir, 0.5-24 s at 6 x Ir, 12.5-600 s at 1.5 x Ir
Net weight 18 kg
Instantaneous pick-up adjustment type Ii adjustable
Long time delay adjustment type adjustable 9 settings
Type of measurement energy meter
Instantaneous pick-up adjustment range 1.5...10 x Ir
Mounting support backplate
Auxiliary contact composition 1 NO/NC
Environment
Relative humidity 0-95 %
Ambient air temperature for storage -40-85 °C
Pollution degree 3 conforming to IEC 60947
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to EN 50102
Operating altitude 2000 m...5000 m with derating, 0...2000 m without derating
Standards EN/IEC 60947-2
Product certifications ASTA, ASEFA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 37.0 cm
Package 1 Width 38.0 cm
Package 1 Length 30.0 cm
Package 1 Weight 15.968 kg
