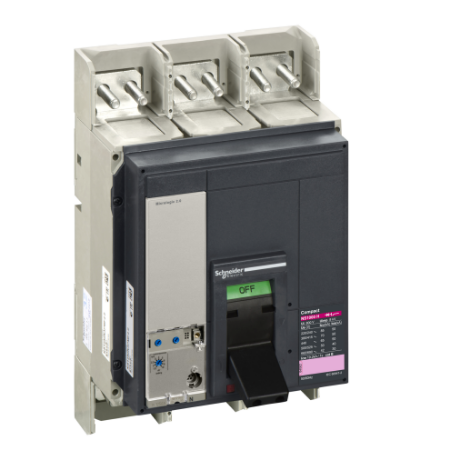

Picture of Circuit breaker, ComPact NS1000H, 70kA/415VAC, Micrologic 5.0E trip unit, 1000A, fixed, 3 poles 3d
SKU:

34429

Circuit breaker, ComPact NS1000H, 70kA/415VAC, Micrologic 5.0E trip unit, 1000A, fixed, 3 poles 3d

$12,642.00
Product Selector
Circuit breaker, ComPact NS1000H, 70kA/415VAC, Micrologic 5.0E trip unit, 1000A, fixed, 3 poles 3d
Be the first to review this product
Manufacturer: Schneider Electric
Availability: Please contact our sales team on 1300 724 622.
End of life manual
Catalogue
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute nameAttribute value
Main
Trip unit technologyelectronic
Device short nameCompact NS1000H
Device applicationdistribution
Breaking capacity codeH 70 kA 415 V AC
Poles description3P
Suitability for isolationyes conforming to EN/IEC 60947-2
Breaking capacity50 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 42 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Mounting modefixed
Utilisation categorycategory B
Control typetoggle, rotary handle
RangeComPacT
Product nameComPact NS
Product or component typecircuit breaker
Protected poles description3D
Network typeAC
Trip unit protection functionsLSI
[Ue] rated operational voltage690 V AC 50/60 Hz
Range of productComPact NS630b...1600
Trip unit nameMicroLogic 5.0 E
[In] rated current1000 A at 50 °C
Network frequency50/60 Hz
Complementary
Power losses22 W
Short-time pick-up adjustment type Isdadjustable 9 settings
[Icw] rated short-time withstand current19.2 kA 1 s conforming to IEC 60947-2
Depth147 mm
Display typeLCD display
Width210 mm
[Uimp] rated impulse withstand voltage8 kV conforming to IEC 60947-2
Connection pitch70 mm
[Isd] short-time pick-up adjustment range1.5...10 x Ir
Compatibility codeNS1000
Mechanical durability10000 cycles
Local signalling1 LED (yellow) for overload, 4 LEDs (red) for fault indication
Trip unit rating1000-1000 A at 50 °C
[Ui] rated insulation voltage800 V AC 50/60 Hz conforming to IEC 60947-2
[tsd] short-time delay adjustment range0-0.4 s I²t=off, 0.1-0.4 s I²t=on
Upside connectionfront
Long time pick-up adjustment type Iradjustable 9 settings
Long time pick-up adjustment range0.4...1 x In
Short-time delay adjustment typeadjustable
Electrical durability6000 cycles at 440 V In/2, 5000 cycles at 440 V In, 4000 cycles at 690 V In/2, 2000 cycles at 690 V In
[tr] long-time delay adjustment range0.7-16.6 s at 7.2 x Ir, 0.5-24 s at 6 x Ir, 12.5-600 s at 1.5 x Ir
Net weight14 kg
Zone selective interlocking ZSIwith
Instantaneous pick-up adjustment type Iiadjustable
Long time delay adjustment typeadjustable 9 settings
Protection typeI : for instantaneous short-circuit protection, S : for short time short-circuit protection, L : for overload protection (long time)
Downside connectionfront
Type of measurementenergy meter
Instantaneous pick-up adjustment range2...15 x In, off
Mounting supportbackplate
Earth-leakage protectionwithout
Thermal memory20 mn
Auxiliary contact composition1 NO/NC
Height327 mm
[Ics] rated service breaking capacity50 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 40 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 30 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Environment
Operating altitude2000 m...5000 m with derating, 0...2000 m without derating
Relative humidity0-95 %
Ambient air temperature for storage-40-85 °C
Pollution degree3 conforming to IEC 60947
IP degree of protectionIP40 conforming to IEC 60529
StandardsEN/IEC 60947-2
Ambient air temperature for operation-25-70 °C
IK degree of protectionIK07 conforming to EN 50102
Product certificationsASEFA, ASTA
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height37.0 cm
Package 1 Width39.5 cm
Package 1 Length23.0 cm
Package 1 Weight11.892 kg
