SKU:

47887

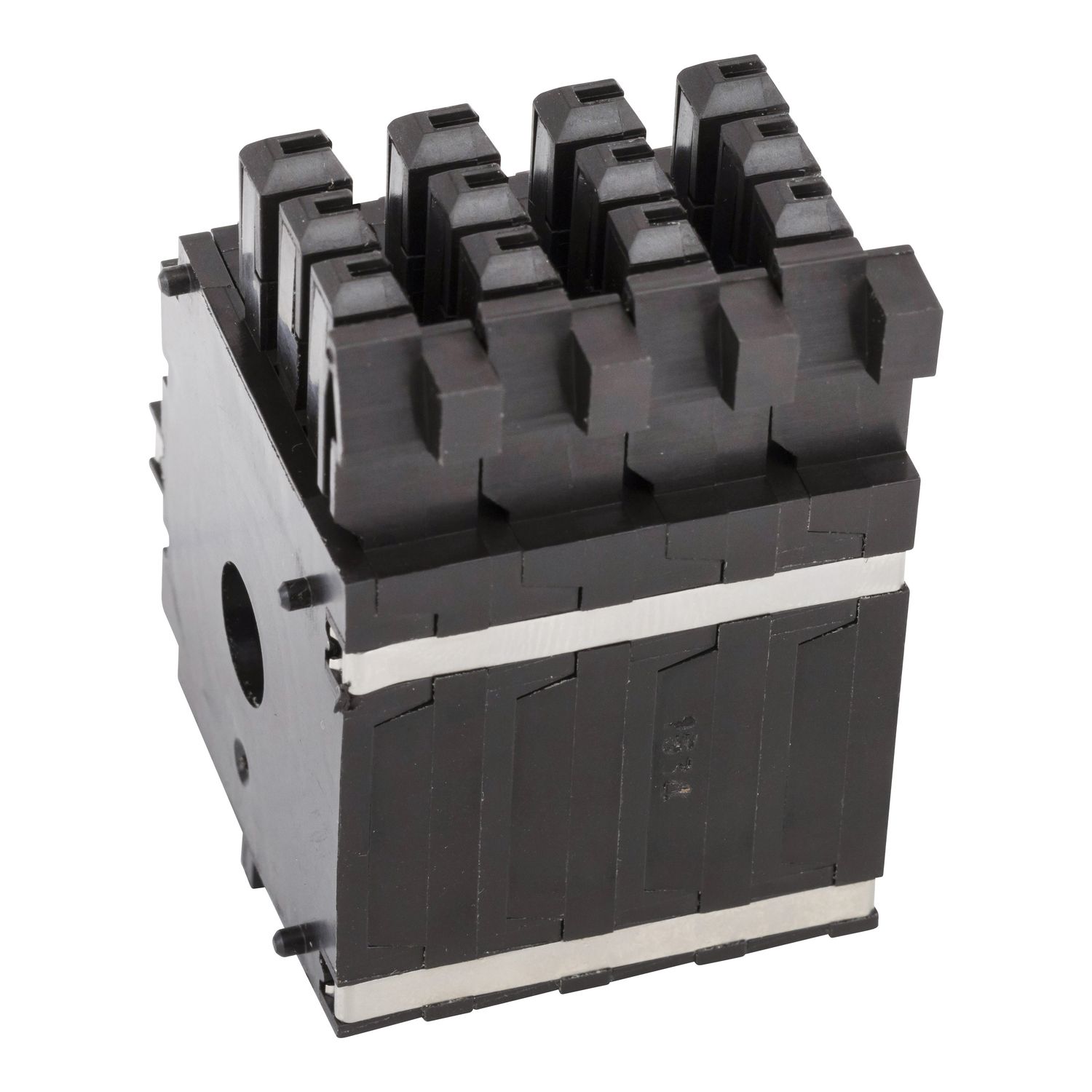

Indication contacts, MasterPact NW08 to NW63, additional block, 4 ON/OFF contacts

Old price: $705.10 INC GST

Price: $564.08 INC GST

Qty:

Available for Shipping : 24-Mar-2026

Indication contacts, MasterPact NW08 to NW63, additional block, 4 ON/OFF contacts

Manufacturer: Schneider Electric

Delivery date: 24-Mar-2026

Declaration of conformity

Instruction sheet

Catalog

User guide

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	4 OF
Signal contacts composition	4 NO/NC
Product or component type	auxiliary contact
Range compatibility	EasyPact EasyPact EXE, EasyPact EasyPact MVS, Masterpact MasterPact NW
Range of product	MasterPact NW
Complementary
Minimum load	2 mA at 15 V, 100 mA at 24 V
[Ie] rated operational current	6 A at 250 V DC conforming to UL 489, AC-12: 6 A at 690 V AC 50/60 Hz conforming to EN/IEC 60947-2, 6 A at 600 V AC 50/60 Hz conforming to UL 489, 8 A at 480 V AC 50/60 Hz conforming to UL 489, DC-12: 3 A at 250 V DC conforming to EN/IEC 60947-2, DC-12: 10 A at 125 V DC conforming to EN/IEC 60947-2, DC-12: 10 A at 24/48 V DC conforming to EN/IEC 60947-2, AC-12: 10 A at 480 V AC 50/60 Hz conforming to EN/IEC 60947-2, AC-12: 10 A at 240/380 V AC 50/60 Hz conforming to EN/IEC 60947-2
Auxiliary contacts type	low level, standard
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	4.1 cm
Package 1 Width	4.6 cm
Package 1 Length	6.8 cm
Package 1 Weight	87 g
