SKU:

48478

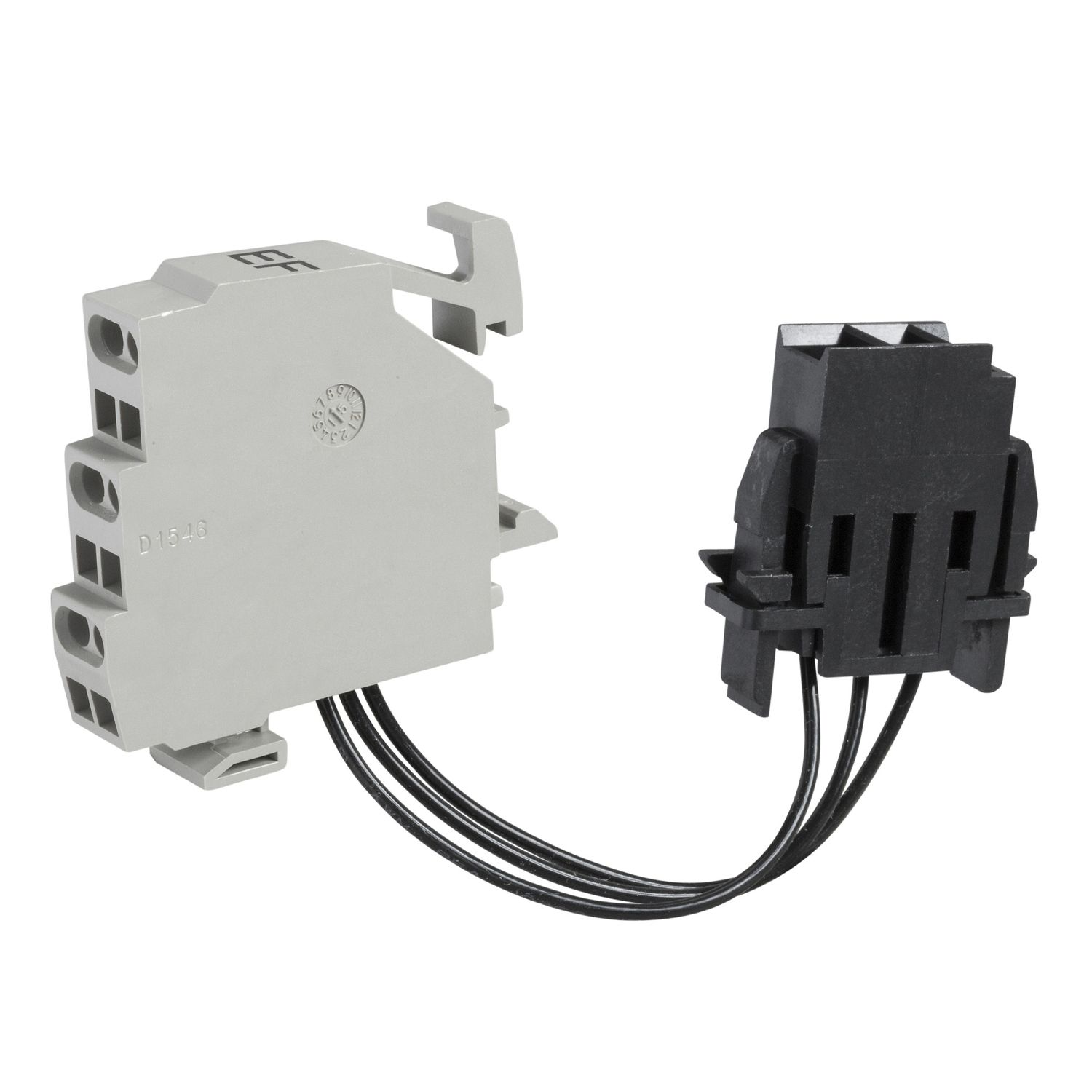

EF combined connected/closed contact, MasterPact NW drawout, 1 changeover contact, low level 3A/240VAC, spare part

Old price: $248.60 INC GST

Price: $198.88 INC GST

Qty:

Available for Shipping : 08-Dec-2025

EF combined connected/closed contact, MasterPact NW drawout, 1 changeover contact, low level 3A/240VAC, spare part

Manufacturer: Schneider Electric

Delivery date: 08-Dec-2025

Catalog

Instruction sheet

Declaration of conformity

User guide

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	EF contact
Device application	control
Signal contacts composition	1 NO/NC
Range	MasterPacT
Product or component type	auxiliary contact
Range compatibility	Masterpact MasterPact NW
Range of product	MasterPact NW DC, MasterPact NW
Complementary
Minimum load	2 mA at 15 V
[Ie] rated operational current	AC-12: 5 A at 240/380 V AC 50/60 Hz, AC-12: 5 A at 380 V AC 50/60 Hz, AC-12: 5 A at 240 V AC 50/60 Hz, DC-12: 2.5 A at 24/48 V DC, DC-12: 0.8 A at 125 V DC, DC-12: 0.3 A at 250 V DC
Auxiliary contacts type	low level
Mounting mode	drawout
Auxiliary contacts operation	connected position
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	1.0 cm
Package 1 Width	15.0 cm
Package 1 Length	10.0 cm
Package 1 Weight	34.0 g
Unit Type of Package 2	2
Number of Units in Package 2	100
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	3.887 kg
