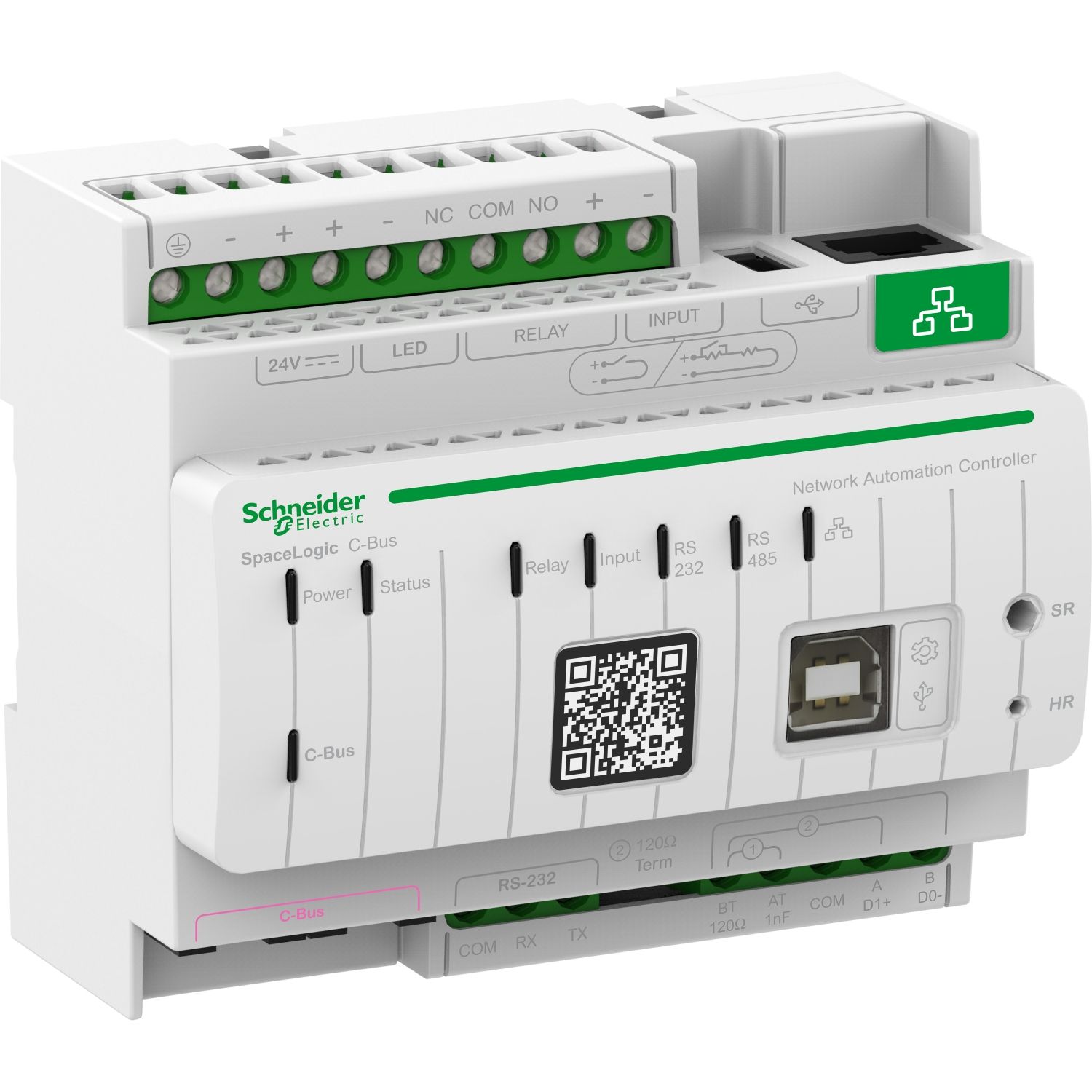

Picture of Clipsal C-Bus, Network Automation Controller, SpaceLogic C-Bus, 6DIN
SKU:

5500NAC2

Clipsal C-Bus, Network Automation Controller, SpaceLogic C-Bus, 6DIN

$2,506.03
Clipsal C-Bus, Network Automation Controller, SpaceLogic C-Bus, 6DIN
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product environmental
User guide
Brochure
Instruction sheet
End of life manual
Quick start guide
Product Page Link
Product Data Sheet

Products specifications

Attribute nameAttribute value
Main
RangeSpaceLogic C-Bus
Product nameC-Bus Automation Controller
Product or component typelogic controller
Complementary
Web serverBMS controller compatible
Depth63 mm
Market segmentresidential, buildings
Width93 mm
Web servicesweb server
Port Ethernet10BASE-T/100BASE-TX
Local signallingLED (green/yellow) for Ethernet link, LED (green) for C-Bus status, LED (multi-colour) for serial link communication (RS485, RX, TX), LED (multi-colour) for RS232 link activity, LED (multi-colour) for input status, LED (green) for relay output (REL), LED (green/red) for status indication, LED (green/red) for power
[Us] rated supply voltage24 V DC
Function availablevisualisation, updateable software
Number of port1 RJ45 (Ethernet), 2 RJ45 (C-Bus), 1 RS485 (Modbus), 1 RS232 (serial link), 1 USB 1.1 type B, 1 USB 2.0 type A
Control typeRESET push-button, local control, remote control, by touch panel, by web browser, RESET push-button cold restart, smartphone or tablet
Connections - terminalsRS485 link: screw terminal 5 cable(s) 1.5-1.5 mm², RS232 link: screw terminal 3 cable(s) 1.5-1.5 mm², digital input: screw terminal 2 cable(s) 1.5-1.5 mm², relay digital output: screw terminal 3 cable(s) 1.5-1.5 mm², LED lamp: screw terminal 2 cable(s) 1.5-1.5 mm², power supply: screw terminal 3 cable(s) 1.5-1.5 mm²
Number of inputs1-1 dry contact
Communication port protocolModbus TCP RJ45, serial link terminal block RS232, IP (Internet Protocol) RJ45, Modbus RTU terminal block RS485 (31 devices), BACnet IP RJ45 (2000 devices), C-Bus RJ45 (4000 devices)
Power consumption in W2 W
Total number of 18 mm modules6
Mounting supportDIN rail
Number of outputs1 relay changeover
Output voltage48 V AC 1 A for relay, 24 V DC 1 A for relay
Height108 mm
Input impedance6.9 kOhm opened, 2.2 kOhm closed
Environment
Operating altitude<= 2000 m
IP degree of protectionIP20
Relative humidity10-90 %
StandardsEN 55035, EN 50491-5-2: class B, EN 55032: class A
Ambient air temperature for operation-5-45 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.3 cm
Package 1 Width6.3 cm
Package 1 Length10.8 cm
Package 1 Weight364.0 g
Unit Type of Package 22
Number of Units in Package 210
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight4330.0 g
Unit Type of Package 33
Number of Units in Package 3240
Package 3 Height95.0 cm
Package 3 Width80.0 cm
Package 3 Length120.0 cm
Package 3 Weight108.0 kg
