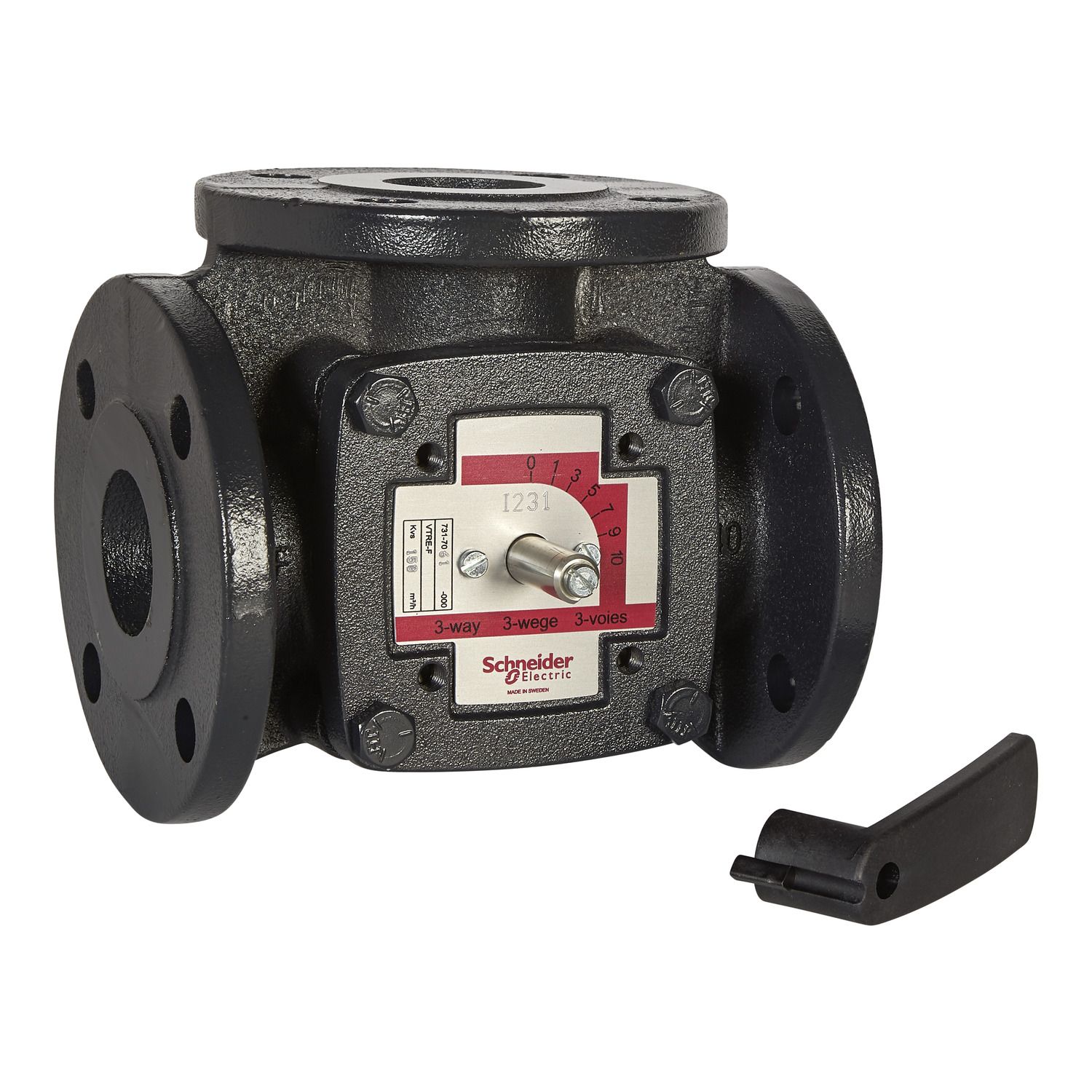

Picture of VTRE Shoe Valve, 3-Way, PN6, Flanged, DN40, Kvs 44, Brass Sleeve.
SKU:

7317049000

VTRE Shoe Valve, 3-Way, PN6, Flanged, DN40, Kvs 44, Brass Sleeve.

$781.77 INC GST
Availability: Please contact our sales team on 1300 724 622.
VTRE Shoe Valve, 3-Way, PN6, Flanged, DN40, Kvs 44, Brass Sleeve.
  • The VTRE is Ideal for turbulent media found in diverting applications
  • Service kit ensures long operational life
  • Fits to the EM9 and M9 Electric Actuators
  • Handlever for manual operation supplied with the valve
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Product Page Link
Product Data Sheet
The VTRE is a 3-way rotary shoe valve that is suitable for mixing and diverting flows in heating and cooling applications. The valve is delivered with a handle for manual operation. Valve size: DN4, modified linear, kvs: 44 m³/h. Constructed and flanged to a PN6 pressure class. The mixing valve provide a working temperature range of -1 °C to 1 °C. 9 ° operating angle. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). Flanged DIN 2531 connection.

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature -10-110 °C
Body material cast iron
Seat leakage Port A: Less than 1 % of kvs
Valve Rotation 90 °
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Medium compatibility Water, Glycol 50 %, Glycol 30 %, Glycol 25 %
Material sleeve brass
Valve product series VTRE
Flow coefficient 44 kvs, 50.87 cv
Valve configuration 3-Way
Stem movement rotary
Valve type shoe
Valve model VTRE/40/44
Valve connection type flanged
Flow characteristic equal percentage
Trim material brass
Pipe size 40 mm
Pressure class PN6
Body size 40 mm (1-1/2 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17 cm
Package 1 Width 15.6 cm
Package 1 Length 22 cm
Package 1 Weight 6.7 kg

Related products

Picture of EM9 Shoe Valve Actuator, Modulating, Non-Spring Return, 24 Vac, 90°/180° Rotation, IP54

EM9 Shoe Valve Actuator, Modulating, Non-Spring Return, 24 Vac, 90°/180° Rotation, IP54

8601110000
$1,123.32 INC GST
View Detail

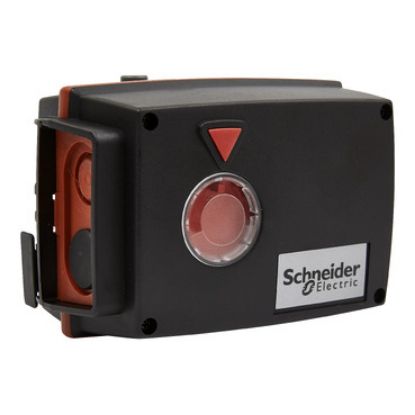

Picture of Rotary Shoe Valve Actuator, type M9B/24, 24Vac, 3 Position Floating, Non-Spring Return, 15Nm, Rotary, IP54
