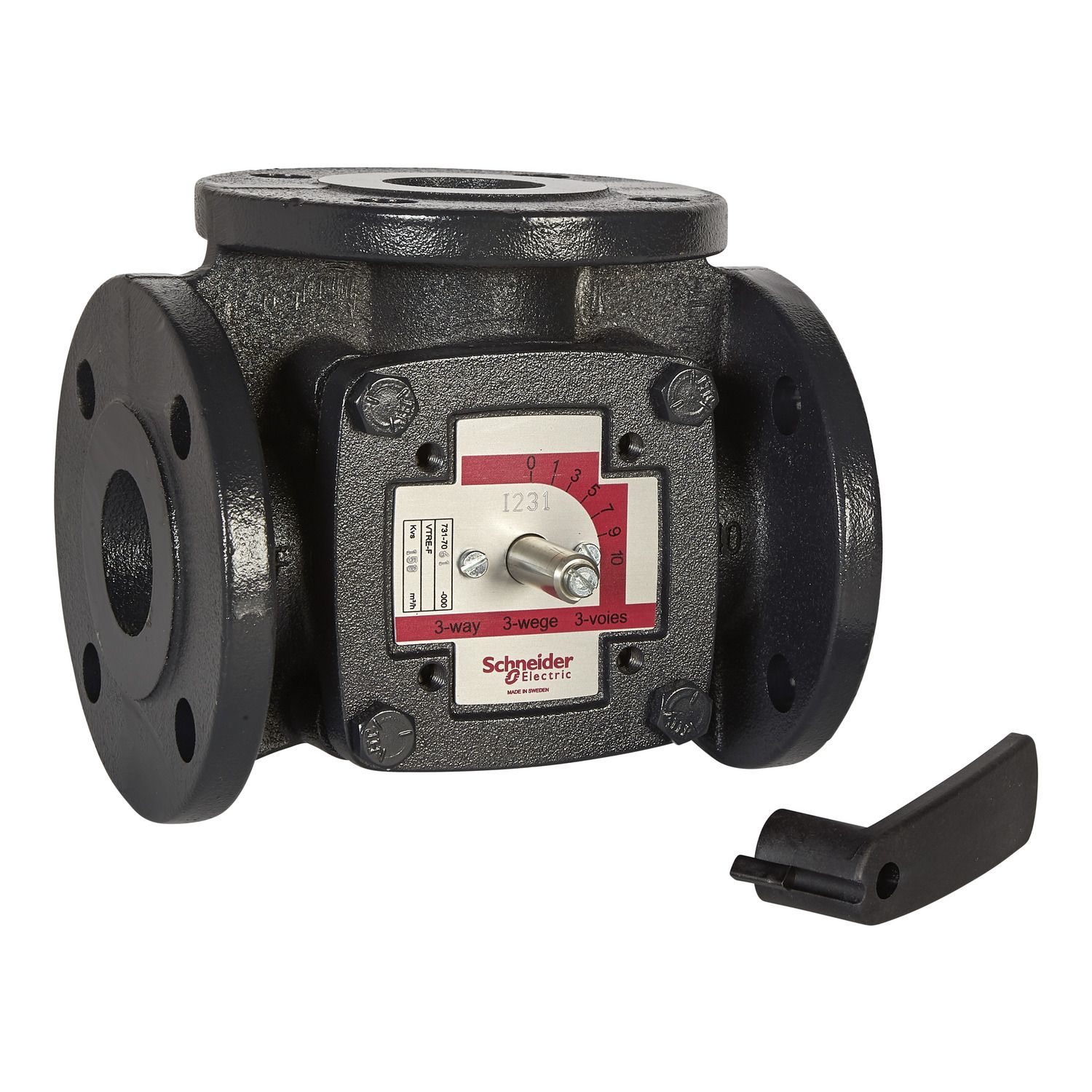

Picture of VTRE Shoe Valve, 3-Way, PN6, Flanged, DN65, Kvs 90, Brass Sleeve.
SKU:

7317057000

VTRE Shoe Valve, 3-Way, PN6, Flanged, DN65, Kvs 90, Brass Sleeve.

$1,619.20 INC GST
Availability: Please contact our sales team on 1300 724 622.
VTRE Shoe Valve, 3-Way, PN6, Flanged, DN65, Kvs 90, Brass Sleeve.
  • The VTRE is Ideal for turbulent media found in diverting applications
  • Service kit ensures long operational life
  • Fits to the EM9 and M9 Electric Actuators
  • Handlever for manual operation supplied with the valve
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Product Page Link
Product Data Sheet
The VTRE is a 3-way rotary shoe valve that is suitable for mixing and diverting flows in heating and cooling applications. The valve is delivered with a handle for manual operation. Valve size: DN65, modified linear, kvs: 9 m³/h. Constructed and flanged to a PN6 pressure class. The mixing valve provide a working temperature range of -1 °C to 1 °C. 9 ° operating angle. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). Flanged DIN 2531 connection.

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature -10-110 °C
Body material cast iron
Seat leakage Port A: Less than 1 % of kvs
Valve Rotation 90 °
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Stem movement rotary
Valve type shoe
Valve model VTRE/65/90
Valve connection type flanged
Flow characteristic equal percentage
Pipe size 65 mm
Pressure class PN6
Medium compatibility Water, Glycol 50 %, Glycol 30 %, Glycol 25 %
Material sleeve brass
Valve product series VTRE
Flow coefficient 90 kvs, 104.06 cv
Valve configuration 3-Way
Trim material brass
Body size 65 mm (2-1/2 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 21.6 cm
Package 1 Width 19.4 cm
Package 1 Length 12.6 cm
Package 1 Weight 10.56 kg

Related products

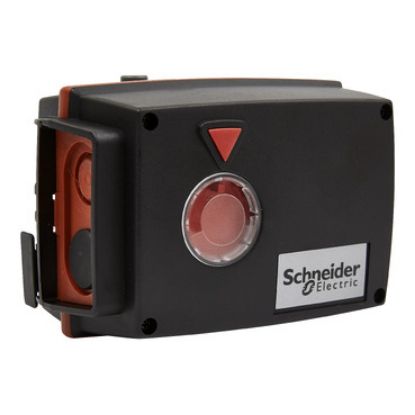

Picture of EM9 Shoe Valve Actuator, Modulating, Non-Spring Return, 24 Vac, 90°/180° Rotation, IP54
