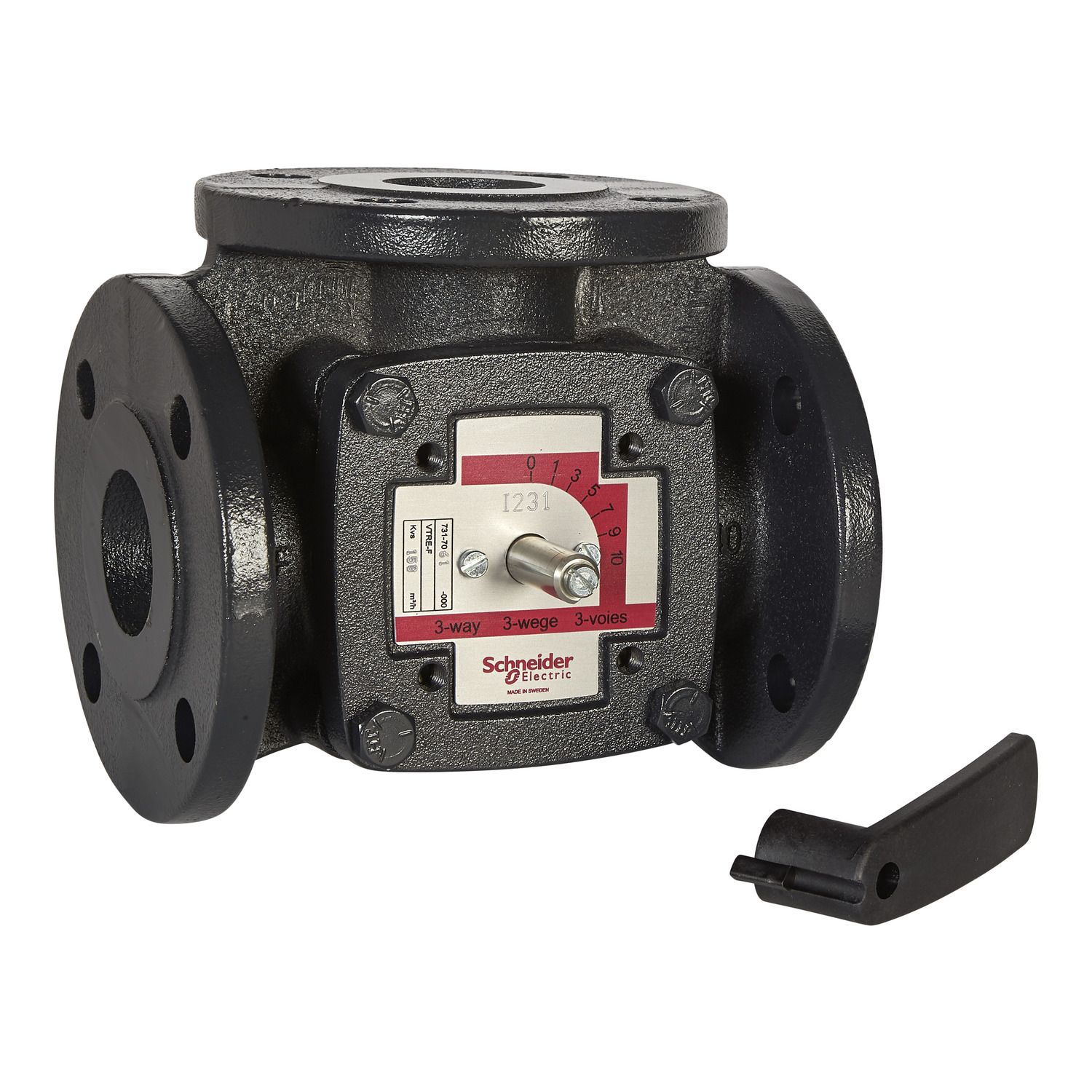

Picture of VTRE Shoe Valve, 3-Way, PN6, Flanged, DN80, Kvs 150, Brass Sleeve.
SKU:

7317061000

VTRE Shoe Valve, 3-Way, PN6, Flanged, DN80, Kvs 150, Brass Sleeve.

$1,854.49 INC GST
Availability: Please contact our sales team on 1300 724 622.
VTRE Shoe Valve, 3-Way, PN6, Flanged, DN80, Kvs 150, Brass Sleeve.
  • The VTRE is Ideal for turbulent media found in diverting applications
  • Service kit ensures long operational life
  • Fits to the EM9 and M9 Electric Actuators
  • Handlever for manual operation supplied with the valve
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Product Page Link
Product Data Sheet
The VTRE is a 3-way rotary shoe valve that is suitable for mixing and diverting flows in heating and cooling applications. The valve is delivered with a handle for manual operation. Valve size: DN8, modified linear, kvs: 15 m³/h. Constructed and flanged to a PN6 pressure class. The mixing valve provide a working temperature range of -1 °C to 1 °C. 9 ° operating angle. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). Flanged DIN 2531 connection.

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature -10-110 °C
Body material cast iron
Seat leakage Port A: Less than 1 % of kvs
Valve Rotation 90 °
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Medium compatibility Water, Glycol 50 %, Glycol 30 %, Glycol 25 %
Material sleeve brass
Valve product series VTRE
Flow coefficient 150 kvs, 173.43 cv
Valve configuration 3-Way
Stem movement rotary
Valve type shoe
Valve model VTRE/80/150
Valve connection type flanged
Flow characteristic equal percentage
Trim material brass
Pipe size 80 mm
Pressure class PN6
Body size 80 mm (3 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 23.4 cm
Package 1 Width 23.4 cm
Package 1 Length 30.4 cm
Package 1 Weight 15.34 kg
