SKU:

81583

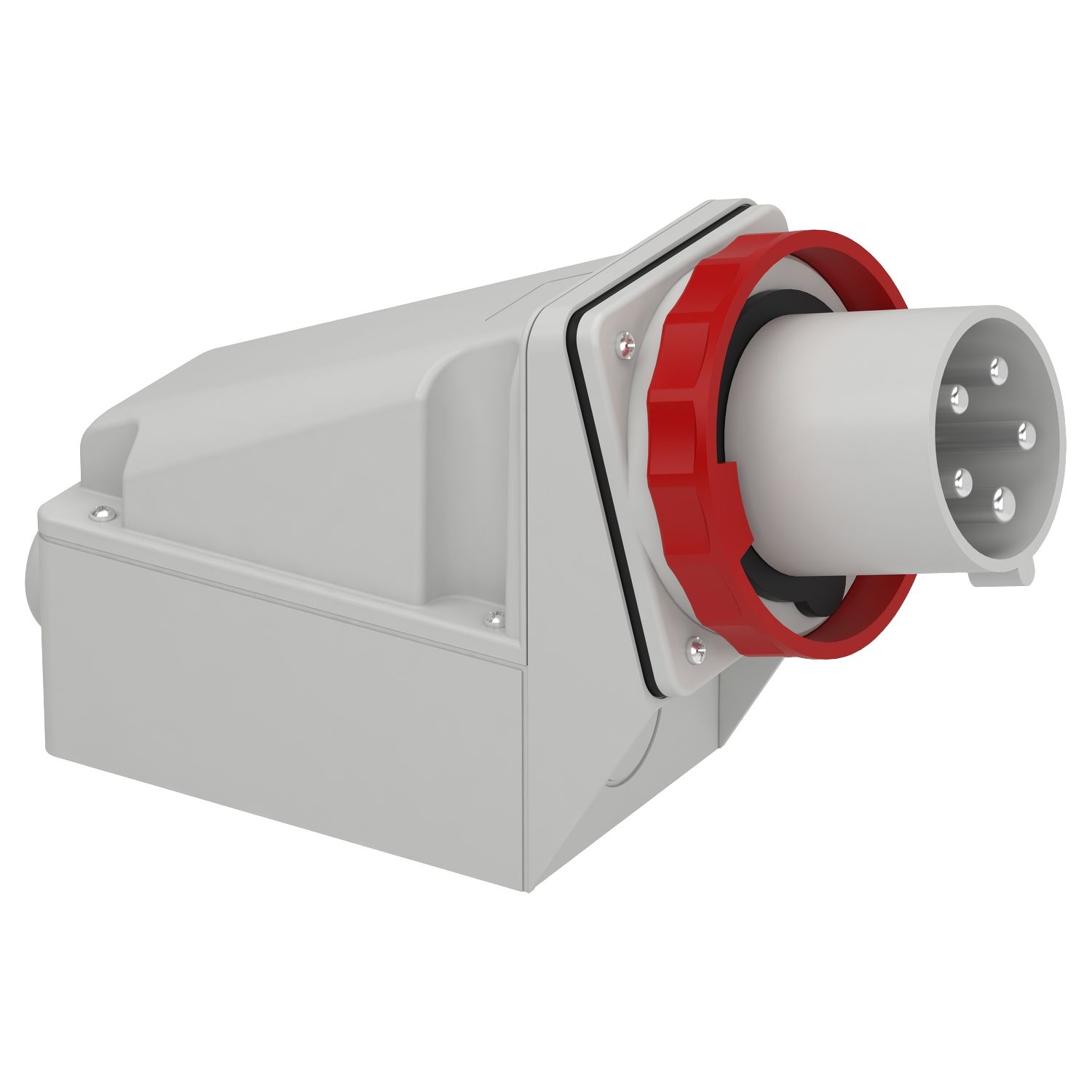

Wall mounting plug, Mureva PK, 63A, 3P+N+E, 400V, IP67

Please Contact Sales to buy this Product. click here

Wall mounting plug, Mureva PK, 63A, 3P+N+E, 400V, IP67

Estimated Delivery Date: 18-Oct-2024

Attribute name	Attribute value
Main
Device short name	Mureva plug
Plug, socket category	low voltage
Outlet standard	industrial
Range	Mureva
Poles description	3P + N + E
Product name	Mureva Industrial Plug
Product or component type	plug
Network type	AC
Complementary
Colour	grey (RAL 7035)
Compatibility code	Mureva plug
Cable cross section	6-25 mm²
Mounting mode	wall-mounted
Thread type	Pg 36
Plug, socket material	self-extinguishing engineering polymer
Base dimension	104 x 162 mm
Plug, socket, control station shape	angled
Contacts material	pins: nickel plated brass
Height	281 mm
[Ue] rated operational voltage	380...415 V
Depth	180 mm
Market segment	small commercial
Width	104 mm
[In] rated current	63 A
Cable entry	cable gland
Voltage colour	red
Net weight	1.097 kg
Ground lug clockwise position	6 h
Connections - terminals	captive screws
Network frequency	50/60 Hz
Environment
Fire resistance	850 °C conforming to IEC 60695-2-1
Relative humidity	90-90 % at 20-20 °C, 70-70 % at 30-30 °C, 50-50 % at 40-40 °C
IP degree of protection	IP67 conforming to IEC 60529
Ambient air temperature for operation	-25-40 °C, 35-35 °C ( 86400 s )
IK degree of protection	IK08 conforming to EN 62262
Operating altitude	2000 m
Standards	EN 60309-1, EN 60309-2
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	18.0 cm
Package 1 Width	10.5 cm
Package 1 Length	27.5 cm
Package 1 Weight	1.109 kg
Unit Type of Package 2	2
Number of Units in Package 2	4
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	4.96 kg
