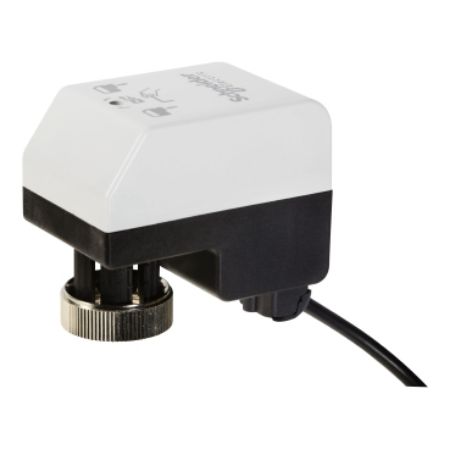

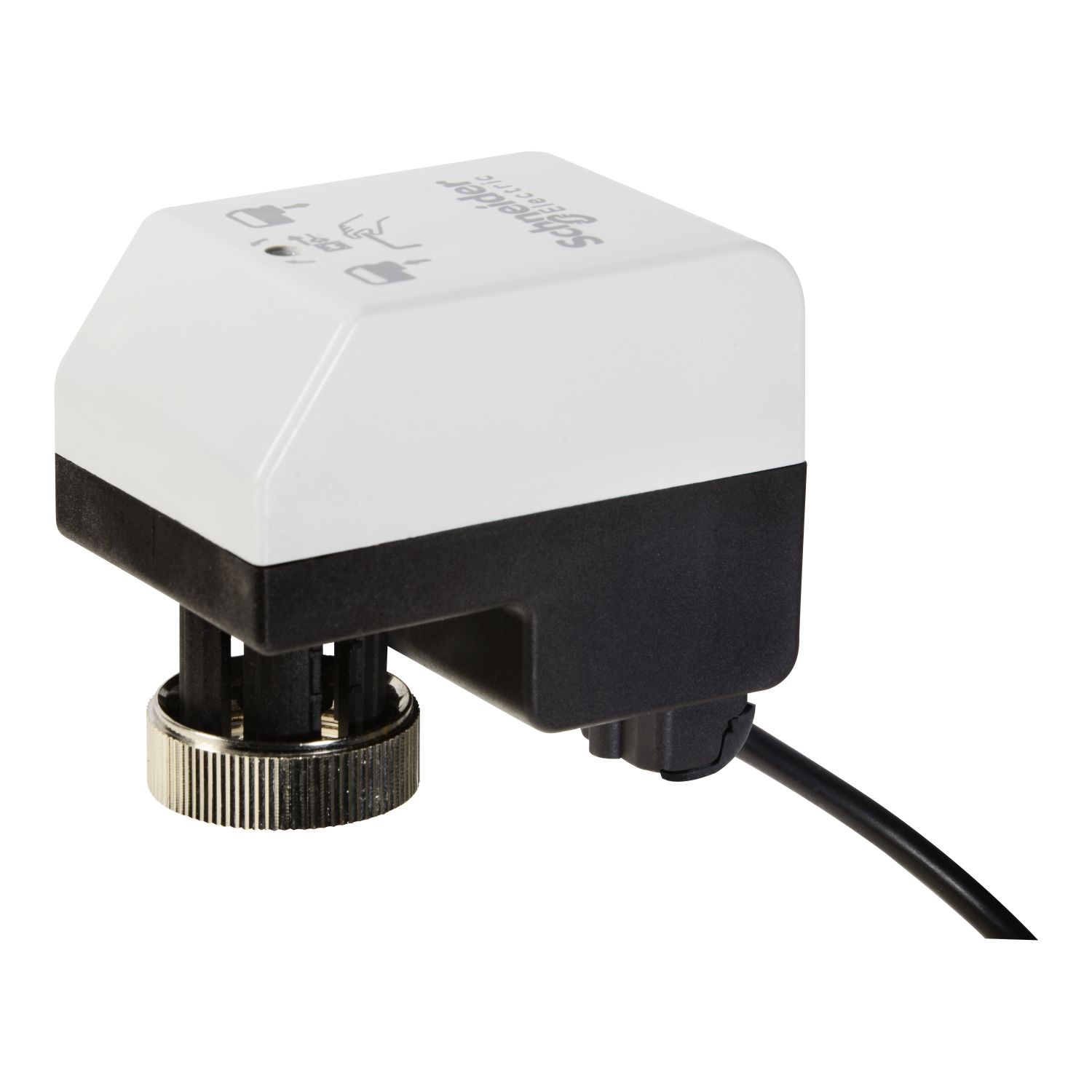

Picture of MZ20B Electric Zone Valve Actuator, 3-Wire Floating, Non-Spring Return, 24Vac, 200N, IP43
SKU:

8455001000

MZ20B Electric Zone Valve Actuator, 3-Wire Floating, Non-Spring Return, 24Vac, 200N, IP43

$216.06 INC GST
Available for Shipping : 08-Dec-2025
MZ20B Electric Zone Valve Actuator, 3-Wire Floating, Non-Spring Return, 24Vac, 200N, IP43
  • Simple to mount using the knurled M30 ring nut
  • very compact construction
  • removeable electrical cable
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
The MZ20 is a compact precise actuator for the VZ219, VZ319 and VZ419 valves. The long stroke is an electro-mechanical zone actuator. The actuator provides precise valve position and flow for good hydronic control. Reliable long term operation is provideed by the optimal design without feedback potentiometer or end switches. Supply voltage, 24 Vac and Force, 200 N. 3 position, 24 Vac. IP 43 for vertical mounting. Working temperature: -5 to 55 °C. Connection cable: 5.5 m. 6 m 24 V pluggable cabe pack, 1 pieces.

Products specifications

Attribute name Attribute value
Main
Hold-in power consumption in VA 0.7-0.7 VA AC
Product destination zone valves
Product or component type actuator
Targeted region Australia., Asia Pacific., Europe
Complementary
Force N 200 N
Stroke running time noload extend 98 s
Stroke running time 117 s
[Us] rated supply voltage 24 V AC
Control type automatic reset
Stroke length 5.5-5.5 mm
Force lbf 45 lbf
Actuator linear
Environment
IP degree of protection IP43
Relative humidity 5-95 % non-condensing
Ambient air temperature for storage -25-65 °C
Ambient air temperature for operation -5-55 °C
Power loss return non-spring return
Actuator model MZ20
Control signal 3-point floating
Lead length 1.5 m
Connection valve coupling ring M30 x 1.5
Stroke auto calibration False
Actuator type electric
Actuator product series MZ20
Position indicator Stem position cut out on yoke
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12 cm
Package 1 Width 9.6 cm
Package 1 Length 8.2 cm
Package 1 Weight 260 g
