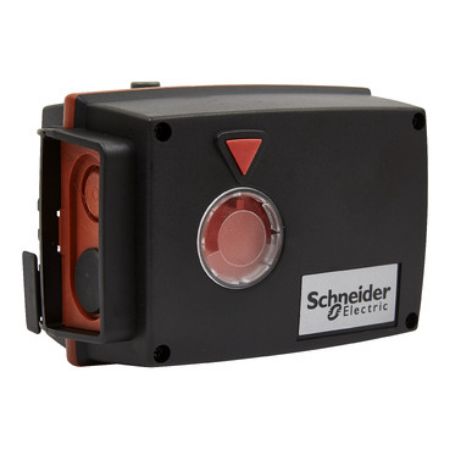

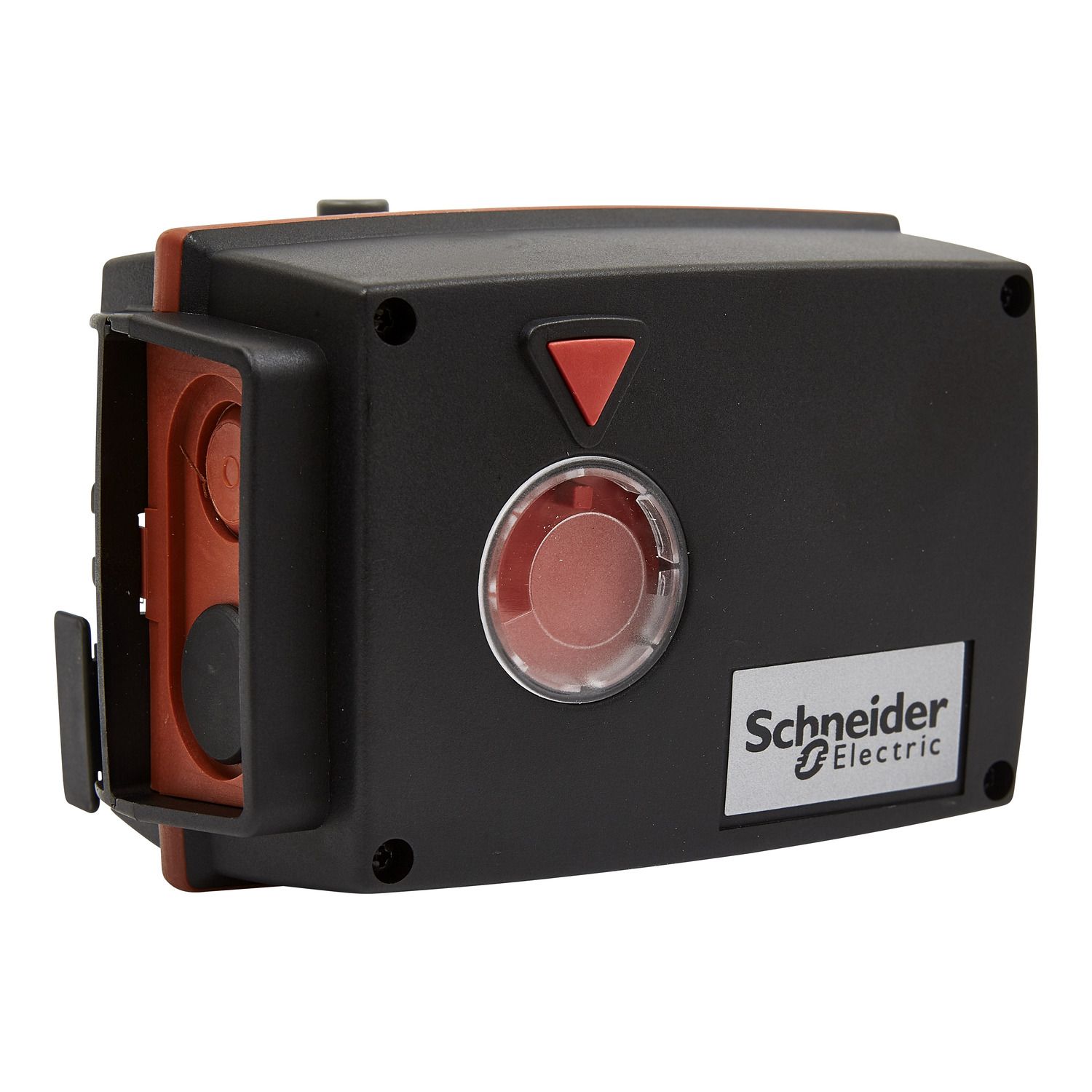

Picture of EM9 Shoe Valve Actuator, Modulating, Non-Spring Return, 24 Vac, 90°/180° Rotation, IP54
SKU:

8601110000

EM9 Shoe Valve Actuator, Modulating, Non-Spring Return, 24 Vac, 90°/180° Rotation, IP54

$1,123.32 INC GST
Available for Shipping : 12-Jan-2026
EM9 Shoe Valve Actuator, Modulating, Non-Spring Return, 24 Vac, 90°/180° Rotation, IP54
  • Position indication shows valve open/closed and mid position status
  • 0…10 Vdc, 0…10 Vdc, 0...20 mA, 4…20 mA Control signal
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
The EM9 is an electronic actuators for motorising VTRE rotary shoe valves. EM9 operates on 24 V and is controlled by selectable control signal. The running time can be programmed. The actuator can be operated manually and has a valve position indicator on the front of the unit. Power consumption: 3 VA. Modulating control signal: …1 Vdc, 2…1 Vdc, …2 mA or 4…2 mA. Working range 18°. Running time 12/18/24s, 24 Vac +/-1%. Torque: 15 Nm, IP 54 Protection class.

Products specifications

Attribute name Attribute value
Main
Hold-in power consumption in VA 3-3 VA AC
Switch function 2 SPDT
Material PA66 (polyamide 66) reinforced: housing
Stroke running time 75 s
IP degree of protection IP54
[Us] rated supply voltage 24 V AC
Product destination shoe valves
Control type electrically operated
Duty cycle 10 %
Product or component type actuator
Targeted region Australia., Asia Pacific., Europe
Actuator rotation 180 °
Analogue input range 0...20 mA DC, 0...10 V DC
Actuator rotary
Ambient air temperature for operation -15-55 °C
Tightening torque 15 N.m, 133 lb.in
Power loss return non-spring return
Control signal proportional/modulating
Actuator type electric
Actuator product series EM9, M9B
Position indicator green push stem with color markers
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.4 cm
Package 1 Width 14.4 cm
Package 1 Length 9 cm
Package 1 Weight 940 g
